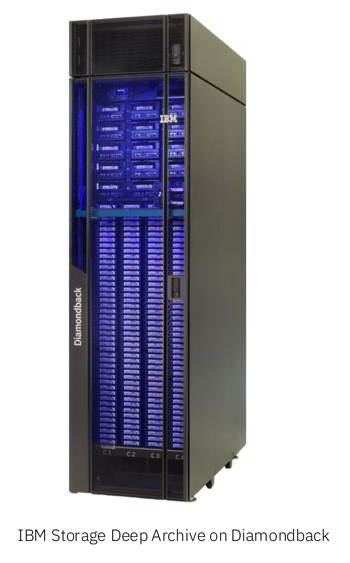

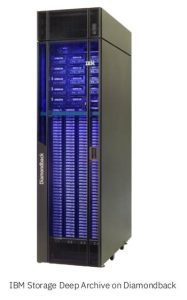

Availability of IBM Storage Deep Archive Standard Configuration on Diamondback Tape Library

IBM Corp. is announcing the IBM Storage Deep Archive standard configuration for the Diamondback Library.

The IBM Storage Archive standard configuration delivers up to 16.1TB/hour with up to 14 data access points/tape drives.

Key requirements:
Appropriate Diamondback Tape Library with IBM LTO-9 Serial Attached SCSI (SAS) tape drives attaching to feature number AK3B.

Planned availability date: 13 December 2024

Description
The IBM Storage Deep Archive Standard configuration is a game-changer in the realm of data storage, offering unparalleled data durability and performance. With its unique server redundancy feature, the system can withstand a single server failure without affecting data access. In the event of a server failure, the metadata remains intact on the non-failing node, and the system automatically manages the recovery process for minimal disruption.

The performance has been significantly boosted to 16.1TB/h, with up to 14 data access points/tape drives, enabling faster data retrieval and improved overall system efficiency. This solution is designed to cater to businesses seeking robust and efficient data storage, making it an ideal choice for those looking to enhance their data storage experience.

Product number
The following are newly announced features of the IBM System Storage 4883 machine type:

Publications
To access the IBM Publications Center Portal, go to the IBM Publications Center website.

The Publications Center is a WW central repository for IBM product publications and marketing material with a catalog of 70,000 items. Extensive search facilities are provided. A large number of publications are available online in various file formats, which can currently be downloaded.

Services:

IBM Consulting
IBM Consulting is the catalyst for business transformation. With deep industry expertise spanning strategy, experience design, technology, and operations, IBM Consulting has become the trusted partner to over 3,000 of the world’s most innovative and valuable companies. Our 150,000 consultants embrace an open way of working, bringing a diverse set of voices, experiences, and technologies, such as Hybrid Cloud and AI together to accelerate business transformation. Supported by IBM Garage, IBM Consulting’s co-creation method can bring speed and scale to innovation with an enduring ecosystem of technology leaders to deliver solutions for some of the world’s most complex challenges. IBM Consulting collaborates closely, evaluates freely, and applies breakthrough innovations that drive sustainable change and reinvents how business gets things done. To find out more, see the IBM Consulting website.

IBM Technology Lifecycle Services (TLS)
IBM TLS helps organizations protect their IT investment with support and services for their hybrid cloud and enterprise IT data centers across the product lifecycle. Deep expertise in IBM Systems, enterprise networking and third-party vendors, streamlined processes and advanced technologies such as AI, enable organizations to consistently maintain high availability for mission-critical workloads across the product lifecycle. Consultants have deep technical expertise, valuable tools, and successful methodologies which help organizations to solve business challenges, gain new skills, and apply best practices. For more information about the IBM infrastructure support and services, see the IBM Technology Lifecycle Services website.

IBM Technology Expert Labs
IBM Expert Labs is a professional services organization powered by an experienced team of product experts. This knowledgeable team brings deep technical expertise across software and infrastructure, including IBM Data and AI, Automation, Sustainability, Security, Software Defined Networking, IBM Power, IBM Storage, IBM Z and LinuxONE, IBM GDPS and IBM Cloud. We use proven methodologies, practices and patterns to help our partners develop complex solutions, achieve better business outcomes and drive client adoption of IBM software, servers and storage. For additional information, see the IBM Technology Expert Labs website.

IBM support
For installation and technical support information, see the IBM Support.

Additional support:

IBM Client Engineering for Systems
Client Engineering for Systems is a framework for accelerating digital transformation. It helps you generate innovative ideas and equips you with the practices, technologies, and expertise to turn those ideas into business value in weeks. When you work with Client Engineering for Systems, you bring pain points into focus. You empower your team to take manageable risks, adopt leading technologies, speed up solution development, and measure the value of everything you do. Client Engineering for Systems has experts and services to address a broad array of use cases, including capabilities for business transformation, hybrid cloud, analytics and AI, infrastructure systems, security, and more. Contact Client Engineering at sysgarage@ibm.com.

Technical information:

Diamondback physical specs

• Width (with covers): 600 mm (23.62 in.)
• Depth (with doors): 1225 mm (48.22 in.)
• Height: 42U or 2025 mm (79.72 in.)
• Height (with top rack): 48U or 2295 mm (90.35 in.)
• Empty weight (without top rack): 413 kg (908 lb)
• Empty weight (with top rack): 438 kg (964 lb)
• Fully loaded weight (without top rack): 785 kg (1,727 lb)
• Fully loaded weight (with top rack): 879 kg (1,933 lb)

Tape Cloud Node physical specs

• Width: 482 mm (18.97 in.)
• Depth: 751.47 mm (29.6 in.)
• Height: 42.8 mm (1.68 in.)
• Maximum weight: 22.51 kg (49.62 lb)

Hardware requirements:

Features:

• (#1554) – (Standard 19 inch Top Rack)
• (#1555) – (Top Rack Front Door)
• (#1556) – (Top Rack Rear Door)

are required for Machine Type 4883-L9A.

Terms and conditions:

Field-installable features : Yes

Model conversions : No

Machine installation
Installation is performed by IBM with Feature code (#B0SK) – ServicePac Machine Setup Support for Storage.

For Program Technical Support, search by Machine type number on the IBM Support Product Lifecycle website.

Note: The offerings in this announcement might not be available for purchase in all countries in your geographical area. Purchase availability can be affected by multiple factors that include support availability, service availability, and government regulations. The country information is not comprehensive. Consult with your IBM representative or IBM Business Partner for availability information in your area.

Graduated program license charges apply : No

Licensed machine code
IBM Machine Code is licensed for use by a client on the IBM machine for which it was provided by IBM under the terms and conditions of the IBM License Agreement for Machine Code, to enable the machine to function in accordance with its specifications, and only for the capacity authorized by IBM and acquired by the client. You can obtain the agreement from the Machine warranties and license information – Overview website.

Access to Machine Code updates is conditioned on entitlement and license validation in accordance with IBM policy and practice. IBM may verify entitlement through customer number, serial number, electronic restrictions, or any other means or methods employed by IBM in its discretion.

You may also obtain updated code by contacting your IBM representative. If the machine does not function as warranted and your problem can be resolved through your application of downloadable Machine Code, you are responsible for downloading and installing these designated Machine Code changes as IBM specifies. If you would prefer, you may request IBM to install downloadable Machine Code changes; however, you may be charged for that service.

Prices:
For all local charges, contact your local IBM representative or IBM Business Partner.

The following are newly announced features of the IBM System Storage 4883 machine type:

Regional availability:

• Europe: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, United Kingdom.
• Middle East and Africa: Democratic Republic of the Congo, Burundi, Kenya, Morocco, Rwanda, Republic of South Sudan, Somalia, United Republic of Tanzania, Uganda.
• AP: Australia, India, Indonesia, New Zealand, Republic of Korea, Taiwan.
• LA: Brazil.
• CAN: Anguilla, Antigua and Barbuda, Aruba, Bahamas, Barbados, Bermuda, Bonaire, Saint Eustatius and Saba, Canada, Cayman Islands, Curaçao, Dominica, Grenada, Guyana, Jamaica, Montserrat, Saint Kitts and Nevis, Saint Lucia, Saint Vincent and the Grenadines, Saint Maarten, Suriname, Trinidad and Tobago, Turks and Caicos Islands, and British Virgin Islands.
• US: American Samoa, Guam, Marshall Islands, Federated States of Micronesia, Northern Mariana Islands, Palau, Puerto Rico, United States, and US Virgin Islands.
• Japan
