Qnap QSW-IM3216-8S8T Industrial-Grade 16-Port 10GbE Switch Accelerates IT/OT Integration

Qnap Systems, Inc. has launched the QSW-IM3216-8S8T industrial-grade 16-port full 10GbE L2 managed switch.

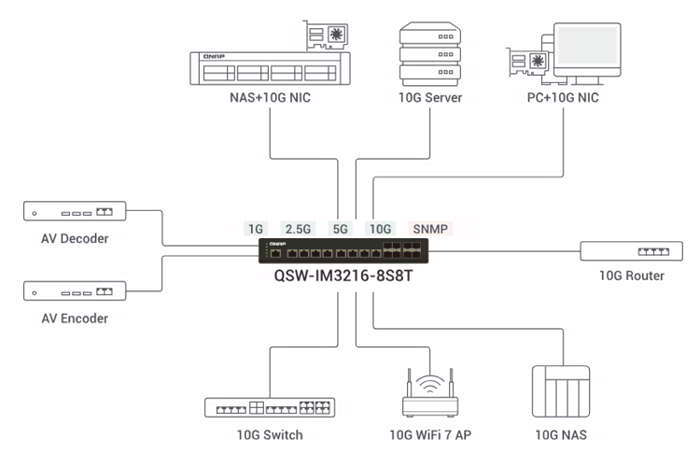

The rugged industrial case provides 8x10GbE SFP+ fiber and 8x10GbE RJ45 Multi-Gig ports, allowing flexible rackmount, desktop, or wall-mounted installations. It can connect NAS, SNMP, and AV-over-IP devices, making it for deployment in a range of environments to achieve factory automation, smart manufacturing, and meet the diverse needs of smart cities, automotive industry, and traffic monitoring.

“Targeting the Industry 5.0 market which implements AI smart manufacturing, the QSW-IM3216-8S8T assists users in building reliable and secure high-speed 10GbE network infrastructure within an economical budget,” said Jerry Deng, product manager. “We also recommend pairing it with the TS-i410X Industrial NAS to create a high-speed data transmission and storage solution for smart factories.“

QSW-IM3216-8S8T front and rear

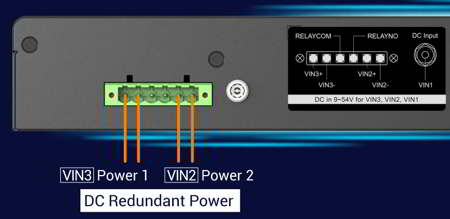

The QSW-IM3216-8S8T meets IP20 industrial protection standards, operates silently due to its fanless design, and features a full-cover heat sink capable of withstanding temperatures from -30°C to 65°C in airy environments. It supports DC 9-54V wide voltage power input with power redundancy and can also be powered via an adapter. Automatic power-off protection activates when the DC voltage is too low or too high for safety. In the event of power failure, a relay provides instant alerts for abnormal conditions, ensuring uninterrupted operation even in vibration-prone or unstable power factories and environments.

The QSW-IM3216-8S8T is equipped with 8x10GbE SFP+ fiber ports and 8x10GbE RJ45 ports, which support backward compatibility with 1G SFP or Multi-Gigabit NBASE-T (10/5/2.5/1G/100M) networks. The 10GbE RJ45 ports can be used with Cat 6a (or better) cabling to achieve high-speed connections.

Click to enlarge

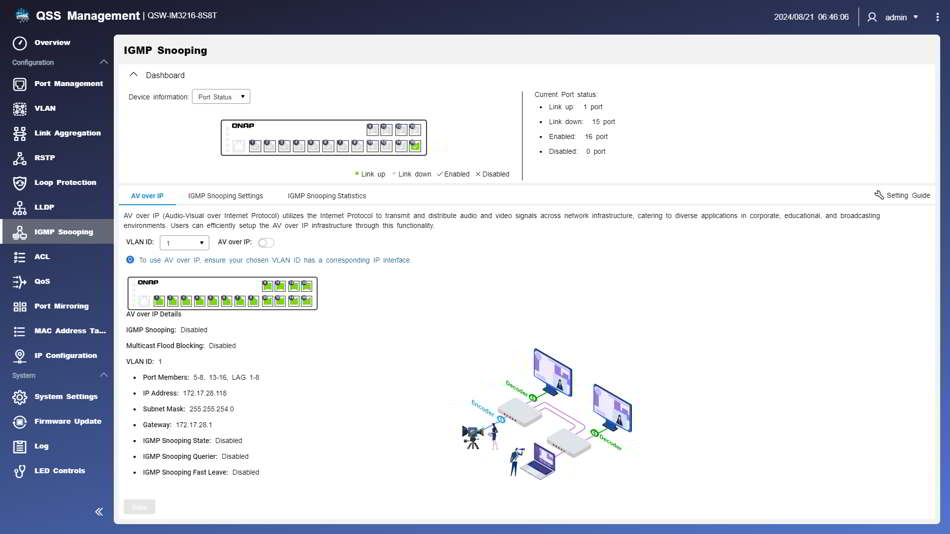

With the user-friendly Qnap Switch System (QSS) management software, users can manage networked 10GbE NAS, workstations, AV-over-IP endpoint devices, and various SNMP devices. The system enables IGMP snooping to direct traffic to devices within groups, connects multiple AV endpoint devices with the AV-over-IP wizard, reduces network congestion and unnecessary data transmission, thus enhancing performance and minimizing latency. It also supports SNMP for monitoring network devices, aiding network management and optimization, and provides LACP, VLAN, ACL, QoS, and Rapid Spanning Tree Protocol (RSTP) L2 management functionalities.

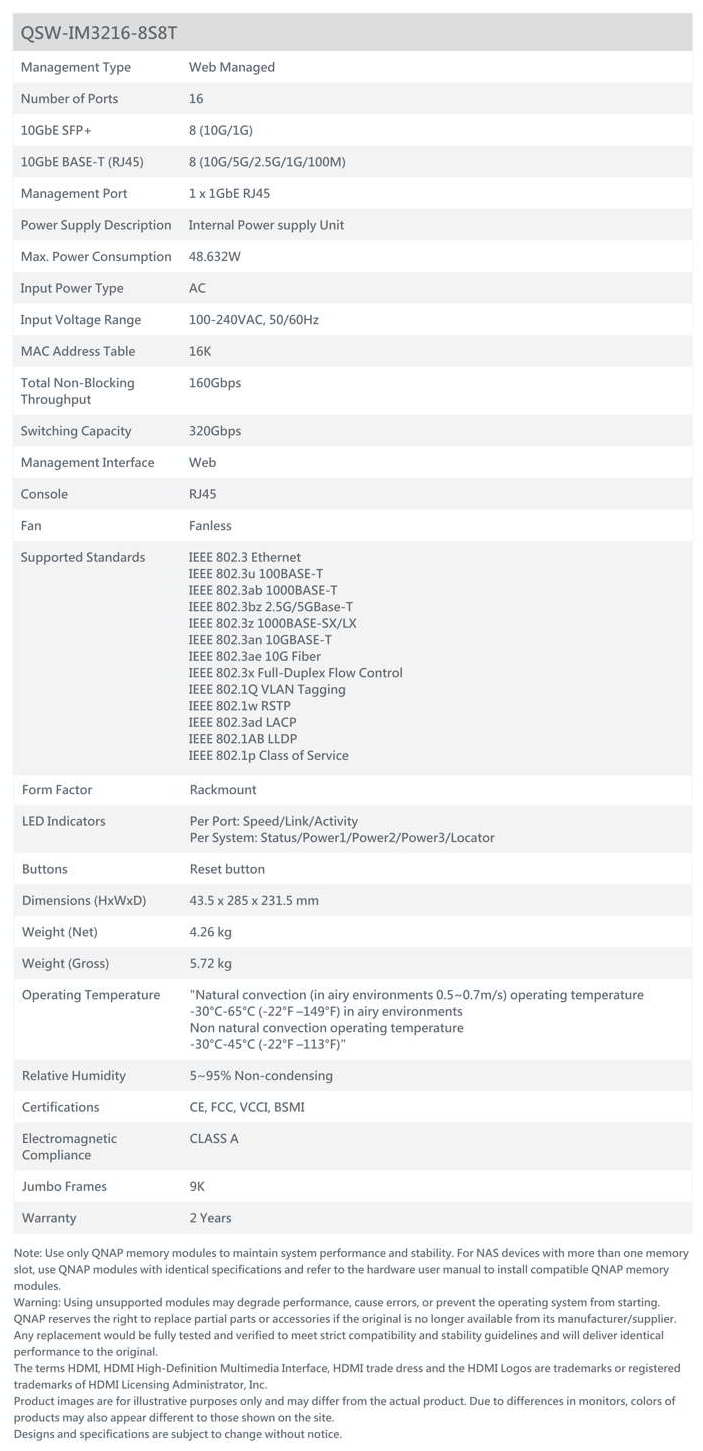

Key specs:

• QSW-IM3216-8S8T:
  1U rackmount design for flexible installation in rack, desktop, or wall-mounted configurations; 8x10GbE SFP+ fiber ports (backward compatible with 1G SFP); 8x10GBASE-T RJ45 ports (supporting NBASE-T, backward compatible with 5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-TX); backplane bandwidth of 320Gb; complies with IP20 standards, operational temperature of -30°C ~ 65°C in airy environments (0.5~0.7m/s ) or -30°C ~ 45°C in enclosed space, 9V-54V DC power input redundancy, circuit breaker; compliant with IEEE 802.3x standards, auto-negotiation.

Resource:
Qnap managed/unmanaged switches
