Icy Dock ToughArmor MB491SKL-1B Ruggedized 3.5-Inch Enclosure 1-Bay 2.5-Inch SAS/SATA HDD/SSD

Icy Dock launches the ToughArmor MB491SKL-1B, designed for integration into a standard 3.5” drive bay, accommodating a 2.5-inch SAS/SATA HDD/SSD.

Tailored for the demanding settings, this enclosure boasts a MIL-STD-810G certified build for the body and tray, along with an IPX5-rated water-resistant cover, for use in military, vehicular, and maritime applications, as well as autonomous and aviation technologies. Dual locks- a key lock plus a thumb screw – ensure double the security, guarding against both shocks and unauthorized access. With a removable caddy facilitating hot-swap capability, drive maintenance is effortless and uninterrupted, ensuring your mission-critical operations run without a hitch.

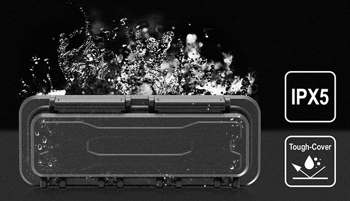

IPX5 water-resistant front coverDesigned for harsh, moisture-prone environments, the IPX5-rated front cover protects against water jets from any direction, ensuring data remains safe even when exposed to water. This feature is for applications like field deployments in wet conditions or industrial settings where liquid exposure is a common hazard.

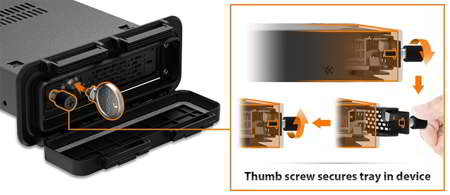

Double security lock system

The ToughArmor MB491SKL-1B incorporates a dual locking mechanism – a barrel lock and a thumb screw lock – to secure the drive in place. This system prevents accidental drive ejection due to vibrations or bumps, offering an extra layer of security in mobile or turbulent settings.

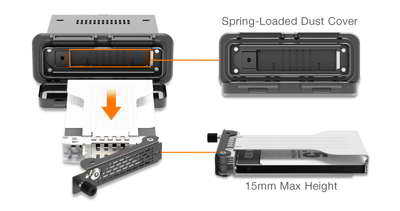

Streamlined hot-swap support

The full-metal removable drive caddy supports hassle-free hot-swapping, reducing downtime during hard drive failures – for time-sensitive projects. It accommodates 5 to 15mm height HDDs or SSDs, creating a versatile 2.5” hot swap bay for any standard SATA/SAS drive. Additionally, the Anti-Dust Flap prevents dust from entering the device when the caddy is not installed, maintaining system cleanliness and functionality.

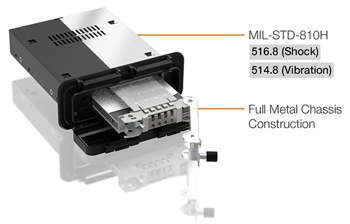

Military-grade durabilityBuilt with a rugged, all-metal chassis and drive caddy, the ToughArmor MB491SKL-1B 2.5-inch drive enclosure complies with military standards MIL-STD-810H 516.8 (Shock) and 514.8 (Vibration) and is built with the full-metal construction, making it suitable for military, aviation, and industrial applications where equipment must endure extreme conditions.

Packed with features

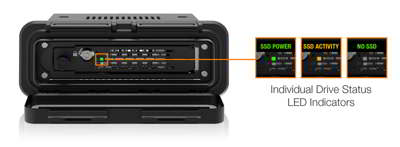

The ToughArmor MB491SKL-1B is equipped with a status LED that indicates power and access only when a drive is present, thanks to Active Power Technology.

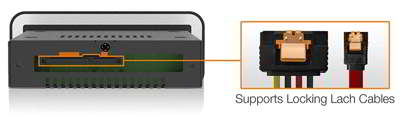

Enhanced connectivity is ensured with 7-pin SATA data and 15-pin SATA power cables, featuring locking latches to secure connections and prevent accidental disconnections.

Key features:

• IPX5 water-resistant cover
• Dual lock system – Metal barrel lock + thumb screw lock
• Fits 1x 5 to 15mm height 2.5” SAS/SATA HDD/SSD in external 3.5” drive bay
• Supports SATA 6Gb or SAS 3,0 12Gb (single channel)
• Removable, hot-swappable drive caddy for drive maintenance
• Rugged heavy duty metal chassis and drive caddy
• Anti-vibration technology – creates a safe environment for HDDs or SSDs
• Active Power Technology (APT) – LED only powers up if there is drive installed EMI grounding – protects hard drives from electrical damage
• Anti-dust flap prevents dust from entering when drive bay is empty
• Locking latch for both SATA 7 pin data port and SATA 15 pin power port
• Compliance with MIL-STD-810H method 516.8 (Shock) and 514.8 (Vibration)
