Embedded World: Virtium Industrial-Grade High-Capacity E1.S NVMe Up to 3.84TB SSD Platform With 5+ Year Availability

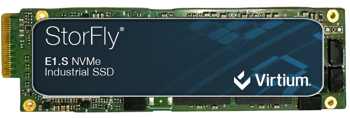

Virtium LLC introduces the StorFly E1.S NVMe SSD platform.

It is designed with the latest industrial-grade NAND flash to deliver performance across an extended temperature range of -40°C to +85°C, over the full range of capacity, and throughout the lifespan of the SSD.

The company has taken the E1.S form factor and transformed it into an ‘industrialized’ solution, integrating features designed to enhance industrial applications. These features encompass power and thermal efficiency algorithms, expanded capacity, extended endurance and an extended lifecycle.

The platform empowers design engineers with flexibility, allowing them to choose performance and the right capacity based on specific requirements. The platform supports PCIe Gen4 and is backward compatible to PCIe Gen3 for low power consumption. Initial capacity range of 240GB to 3.84TB ensures suitability for a variety of applications. Pseudo-SLC (pSLC) solutions can achieve 5 drive writes per day (5 DWPD) over 5 years. The firm will expand upon its E1.S offering with new products which are compatible with PCIe Gen5 and promise higher performance and expanded capacities to 16TB.

“Virtium’s latest introduction to the market, the StorFly E1.S NVMe SSDs, are engineered to maintain consistent performance across a broad temperature spectrum, from -40°C to +85°C. The E1.S form factor was initially developed to overcome the challenges posed by the M.2 NVMe form factor, such as capacity limitations, cooling issues, and lack of hot-plug support, particularly for enterprise data center uses. It quickly gained traction for use in rack servers and more recently industrial applications due to its advantageous features,” said Scott Phillips, VP, product marketing. The E1.S form factor is notable for its high storage capacity options (up to 16TB), a similar interconnect to M.2, an integrated heatsink with four mounting points, along with a product lifespan of over 5 years making it highly appealing for data center and industrial edge computing needs, as well as long lifecycle projects where requalifications are disruptive and costly.”

The StorFly E1.S SSD platform delivers flexible and optimized solutions for industrial applications, including industrial, edge, servers, telecom and networking, high-capacity data recorders, AI and media servers, in-flight servers, and avionics equipment.

Additional features include:

• Integrated vtGuard power-loss protection to protect both in-flight data as well as data-at-rest during an unexpected power loss.
• Integrated vtSecure data security supporting AES encryption and TCG Opal features with pre-boot authentication.
• Optional ruggedization enhancements include BGA underfill, conformal coating, 30 micro-inch gold connector, and full cover heatsink.

The E1.S SSDs are available and showcasing at the Embedded World on 4-11 September 2024,in Nuremberg, Germany.
