Qnap 12-Bay 2U TS-h1277AXU-RP and 16-Bay 3U TS-h1677AXU-RP Rackmount Enterprise ZFS NAS with AMD Ryzen 7000 Series Processors

Qnap Systems, Inc. unveiled the high-capacity TS-hx77AXU-RP ZFS NAS series, including 12-bay TS-h1277AXU-RP and 16-bay TS-h1677AXU-RP rackmount models powered by AMD Ryzen 7000 Series processors based on the AMD socket AM5 platform.

By integrating robust hardware and diverse I/O including DDR5 RAM, M.2 PCIe Gen 5, PCIe Gen 4 slots, and redundant power supplies, the TS-hx77AXU-RP series unleashes enterprise-level performance and delivers high bandwidth, future proof expandability, and reliability for performance-demanding tier-2 storage, virtualization, 4K video editing, and petabyte-level storage applications.

“The whole new TS-hx77AXU-RP series ZFS NAS provides enterprises with superb performance and large storage capacity to tackle business-critical workloads and storage-demanding applications. The AMD Ryzen 7000 Series multi-core processors further unlocks the key performance of DDR5 and M.2 PCIe Gen 5,” said Alex Shih, product manager. “Paired with the ZFS file system that’s most suited for business applications, the TS-hx77AXU-RP series stands out as the top choice for storage solutions that require uncompromising data integrity.”

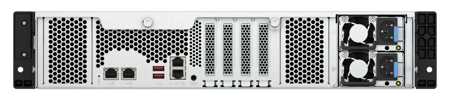

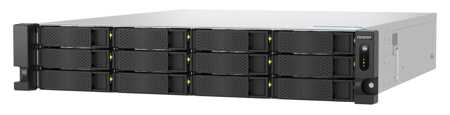

TS-h1277AXU-RP NAS front and rear

The 2U rackmount TS-h1277AXU-RP provides 12×3.5-inch HDD/2.5-inch SSD SATA drive bays for large capacity; the 3U rackmount TS-h1677AXU-RP provides 16×3.5-inch HDD/2.5-inch SSD SATA drive bays.

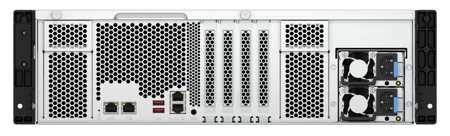

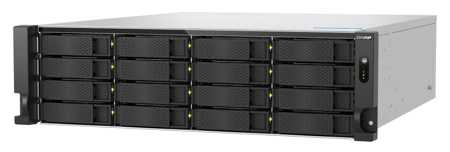

TS-h1677AXU-RP NAS front and rear

The TS-h1277AXU-RP and TS-h1677AXU-RP features AMD Ryzen 7000 Series 6-core and 8-core processors respectively, along with built-in AMD Radeon Graphics that accelerates video processing and graphical computing, and supports up to 128GB performance and low power consumption DDR5 RAM (ECC RAM is also supported) for multitasking workloads.

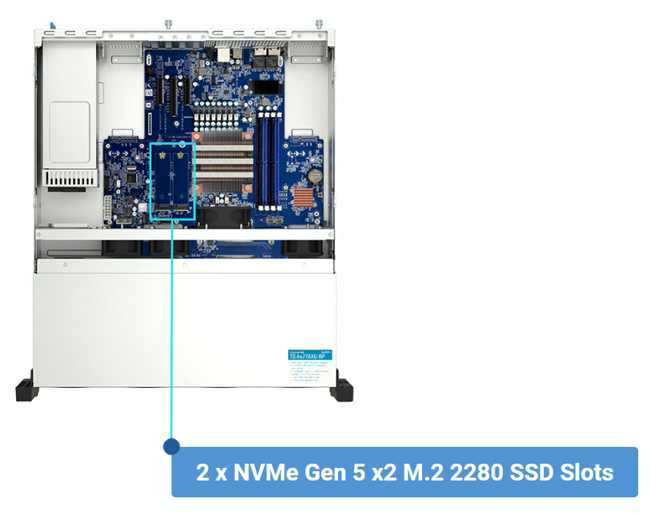

Two M.2 PCIe Gen 5 slots (compatible with PCIe Gen 4 and PCIe Gen 3) allow for installing M.2 NVMe SSDs for cache acceleration. 2x2.5GbE and 2x10GBASE-T ports deliver large bandwidth for optimizing virtualization, large multimedia file transfer, and high-speed data backup. 3xPCIe Gen 4 expansion slots allow installing various expansion cards, including 25GbE network cards for high-speed networking, QM2 cards for adding more M.2 SSD slots, FC cards for providing SAN storage, and storage expansion cards for connecting up to 8x24-bay TL-R2400PES-RP PCIe JBOD units for petabyte-level storage.

Click to enlarge

Running the QuTS hero OS, the TS-hx77AXU-RP series uses the ZFS file system that prioritizes data integrity with features like Self-healing and WORM. It also supports up to 65,536 snapshots, and inline data de-duple for maximizing storage efficiency with faster data transfer for data-intensive applications like virtualization. Businesses can deploy a zero RPO DR plan by leveraging real-time SnapSync that achieves real-time data synchronization between 2 NAS.

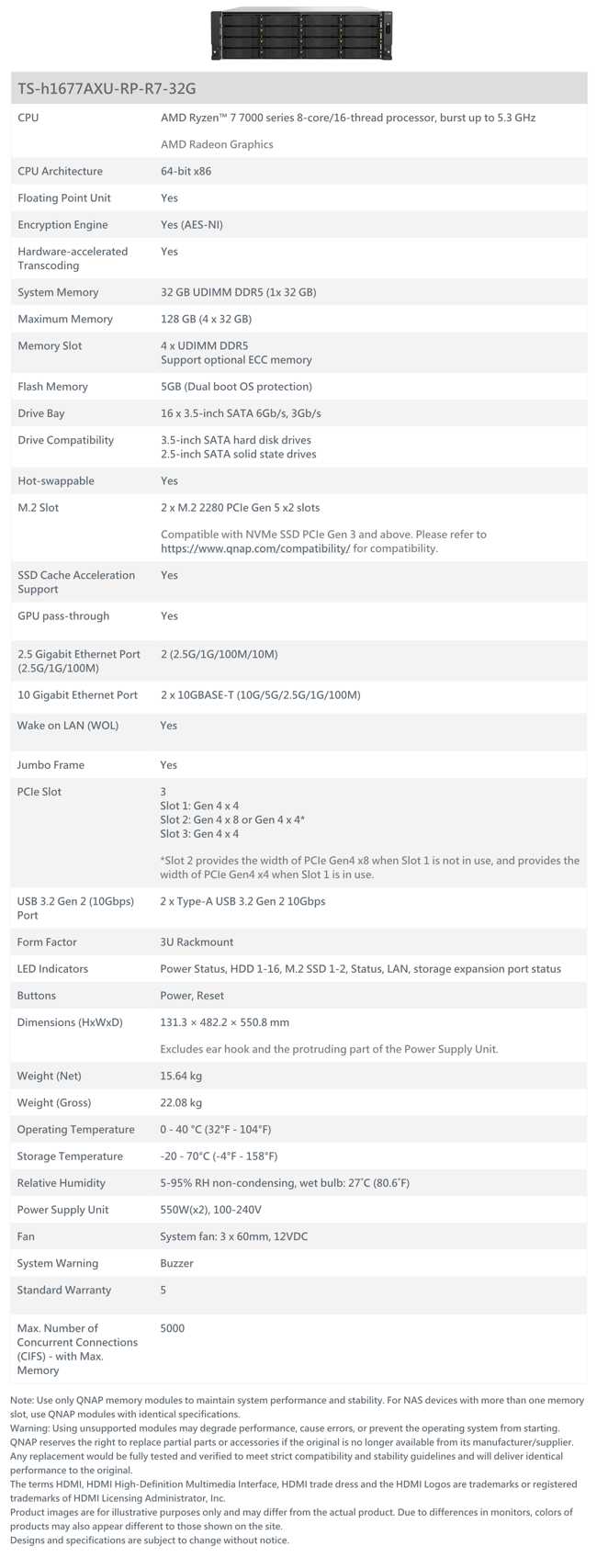

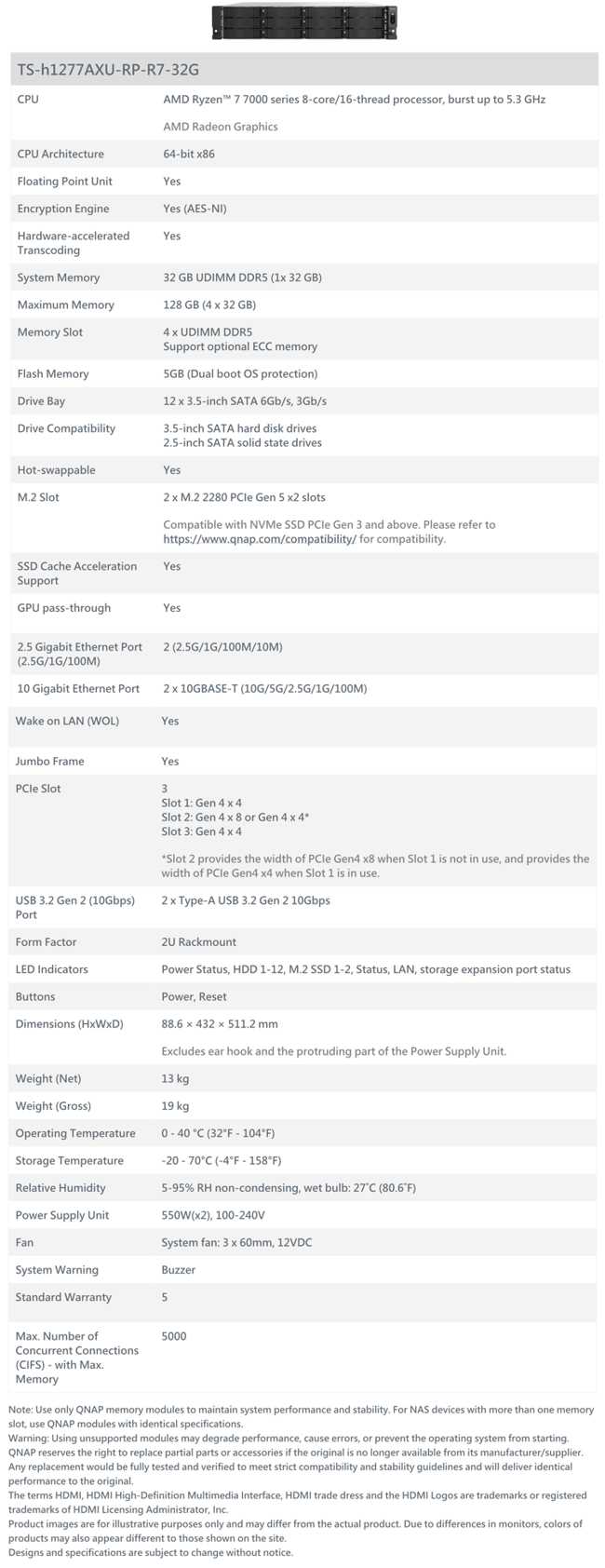

Key specs:

TS-h1277AXU-RP-R5-16G: 2U rackmount, 12×3.5-inch HDD/2.5-inch SSD SATA drive bays, AMD Ryzen 5 7000 Series 6-core/12-thread processor (up to 5.1GHz), 16GB DDR5 non-ECC RAM (ECC RAM also supported)
TS-h1277AXU-RP-R7-32G: 2U rackmount, 12×3.5-inch SATA HDD/2.5-inch SSD SATA drive bays, AMD Ryzen 7 7000 Series 8-core/16-thread processor (up to 5.3GHz), 32GB DDR5 non-ECC RAM (ECC RAM also supported)
TS-h1677AXU-RP-R7-32G: 3U rackmount, 16×3.5-inch SATA HDD/2.5-inch SSD SATA drive bays, AMD Ryzen 7 7000 Series 8-core/16-thread processor (up to 5.3GHz), 32GB DDR5 non-ECC RAM (ECC RAM also supported)

DDR5 memory up to 128GB (4x32GB), 2×2.5GbE RJ45 ports, 2x10GBASE-T ports, 2xM.2 2280 PCIe Gen 5 slots, 3xPCIe Gen 4 expansion slots, 2xUSB 3.2 Gen 2 (10Gb/s) Type-A ports, 2xredundant power supplies

Click to enlarge
