Raidon iR2321 SATA RAID Internal RAID Storage 3-Bay 2.5-Inch with CD-ROM Drive Form Factor

With 2x6Gb SATA ports, support to RAID-0 and -1, and integrated JBOD in-line SSD hot-swappable extractor

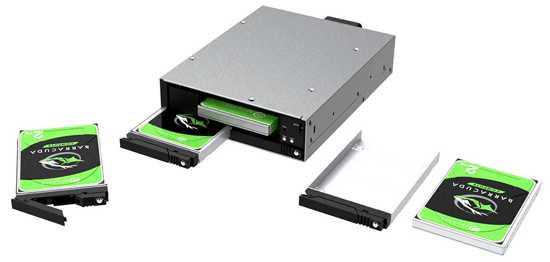

Raidon Technology, Inc. announced the iR2321 internal RAID storage with a form factor equivalent to a CD-ROM drive.

Raidon Ir2321 1

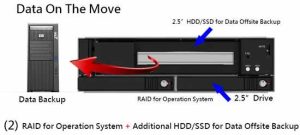

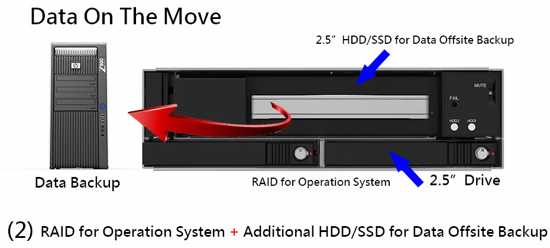

It presents an approach to storage by supporting a RAID-1 configuration involving 2x2.5” SATA SSDs. This setup ensures continuous operation by designating one SSD as the primary boot disk and providing real-time backup capabilities. In addition, the iR2321 houses JBOD In-line SSD Extractor, which serves as a dedicated space for data backup. This makes it a flexible and reliable solution for optimizing storage and backup processes.

Raidon Ir2321 2

Features and benefits:

  • Integrated JBOD in-line SSD hot-swappable extractor: This feature allows for flexible data management with hot-swapping capabilities.

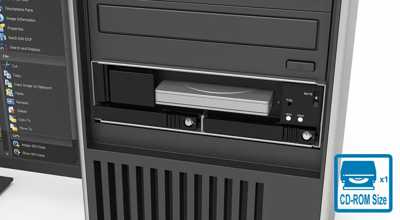

  • CD-ROM drive equivalent form factor: The device showcases a design, fitting compactly into a single CD-ROM bay.
  • Support for 2.5″ SATA HDDs or SSDs: Ensures compatibility with a range of storage devices for versatility in usage.

Raidon Ir2321 3

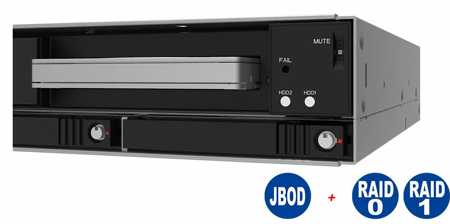

  • 2 RAID modes support: Provides RAID-1 and -0 configuration options.
  • Extensive storage configuration with independent JBOD in-line SSD Extractor: This feature increases flexibility and control over storage and management.

Click to enlarge

Raidon Ir2321 4

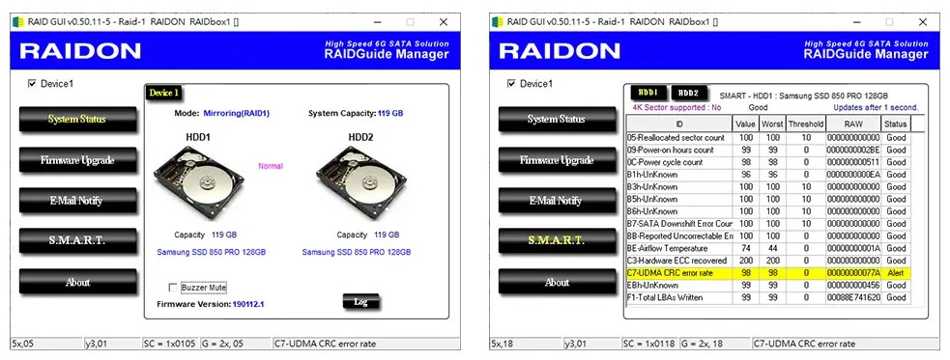

  • Statusguard GUI and drive S.M.A.R.T monitoring (Windows only).
  • Hot-swappable and plug-and-play: Facilitates easy replacement and upgrades of drives without system interruption.
  • Key lock feature: Provides an additional layer of security to protect the drives.

Raidon Ir2321 6

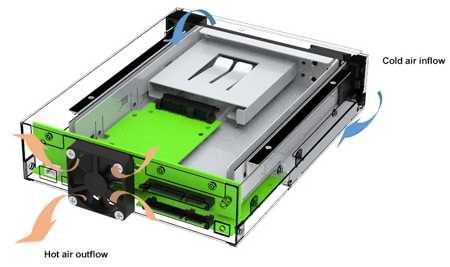

  • Efficient heat dissipation with silent fan: Ensures the device runs while minimizing noise.
  • LED light indicator for drive monitoring: Allows for quick and easy monitoring of drive status.

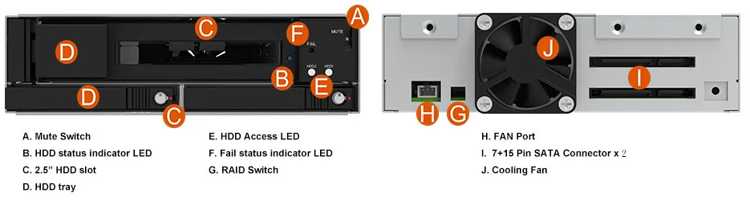

  • Easy access RAID mode switch on back panel: Facilitates simple and convenient switching between RAID modes.
  • Durable metal construction: Offers a robust and resilient build for long-lasting performance.

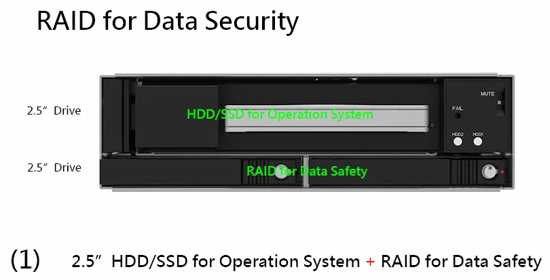

Applications: Raidon Ir2321 7

The iR2321, with its features and robust construction, can find application in variety of scenarios:

  • SMBs: For businesses with growing data storage needs, it offers an efficient and compact solution for backup and redundancy.
  • Workstation users: Professionals in data-intensive fields like graphic design, video editing, or 3D modeling could benefit from the speed and reliability of the product’s RAID configurations.
  • IT infrastructure: It can serve as a key component in servers, data centers, and other IT environments that require high availability and data integrity.
  • Educational institutes and research facilities: The device can be used for storing and managing large amounts of research data, providing both speed and redundancy.

Raidon Ir2321 8

  • Home use: Tech-savvy home users or home office setups would find the iR2321 useful for managing personal data, media libraries, or as a part of a home server.
  • CCTV and surveillance systems: The device’s large storage capacity and RAID functionalities make it for use in CCTV and other surveillance systems that require constant data recording and backup.
  • Healthcare facilities: Medical institutions with the need to store large volumes of patient data, including imaging data like MRIs and CT scans, could make use of the device.
  • Audio/Video production houses: The device could be used to store large files, edit videos in real time, and ensure that no data is lost in the event of a drive failure.

Raidon Ir2321 9

Model No

iR2321

Interfaces

2x6Gb SATA ports

Compatible drives

3×2.5″ SATA HDD/SSD

Storage level

RAID 0/1 + independent volume( 2.5″ SATA HDD/SSD )

System monitoring

Fan failure / overheat

OSs

Windows, Linux

Cooling system

4cm low noise fan

Dimension and weight

146(W)x 42(H) x 198(L) mm

Package accessories

iR2321
SATA cable x 2
Accessory kit-for tray
Accessory kit-for case
Quick installation guide
