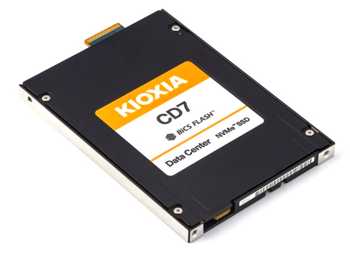

Kioxia NVMe PCIe 5.0 CD7 E3.S Up to 7,680GB EDSFF Data Center SSDs for HPE Systems

Kioxia America, Inc. announced that its lineup of CD7 Series Enterprise and Datacenter Standard Form Factor (EDSFF) E3.S NVMe SSDs are first to ship ⁽¹⁾ on servers and storage from Hewlett Packard Enterprise (HPE).

The industry’s first ⁽²⁾ EDSFF drives designed with PCIe 5.0 technology, the CD7 E3.S SSDs increase flash storage density per drive for optimized power efficiency and rack consolidation ⁽²⁾. HPE ProLiant Gen11 servers, Alletra 4000 data storage servers and the Synergy 480 Gen11 Compute Module are enabled with the PCIe 5.0 interface, enabling up to 2x the performance over PCIe 4.0, and come with optionally equipped EDSFF E3.S drive bays.

As a natural evolution of the 2.5-inch form factor ⁽³⁾, EDSFF E3.S is designed for the needs of high performance flash storage. E3.S enables more dense, efficient deployments in the same rack unit compared to 2.5-inch drives, while improving cooling and thermal characteristics and raising capacities by up to 1.5–2x.

“HPE is pleased to work with Kioxia to offer new CD7 Series EDSFF E3 SSDs to our customers, bringing high performance to our latest generation server and storage product lines,” said Jim Jackson, EVPt and CMO, HPE. “Together, the two companies are focused on continuing to innovate and deliver solutions that improve application performance and efficiency benefits, while lowering TCO.”

Available in capacities from 1,920 – 7,680GB, CD7 Series data center-class NVMe 1.4 SSDs conform to the EDSFF E3.S spec and feature read-intensive 1 DWPD ⁽⁵⁾ endurance.

“At Kioxia, we are committed to working closely with HPE to deliver greater performance, reliability and value through our SSD product portfolio,” said Neville Ichhaporia, SVP and GM, SSD business unit, Kioxia America. “EDSFF and PCIe 5.0 technologies are transforming the way storage is deployed, and our CD7 Series SSDs are the first to deliver these technologies on HPE’s next-generation systems.”

Base model number	KCD71RJE7T68	KCD71RJE3T84	KCD71RJE1T92
SIE model number	KCD7XRJE7T68	KCD7XRJE3T84	KCD7XRJE1T92
Capacity	7,680GB	3,840GB	1,920GB
Basic specs
lnterface	Designed to PCIe 5.0, NVMe 1.4
Maximum interface speed	128GT/s (Gen5 x4)
Flash memory type	BiCS Flash TLC
Performance (up to)
Sustained 128KB sequential read	6,250MB/s	6,450MB/s
Sustained 128KB sequential write	5,600MB/s	3,200MB/s	3,600MB/s
Sustained 4KB random read	1,030,000 IO/s	1,050,000 IO/s
Sustained 4KB random write	175,000 IO/s	178,000 IO/s	180,000 IO/s
Power requirements
Supply voltage	3.3V ± 15 %, 12V ± 10 %
Power consumption (active)	19W typ.	13W typ.
Power consumption (ready)	5W typ.
Reliability
MTTF	2,500,000 hours
Warranty	5 years
DWPD	1 DWPD
Dimensions
Height	7.5mm + 0.2, – 0.5mm
Width	76mm ± 0.25mm
Length	112.75mm ± 0.4mm
Weight	120g max
Environmental
Temperature (operating)	0°C to 70°C
Temperature (non-operating)	-40°C to 80°C
Humidity (operating)	5% R.H. to 95% R.H.
Vibration (operating)	21.27m/s² { 2.17G } ( peak, 5 to 800Hz )
Shock (operating)	9.8km/s² { 1,000G } ( 0.5ms )

⁽¹⁾ As of May 16, 2023, based on publicly available information
⁽²⁾ As of October 25, 2021, based on industry survey of publicly available information
⁽³⁾ Compared to 2.5-inch form factor SSDs.
⁽⁴⁾ 2.5-inch indicates the form factor of the SSD and not its physical size.
⁽⁵⁾ DWPD: Drive Write(s) Per Day. One full drive write per day means the drive can be written and re-written to full capacity once a day every day under the specified workload for the specified lifetime. Actual results may vary due to system configuration, usage and other factors.
