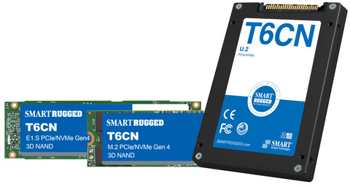

Smart Modular T6CN PCIe Gen 4.0 NVMe v1.4 Ruggedized SSDs in M.2 2280, E1.S and U.2 Form Factors

Smart Modular Technologies, Inc., a division of SGH, announces the introduction of its T6CN family of PCIe NVMe SSD products which is part of the rugged portfolio.

T6CN SSDs are designed to fit between high-performance datacenter SSDs and secure, ruggedized SSDs for military, industrial, and telecom applications. Competitively priced, the T6CN is available in M.2 2280, E1.S and U.2 form factors. All of which provide compatibility with PCIe Gen 4.0 NVMe technology, delivering faster read, write, data transfer and operating speeds compared to current SSD technology.

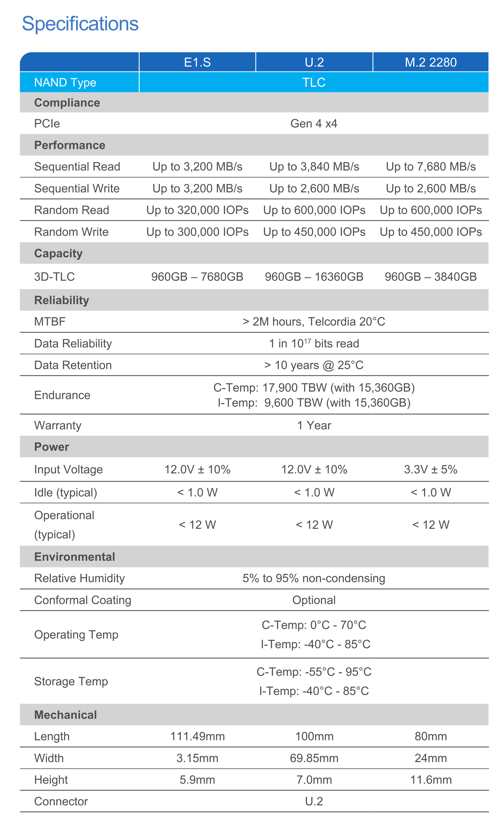

The SSDs capacity ranges from 960 to 3,840GB for the M.2, 960 to 7,680GB for the E1.S, and 960 to 16,360GB for the U.2 version. T6CN offers speeds up to 3,500MB/s sequential read and 3,200MB/s sequential write and is compliant with NVMe v1.4 specs. Gen 4.0 based technology runs exponentially faster than the speed of SATA-3I.

Mike Guzzo, director, rugged product line, explains the benefits of these products, saying: “The T6CN broadens our ruggedized SSD portfolio by adding a more commercially focused Gen 4.0 PCIe solution, coupled with next generation NAND Flash for larger capacity applications. These technology enhancements help enable system designers to get higher performance and capacity for their customer’s evolving system needs.”

The T6CN SSD family is available in commercial and industrial temperatures. The SSDs go through 100% burn-in testing to simulate extreme temperature gradient conditions so that defective drives are exposed and eliminated. In addition, the T6CN SSDs feature advanced low-density parity check (LDPC) error correction and S.M.A.R.T. support. The U.2 and E1.S versions also feature Power Failure Protection (pFail), which safeguards the integrity and functionality of the data in the event of sudden power loss.
