Atto 64Gb Gen 7 FC PCIe 4 HBAs with Support of 6.4GB/s per Channel Data Throughput

In low-profile single and dual-port versions, and including 2nd Gen FC-NVMe standard

Atto Technology, Inc. announced the availability of 64Gb Gen 7 FC HBA products.

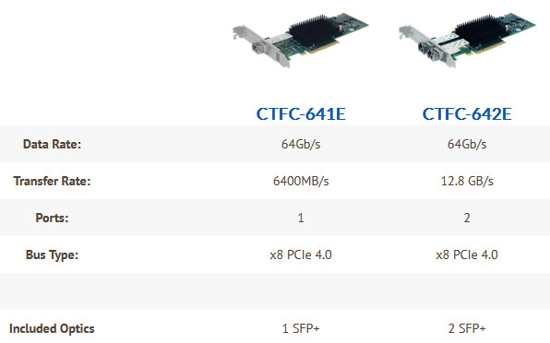

Atto Celerity Fc 64gbs Gen 7 Fibre Channel Hbas 4 2302

The introduction of these adapters affirms the company’s commitment to providing the latest high-performance FC technology to markets WW.

The Celerity 64Gb Gen 7 PCIe 4.0 HBAs are available in low-profile single- and dual-port versions. They support 6,400MB/s per channel data throughput with 12.8GB/s throughput per port in full-duplex mode.

These additions to the Celerity FC HBA portfolio will enable companies to capitalize on their existing SAN infrastructure and address the growing need for high-performing, scalable and secure storage to support data growth in applications that include real-time 8K video editing, HPC, data lake warehousing, server virtualization, AI, and real-time transaction processing.

There is immense pressure for data centers to meet very high performance guarantees on limited budgets,” said Tim Klein, president and CEO. “With our 64Gb Gen 7 Celerity HBAs, an existing FC SAN can be upgraded to maximize performance over a long period of time.

Celerity Gen 7 FC HBAs include the 2nd Gen FC-NVMe standard, and feature improvements in latency and security, automatic buffer credit recovery, and VM awareness.

The increase in bandwidth facilitates improved data access capabilities and IO/s, accelerating data analysis for faster real-time insights, allowing quicker access to shared data, and the utilization of NVMe drives. Data-intensive applications like cloud, AI development, ML, and 4K and 8K video will see noticeable improvements.

The company’s Gen 7 Celerity 64Gb HBAs are available from distributors or via the firm’s webstore.

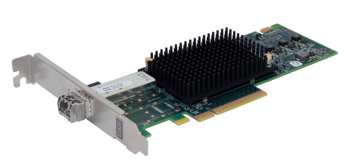

Celerity FC-641E single-channel 64Gb Gen 7 FC HBA specs:
Atto Celerity Fc 641e 2302
  • 6,400MB/s throughput per port in full-duplex mode
  • Includes one 64Gb LC SFP+ transceiver (multimode fiber MMF)
  • x8 PCI Express 3.0 (PCIe 4.0) host connection
  • Backward compatible with 32Gb and 16Gb FC products

  • Supports NPIV and Virtual Fabric

  • Includes high- and low-profile form factor bracket

  • 3-year standard product warranty

  • Trunking (Port Aggregation) with Brocade switches

  • Silicon Root of Trust for authenticating firmware

  • Fast Path architecture for latency improvement

  • All finished good 641E SKUs include: Celerity FC adapter, (1) LC SFP+ optical module, low profile bracket, corporate brochure, getting started guide.

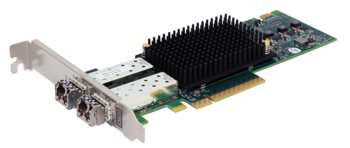

Celerity FC-642E dual-channel 64Gb Gen 7 FC HBA specs:

Atto Celerity Fc 642e 2 2302

  • 12.8Gb/s throughput per port in full-duplex mode
  • Includes two 64Gb LC SFP+ transceivers (multimode fiber MMF)

  • x8 PCI Express 4.0 (PCIe 3.0) host connection

  • Backward compatible with 32Gb and 16Gb FC products

  • Supports NPIV and Virtual Fabric

  • Includes high- and low-profile form factor bracket

  • 3-year standard product warranty

  • Trunking (Port Aggregation) with Brocade switches

  • Silicon Root of Trust for authenticating firmware

  • Fast Path architecture for latency improvement

  • All finished good 642E SKUs include: Celerity FC adapter, (2) LC SFP+ optical modules, full height bracket, corporate brochure, getting started guide.
