Exascend 2.5-Inch SI3 and SE3 Series Up to 8TB Industrial 6Gb SATA SSDs

Exascend, Inc. announced 8TB capacities for its SI3 and SE3 series 2.5” SSDs, up from 4TB previously.

The upgrade extends the range of storage in these 2 product lines that features 2.5”, M.2 and – with SI3 – mSATA form factors.

SATA performance for industrial and enterprise use
The SI3 series is an industrial SATA-3 line, which features industrial-grade hardware with wide temperature support, allowing it to withstand rugged conditions and temperatures from -40°C to 85°C. It is currently deployed in data-intensive, high-reliability transportation data logging, surveillance, edge server, aerospace, and ADAS applications. The SE3, on the other hand, is optimized for enterprise workloads and features high sustained write performance for constant operation. With up to 550MB/s sustained read and 535MB/s sustained write, both product lines push the limits of the 6Gb SATA interface even under sustained load.

Optional hardware power loss protection available
The SI3 and SE3 lines are customizable with optional hardware power loss protection for extra safeguards vs. power issues in critical applications. The company’s customization services allow the SI3 and SE3 series to be optimized according to clients’ needs. What’s more, the SSDs feature a range of flash management technologies, including global wear-leveling, SuperCruise, AES-256, TCG Opal, Power Tuning, Unlimited Over-Provisioning.

With latencies of 120µs/80µs, high QoS of 200µ/300µ (@99.99), and 98,000/90,000 4K random IO/s for RW performance, and the optional hardware power loss protection service available, the SI3 and SE3 series are a solution for industrial and enterprise applications that demand reliable ‘always-on’ operation and high throughput data processing capabilities.

The SI3 and SE3 series SATA-3 2.5” 8 TB SSDs are available for sampling and order through the company and its authorized distributors WW.

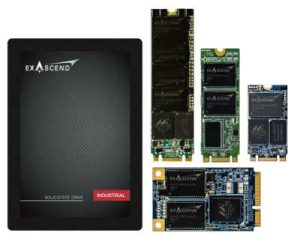

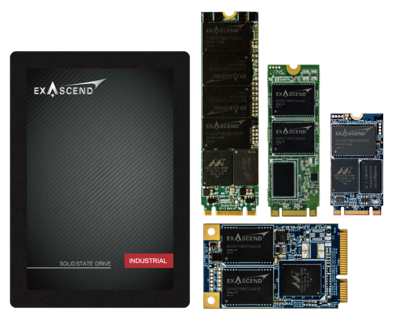

SI3 Series SSD specs

SI3 Series SSD specs
Edition	SI3
Physical information
Form factor	2.5″, M.2 (2280, 2260, 2242)
Interface	6Gb SATA
Capacity	120–7,680GB
Flash type	3D TLC
Input voltage	5V±5%; 3.3V±5%
Power consumption	Active <5W; Idle <0.9W
Performance
Maximum sequential read (MB/s)	550
Maximum sequential write (MB/s)	535
Max. 4K random read (IO/s)	85,000
Max. 4K random write (IO/s)	70,000
Reliability/endurance
Operational temperature	-40 °C to 85°C
Storage temperature	-45°C to 90°C
UBER	1 sector per 10^17 bits read
TBW (max.)	2,400
MTBF (hours)	2,000,000
Warranty (years)	3

M.2 2260 and 2242 form factors available upon request.

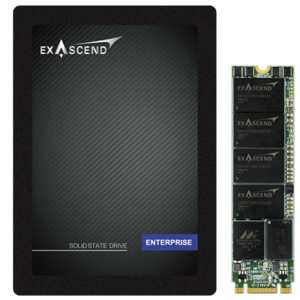

SE3 Series SSD specs

SE3 Series specs
Edition	Streaming	Boot	Pro	Max
Physical information
Form factor	M.2, 2.5″
Interface	6Gb SATA
Capacity	120–7680GB	240–480GB	480–1,920GB	240–960GB
Flash type	3D TLC
Input voltage	5V±5%; 3.3V±5%
Power consumption	Active <5W; Idle <0.5W
Performance
Maximum sequential read (MB/s)	550
Maximum sequential write (MB/s)	535
Max. 4K random read (IO/s)	95,000	80,000	95,000
Max. 4K random write (IO/s)	16,000	18,000	30,000	50,000
Latency (read/write)	120µs/80µs
QoS (read/write)	200µ/300µ (@99.99)
Reliability/endurance
Operational temperature	0°C to 70°C
Storage temperature	-45°C to 85°C
BER	1 sector per 10^17 bits read
DWPD (max.) JESD218	0.6	1	1.5	5
MTBF (hours)	2,000,000
Warranty (years)	5

Boot and Pro available upon request.
