Kingston Fury Renegade with Heatsink PCIe 4.0 NVMe M.2 Up to 4TB SSD for Gamers

Kingston Fury, the gaming division of Kingston Technology Company, Inc., added its Renegade SSD with heatsink, its 2nd-Gen PCIe 4.0 NVMe M.2 drive for console and PC gamers.

The Renegade SSD with heatsink maintains speed and temperature while delivering cutting-edge performance in high capacities using the latest Gen 4×4 controller.

By maximising the available bandwidth of PCIe 4.0, Renegade SSDs achieve speeds up to 7,300/7,000MB/s RW ⁽¹⁾ and up to 1,000,000 IO/s ⁽¹⁾ to deliver amazing consistency for a gaming experience. The drives are optimized to reduce game and application load times, stream and capture with ease and give your system an overall boost in responsiveness. Available in capacities up to 4TB ⁽²⁾, users can store an extensive library of their favorite games and media and still have space for the latest titles.

This offer two options for users both with speeds and capacities:

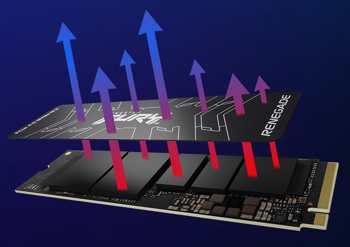

• Renegade SSD with low profile, graphene aluminium heat spreader keeps your drive cool during intense usage and brings performance to the tightest of spaces in gaming PCs and laptops.

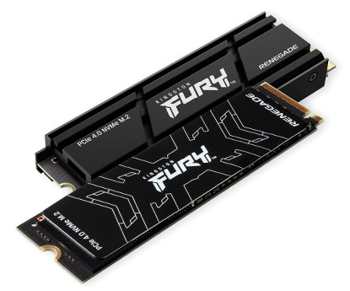

• Renegade SSD with heatsink, the ultimate in aesthetics with an additional layer of thermal dispersion, so when the game heats up, PS5 console stays cool.

“The design of the Kingston Fury Renegade SSD pushes the limits of PCIe Gen4 technology to provide users with high-performance storage to complement the latest CPUs and GPUs with unbound storage,” said Liny Cheliyan, manager EMEA Business, prosumer flash and SSD. “With the introduction of the optional heatsink model, users can meet the increasingly high standards of future gaming platforms with speed and thermal stability.”

Fury Renegade SSD family is available in 500GB, 1, 2 and 4TB capacities. It is backed by a limited 5-year warranty ⁽⁴⁾ and free technical support.

Renegade PCIe 4.0 NVMe M.2 SSD with heatsink features and specs:

• Level up with PCIe 4.0 NVMe: Dominate with Gen 4×4 speeds up to 7,300/7,000MB/s ⁽¹⁾ read/write and up to 1,000,000 IO/s ⁽¹⁾ performance.

• More space to play: Get all the latest titles and DLC available. Performance with capacities up to 4TB ⁽²⁾ to store your favorite games and media.

• PS5 Ready: Game-changing storage designed to maximize your play. Optional integrated aluminum heatsink model provides an additional layer of thermal dispersion to cool the drive and maintain peak performance.

• Form Factor: M.2 2280

• Interface: PCIe 4.0 x4 NVMe

• Capacities ⁽²⁾: 500GB, 1, 2, 4TB

• Controller: Phison E18

• NAND: 3D TLC

• Sequential RW:

• • 500GB – 7,300/3,900MB/s

  • 1TB – 7,300/6,000MB/s

  • 2TB – 7,300/7,000MB/s

  • 4TB – 7,300/7,000MB/s

• Random 4K RW ⁽¹⁾:

• • 500GB – up to 450,000/900,000 IO/s

  • 1TB – up to 900,000/1,000,000 IO/s

  • 2TB – up to 1,000,000/1,000,000 IO/s

  • 4TB – up to 1,000,000/1,000,000 IO/s

• Endurance (Total Bytes Written) ⁽³⁾:

• • 500GB – 500TB

  • 1TB – 1.0PB

  • 2TB – 2.0PB

  • 4TB – 4.0PB

• Power consumption:

• • 500GB – 5mW idle / 0.34W avg / 2.7W (max) read / 4.1W (max) write

  • 1TB – 5mW idle / 0.33W avg / 2.8W (max) read / 6.3W (max) write

  • 2TB – 5mW idle / 0.36W avg / 2.8W (max) read / 9.9W (max) write

  • 4TB – 5mW idle / 0.36W avg / 2.7W (max) read / 10.2W (max) write

• Storage Temperature: -40°C~85°C

• Operating Temperature: 0°C~70°C

• Dimensions:

Heat spreader:

• • 500GB-1TB – 80x22x 2.21mm

  • 2TB-4TB – 80x22x 3.5mm

Heatsink:

• 80×23.67×10.5mm

• Weight:

Heat spreader:

• • 500GB-1TB – 7g

  • 2TB-4TB – 9.7g

Heatsink:

• 500GB-1TB – 32.1g

• 2TB-4TB – 34.9g

• Vibration operating: 2.17G peak (7-800Hz)

• Vibration non-operating: 20G peak (20-1000Hz)

• MTBF: 1,800,000 hours

• Warranty/Support ⁽⁴⁾: Limited 5-year warranty with free technical support

This SSD is designed for use in desktop and notebook computer workloads and is not intended for server environments.

(1) Based on ‘out-of-box performance’ using a PCIe 4.0 motherboard. Speed may vary due to host hardware, software, and usage.
(2) Some of the listed capacity on a flash storage device is used for formatting and other functions and thus is not available for data storage. As such, the actual available capacity for data storage is less than what is listed on the products. For more information, go to Kingston’s Flash memory guide.
(3) Total Bytes Written (TBW) is derived from the JEDEC Client Workload (JESD219A).
(4) Limited warranty based on 5 years or ‘Percentage Used’ which can be found using the Kingston SSD Manager. For NVMe SSDs, a new unused product will show a ‘Percentage Used value of 0’, whereas a product that reaches its warranty limit will show a ‘Percentage Used value’ of greater than or equal to 100. See for details.
