Prodigy Technovations: PGY-SSM-EV SD/eMMC AC/DC Electrical Validation Tester

Prodigy Technovations Pvt. Ltd. introduces its SD, eMMC AC/DC Electrical Validation Tester (PGY-SSM-EV-Tester) for electrical characterization of SD card for UHS-I and eMMC for HS400 (eMMC5.1) spec.

This solution enables validation engineers to test the SD card and eMMC devices with a click for different operating modes and characterize 100s of electrical and timing specs saving validation time.

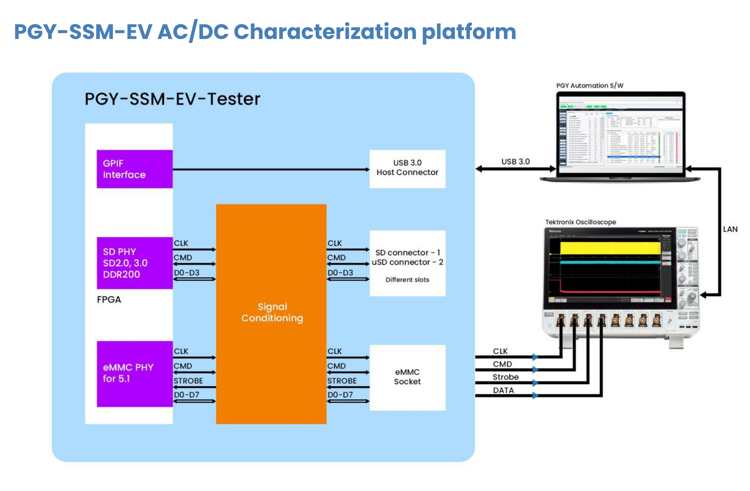

PGY-SSM-EV tester provides the flexibility to select an SD card, microSD card, or eMMC device and its operating modes for testing purposes. It allows the user to place these devices in different modes and send RW commands. PGY-SSM-EV-Tester software communicates with the oscilloscope to acquire the clock, command, strobe, and data signals over an Ethernet interface. It analyzes the oscilloscope-acquired data for AC and DC characteristics of SD cards and eMMC devices.

The tester makes 100s of measurement for SD card and eMMC devices and also checks for limits specified in the standards document. It allows the test engineer to write different test cases. It allows flexibility to vary the time delay between clock and command signal and validate the boundary specs.

Key features of PGY-SSM-EV tester SD and eMMC AC/DC electrical measurement solution

• Supports eMMC 4.41, 4.51, 5.0, 5.1 and SD card 2.0/3.0 (UHS-I) specs

• Supports host controller for eMMC and SD card and flexibility to place devices in operating modes

• Exerciser capability to write different test cases and inject the traffic to devices

• Controls the eMMC and SD card host controller and oscilloscope signal acquisition for measurement analysis

• Provides all AC/DC measurements and generates a detailed report

PGY-SSM-EV tester is orderable.

About Prodigy Technovations
It is a provider of protocol analysis and exerciser solutions for mainstream and emerging technologies such as PCIe, UFS4, eMMC, SD, SDIO, UHS-II, I3C, RFFE, and SPMI. It also provides Protocol Decode and PHY layer testing solutions on Test and Measurements equipment. The firm’s ongoing efforts include the  implementation of protocol Analysis solutions using the latest hardware technologies.
