Phison EPR3750 in M.2 2280 and EPR3760 in M.2 22110 Form Factor PCIe Gen4x4 Enterprise Class SSDs Up to 1.92TB

Phison Electronics Corp unveiled. 2 PCIe Gen4x4 Enterprise Class SSDs: the EPR3750 in M.2 2280 form factor and the EPR3760 in M.2 22110 form factor.

The EPR3750 and EPR3760 SSDs are backward compatible in PCIe Gen3 M.2 slots at faster speeds while offering performance enhancements when matched with PCIe Gen4 chipsets. Also, these SSDs provide a faster QoS command execution with enterprise SSD firmware. Workstation and server boot applications require consistent and predictable performance from storage. These firm’s SSDs are to use as boot drives in workstations, servers, and in NAS and RAID environments.

Key features of EPR3750 and EPR3760 SSDs include:

Controller – Company’s E18 PCIe Gen4x4 NVMe controller for data center applications, the E18DC.

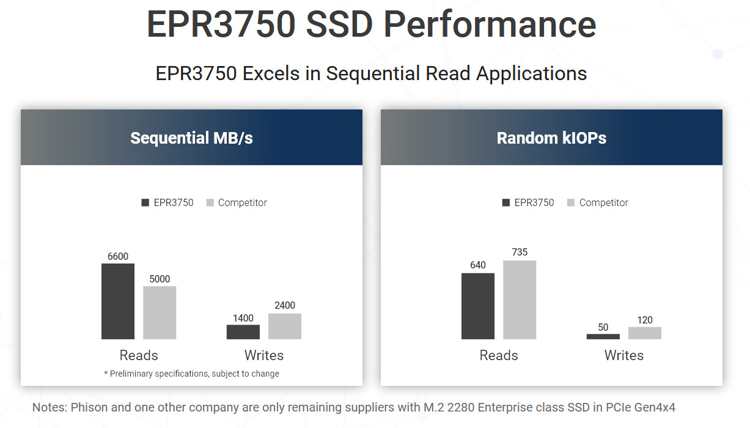

Customizable and faster – Similar to all of firm’s SSD product offerings, company customizes the EPR3750 and EPR3760 SSDs with customers’ brand name and logo on the drive and the company also make firmware changes to optimize the drive’s performance and power consumption for a range of applications. These SSDs feature performance enhancements when matched with PCIe Gen4 chipsets. The EPR3750 performance specs in PCIe Gen3 and PCIe Gen4 modes are shown below.

Performance Parameters	PCIe Gen4	PCIe Gen3
Sequential reads (MB/s)	6,600	3,370
Sequential writes (MB/s)	1,400	1,400
Random read IO/s	640,000	640,000
Random wrte IO/s	50,000	50,000

*Note: the EPR3750 1.92TB model was used to generate the performance numbers above

Faster QoS – The EPR3750 and EPR3760 SSDs provide a faster QoS command execution with enterprise SSD firmware that responds quickly to the host PC even while the SSD is attending to background operations.
Longer term product supply – As the E1.S form factor becomes more popular for enterprise SSDs, other SSD manufacturers may shift their engineering resources away from developing the M.2 form factor, leading to a decline in the number of SSD manufacturers for the 2280 and 22110 products. The EPR3750 and EPR3760 demonstrate the firm’s commitment to its customers by enhancing the M.2 2280 and 221110 form factors with the controller and NAND technologies.

“The installed base for PCIe Gen3 M.2 2280 and 22110 slots measures in the tens of millions of units. Phison’s commitment to supply enterprise class PCIe Gen4 SSDs in this form factor that are backward compatible in PCIe Gen3 slots will be valued by many end customers and businesses that need a reliable source of supply to upgrade their PCIe Gen3 Enterprise SSDs to Gen4,” said Don Jeanette, VP, SSD research, Trendfocus.

“Phison works closely with our valued partners and flash storage brands to customize the EPR3750 and EPR3760 SSDs, powered by Phison’s PCIe Gen4 E18DC controller, with features to equip their customers with advantages that will meet their demanding applications,” said Michael Wu, president and GM, Phison U.S. “Through our customizable SSD platforms that define advantages unique to each customer, our partners are able to scale their own successful businesses with their own brand.”

Availability:

The EPR3750 SSD is shipping to customers as of May 2022
The EPR3760 SSD will be shipping in the 2H22.
