Asustor: 2-Bay Lockerstor 2 Gen2, 4-Bay Lockerstor 4 Gen2 and 6-Bay Lockerstor 6 Gen2 Desktop NAS

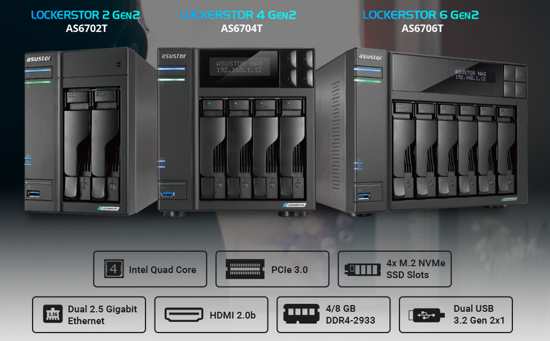

Asustor Inc. launched 3 NAS devices, the Lockerstor 2 Gen2, Lockerstor 4 Gen2 and the Lockerstor 6 Gen2 featuring 2, 4 and 6 bays respectively.

The Lockerstor Gen2 series is equipped with 10nm Quad-Core Celeron N5105 SoC bringing speeds of up to 2.9GHz, a 31% performance upgrade over Gemini Lake. 4 or 8GB of DDR4-2933 RAM is found inside the Lockerstor Gen2 series to complement the fast performance of the CPU.

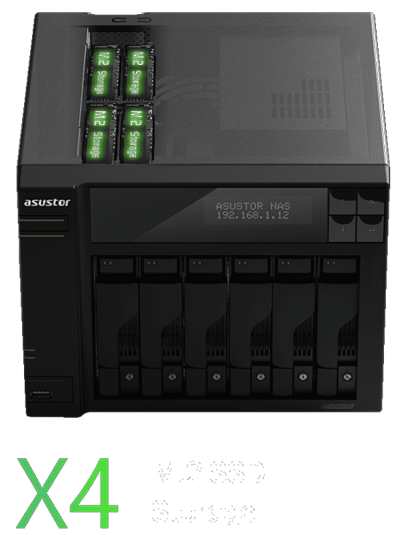

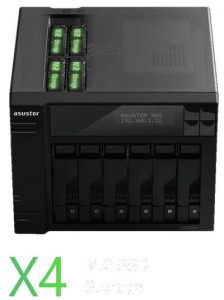

New to the Lockerstor series is the additional 2 slots for M.2 storage as all Lockerstor Gen2 series come with 4 M.2 slots for NVMe drives. The standard PCIe 3.0 slot on the Lockerstor 4 Gen2 and Lockerstor 6 Gen2 give the choice between SSDs or 10GbE cards with the use of a software switch, 4 SSD slots brings flexibility for SSD installation and provides the ability to have a large SSD volume, a large SSD cache or a mix between a volume and cache drive. It combines performance with speed and capacity, ensuring flexibility for professionals.

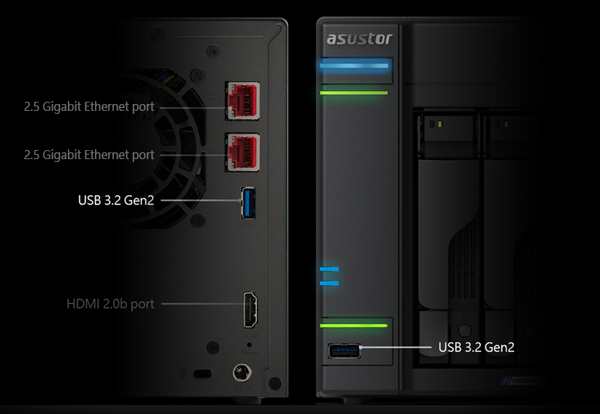

The Lockerstor Gen2 series is also equipped with 2xUSB 3.2 Gen 2×1 ports at 10Gb/s of speed, doubling the original Lockerstor’s speed for external devices. 2×2.5-GbE ports are found on the Lockerstor Gen2, providing up to 590MB/s and 562MB/s of read and write speeds respectively when using SMB Multichannel with a RAID-5 volume.

Want to go faster? Replace the M.2 card with a 10GbE card to accelerate your NAS to 10GbE speeds. Celeron CPUs come with PCIe 3.0, doubling your SSD speeds and increasing the efficiency of your cache drives and SSDs.

The Lockerstor Gen2 series also has improvements in its design. With 4 M.2 SSDs, special consideration was made to keep installed SSDs cool. The chassis contains breathing holes on the top of the NAS to allow air to enter and cool all 4 installed SSDs. The SSD card brings a tool-less design to SSD installation while Wake-on-LAN and Wake-on-WAN technologies help maintain flexibility in power efficiency and hardware longevity. For multimedia, the Lockerstor Gen2 series maintains its support for HDMI 2.0b and 4K hardware decoding as well as audio streaming. Directly edit your content on the Lockerstor Gen2 series of NAS as Adobe Premiere and Final Cut Pro both support direct editing on the NAS while Adobe Creative Cloud folder can be synchronized and backed up to avoid data loss. Content creators will appreciate the 4 NVMe slots for the flexibility and performance it provides.

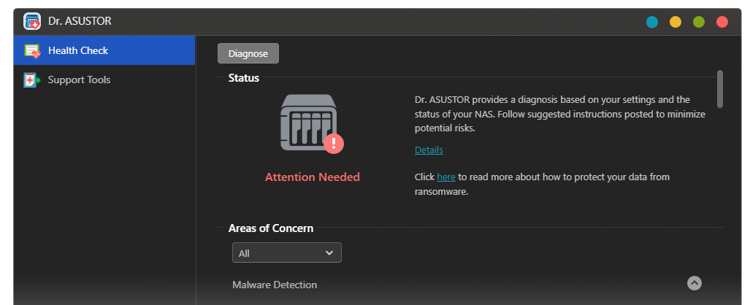

All Lockerstor Gen2 series are equipped with ADM 4.1 OS. ADM 4.1 enhances the security of the NAS. ADM 4.1 is the latest addition to the company’s ongoing commitment to security and contains improvements to software security as well as detection mechanisms for detecting potential abnormal or suspicious activity within Dr. Asustor ADM 4.1 also adds automatic security recommendations to help you optimize NAS’s security and reduce the risks of data loss. The firm always recommends following the 3-2-1 Backup Rule.

Main specs:

• CPU: Celeron N5105 2.0GHz ~2.9GHz quad-core processor

• RAM: DDR4-2933 SO-DIMM – 16GB, 8GBx2 Maximum

• 4GB ( Lockerstor 2 Gen2 / Lockerstor 4 Gen2)

• 8GB (Lockerstor 6 Gen2 )

• Hard drive bays:

  • • 2×2.5”/3.5” SATA HDD/SSD

    • 4×2.5”/3.5” SATA HDD/SSD

    • 6×2.5”/3.5” SATA HDD/SSD

• M.2 slots: 4xM.2 PCIe (NVMe)

• Support PCIe 3.0 SSD

• Networking: 2×2.5GbE ports

• Internal expansion – 1xPCIe slot for 10GbE cards

• SMB multichannel RW speeds in RAID-5: 590MB/s read – 562MB/s write ( RAID-5 )

• External ports: 1xUSB 3.2 Gen 2×1/ front, 1xUSB 3.2 Gen 2×1 / rear, 1xHDMI 2.0b

• Maximum volume size 40/80 /120TB ( Lockerstor 2 Gen2 / Lockerstor 4 Gen2 / Lockerstor 6 Gen2 )

• Hardware based encryption engine

• Tool-Free M.2 SSD Installation

• Supports RAID-0/1/5/6/10, single, JBOD

• Supports seamless system migration

• Supports Wake On WAN and Wake on LAN

MSRP:

• Lockerstor 2 Gen2: £469

• Lockerstor 4 Gen2: £619

• Lockerstor 6 Gen2: £819
