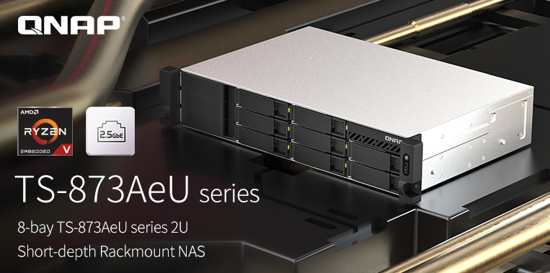

Qnap TS-873AeU and TS-873AeU-RP 2U 8-Bay Rackmount NAS With Ryzen Embedded V1000 Series Processor and 2x2.5GbE Ports

Qnap Systems, Inc. unveiled the 2U short-depth rackmount TS-873AeU NAS series, including the TS-873AeU and TS-873AeU-RP, with performance and energy-efficient AMD Ryzen Embedded V1000 series V1500B 4-core/8-thread, 2.2GHz processors.

The series is available in 8-bay models with single and redundant power supply options. The TS-873AeU series is for tackling resource-demanding applications and tasks, such as VMs, intensive multi-user access, or hybrid cloud applications, making it a cost-efficient solution for businesses that depend on virtualization or VDI applications.

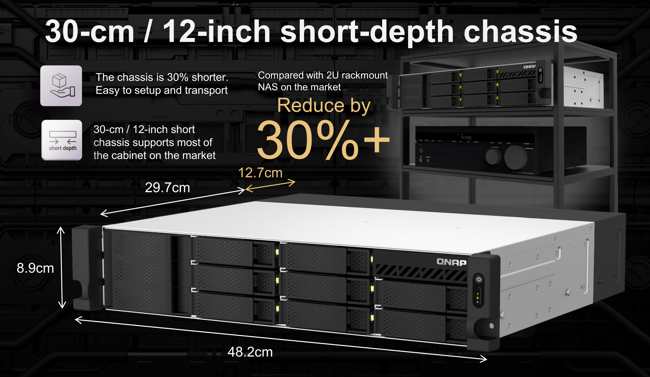

The 2U rackmount TS-873AeU series has a depth design of 11.7 inches (297.4mm) for up to 38% reduction in size, making it for smaller racks, wall-mount AV rack cabinets, and network rack cabinets. Space saved by its short depth design can benefit cabling or ventilation. The series is for flexible deployment and is for installation in locations such as offices, audiovisual rooms, and for applications such as security surveillance recording.

“The TS-873AeU series adopts the high-performance ‘Zen’-core AMD Ryzen embedded processors, and features M.2 PCIe slots to empower SSD caching technology for optimal NAS performance” said Jerry Deng, product manager. “With flexible I/O expandability and versatile QTS applications, it fulfills resource-demanding tasks such as massive data backup/sync/recovery, cloud gateways, virtualization, surveillance and security management.”

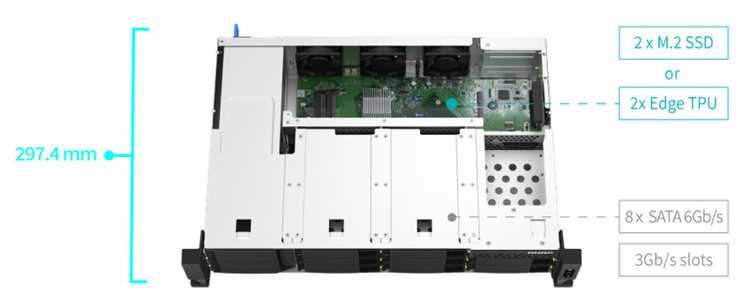

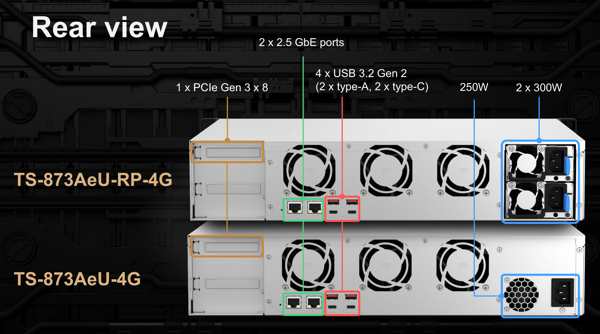

The TS-873AeU series comes with 2×2.5GbE RJ45 LAN ports, with 5GbE connectivity attainable by using Port Trunking. Two M.2 PCIe Gen 3 x 1 slots are also available to enable SSD caching or SSD storage pools for improved performance, or Edge TPU for AI image recognition. Additional NAS functionality can be gained by its PCIe Gen3 x 8 slot, such as installing 25/10GbE network cards, M.2 SSD NVMe cards, or FC cards.

Key specs

Single power supply
TS-873AeU-4G: AMD Ryzen V1500B 4 cores/8 threads 2.2GHz processor, 4GB DDR4 SODIMM (up to 64 GB), 250W single power supply
Redundant power supplies
TS-873AeU-RP-4G: AMD Ryzen V1500B 4 cores/8 threads 2.2GHz processor, 4GB DDR4 SODIMM (up to 64 GB), 300W redundant power supplies

2U rackmount design, also supports DDR4 ECC memory (up to 64GB), hot-swappable 2.5/3.5-inch 6Gb SATA HDDs, 2×2.5GbE Gigabit RJ45 ports, 2xM.2 PCIe Gen 3 x 1 slots, one PCIe Gen 3 x 8 slot, 4xUSB 3.2 Gen 2 (10Gb/s) ports (2xtype-A, 2xtype-C).

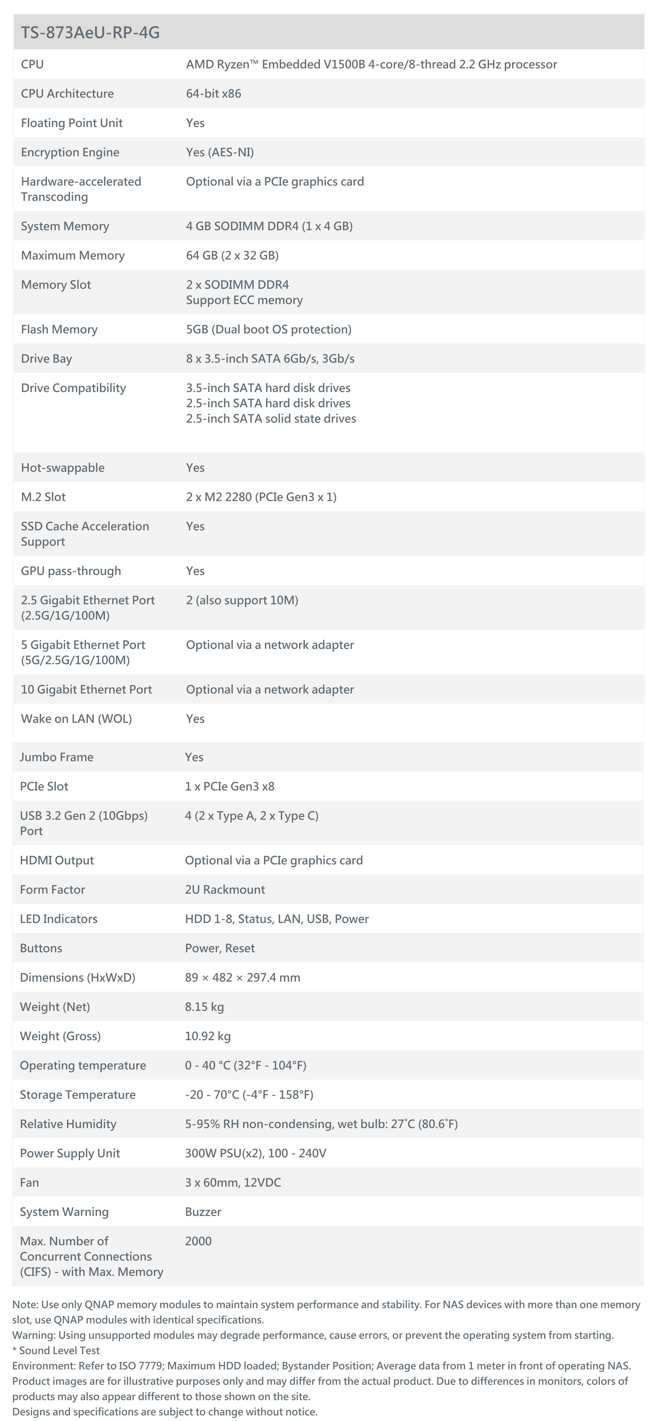

TS-873AeU-RP-4G specs
