Qnap TDS-h2489FU 2U Rackmount 24-Bay U.2 NVMe PCIe Gen 4 Dual-CPU NVMe All-Flash Storage NAS With Xeon Silver 4300 Processors

Qnap Systems, Inc. released the TDS-h2489FU dual-CPU NVMe all-flash storage NAS.

Powered by Xeon Silver 4300 processors (16 or 32 cores) and featuring 24x U.2 NVMe Gen 4 x4 SSD bays, the TDS-h2489FU provides over one million iSCSI 4K random read IO/s with ultra-low latency. Besides hardware and connectivity (including 2x25GbE SFP28 ports, 4×2.5GbE RJ45 LAN ports, 2xPCIe Gen 4 slots, and 1,200W redundant power supplies) the TDS-h2489FU uses the ZFS-based QuTS hero OS that provides data reduction and SSD optimization tools, maximizing all-flash investments for HPC, virtualization, file servers, and 4K/8K multimedia applications.

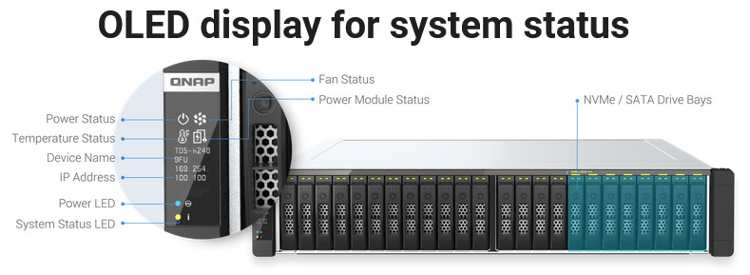

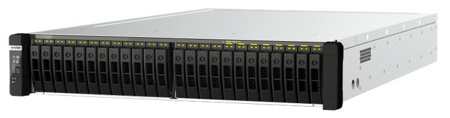

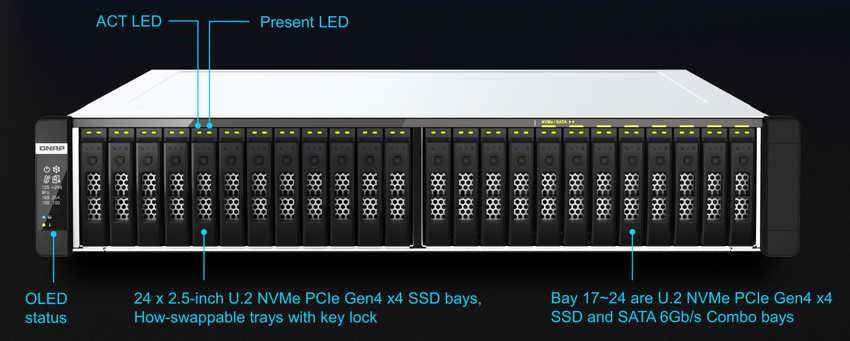

TDS-h2489FU NAS front and rear

“The all-flash TDS-h2489FU drives high I/O performance and low latency with server-grade Xeon processors and U.2 NVMe Gen 4 x4 storage“, said Jason Hsu, product manager. “Capable of empowering mission-critical, latency-sensitive workloads out-of-the-box, with flexible PCIe Gen 4 expansion, the TDS-h2489FU can be further configured to meet extended mix-use applications and data transfer needs.“

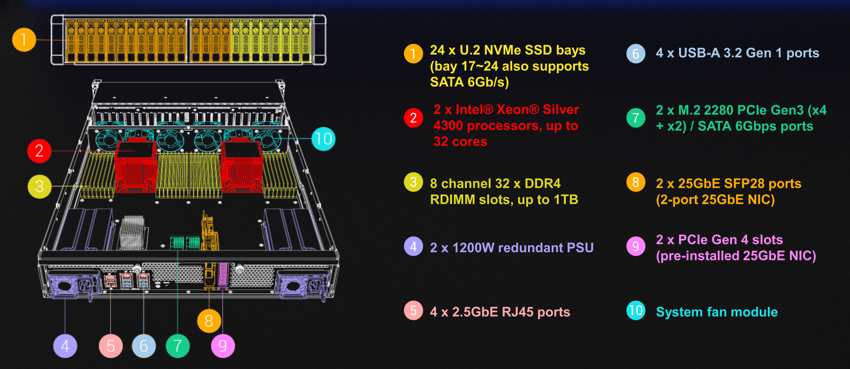

The dual-processor TDS-h2489FU provides multiplied core performance, allowing up to 1TB DDR4 ECC memory with 8-channel modules and 32 Long-DIMM slots to satisfy the computing, networking, and storage requirements of data center and business applications. The 2U rackmount chassis accommodates 24 drive bays for U.2 NVMe Gen 4 x4 SSDs to achieve the utmost application response times. With pre-installed 25GbE connectivity and PCIe expansion for 100GbE, it unleashes the potential of all-flash storage to meet IT challenges.

Click to enlarge

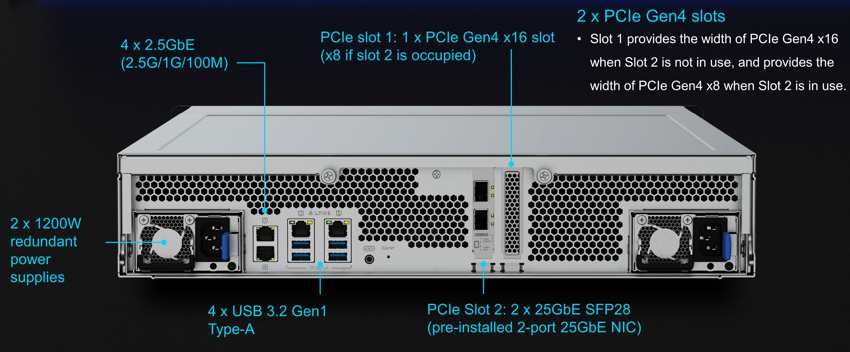

The TDS-h2489FU provide s2xM.2 PCIe Gen 3/4Gb SATA slots that allows for installing data center SSDs (such as Intel Optane SSD) to boost ZIL performance. Two PCIe Gen 4 slots (one slot pre-installed with a dual-port 25GbE NIC) are included for extending core NAS functionality, for example, adding additional high-speed network interface cards, QM2 cards to add M.2 SSDs and 2.5GbE/10GbE ports, FC cards for SAN storage, and storage expansion cards to connect the SAS/SATA expansion enclosures to attain petabyte-scale storage capacity. The firm’s QDA-UMP4 adapter can be used to install affordable M.2 SSDs in U.2 drive bays, providing flexible yet cost-effective storage implementation for optimizing data-intensive applications.

Click to enlarge

Powered by the ZFS-based QuTS hero OS, the TDS-h2489FU focuses on data integrity with self-healing. Data reduction reduces the overall storage footprint – especially helpful for increasing SSD storage efficiency when highly-repetitive data or massive small files are generated. Additional SSD-optimizing features include Write Coalescing, TRIM, and Pool Over-provisioning to assist in attaining the highest performance and lifespan from SSD investments. QuTS hero supports near-unlimited snapshots and versioning for enhanced data protection and prevents simultaneous multi-SSD failures to improve system reliability. The inclusive App Center also provides various install-on-demand apps to further expand the application potential of the TDS-h2489FU, such as hosting virtual machines and containers, facilitate VM backup, simplifying local/remote/cloud backups, setting up a cloud storage gateway to deploy hybrid cloud applications.

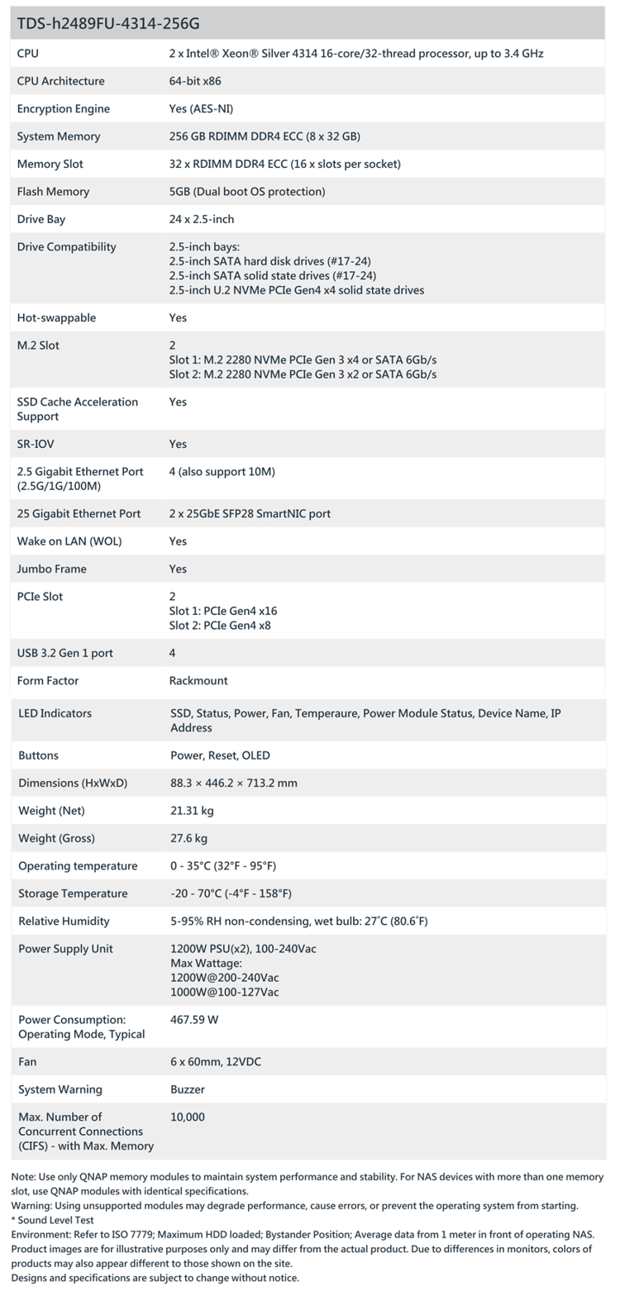

Key specs:

• TDS-h2489FU-4309Y-64G:
  Dual Xeon Silver 4309Y processors for up to 16 cores/32 threads, Turbo Boost up to 3.6GHz, 64GB DDR4 ECC RDIMM memory (8x8GB)

• TDS-h2489FU-4314-128G:
  Dual Xeon Silver 4314 processors for up to 32 cores/64 threads, Turbo Boost up to 3.4GHz, 128GB DDR4 ECC RDIMM memory (8x16GB)

• TDS-h2489FU-4314-256G:
  Dual Xeon Silver 4314 processors for up to 32 cores/64 threads, Turbo Boost up to 3.4GHz, 256GB DDR4 ECC RDIMM memory (8x32GB)

• TDS-h2489FU-4314-512G (by request):
  Dual Xeon Silver 4314 processors for up to 32 cores/64 threads, Turbo Boost up to 3.4GHz, 512GB DDR4 ECC RDIMM memory (16x32GB)

• TDS-h2489FU-4314-1TB (by request):
  Dual Xeon Silver 4314 processors for up to 32 cores/64 threads, Turbo Boost up to 3.4GHz, one TB DDR4 ECC RDIMM memory (32x32GB)

2U rackmount NAS, 24×2.5-inch U.2 NVMe Gen 4 x4 solid state drive bays, compatible with PCIe Gen 3 (slots 17 to 24 also supports 6Gb SATA), 2xM.2 2280 PCIe Gen 3/6Gb SATA slots, 4×2.5GbE RJ45 ports, 2xPCIe Gen 4 slots (one slot pre-installed with a dual-port 25GbE NIC), 4xUSB 3.2 Gen 1 (5Gb/s) ports, 1,200W redundant power supplies.
