Qnap TBS-464 NASbook With 4 Slots M.2 NVMe SSDs for Storage and Celeron N5105/N5095 Quad-Core Processor

Qnap Systems, Inc. launches the compact and versatile TBS-464 NASbook designed for small working spaces and mobile workers.

Using 4xM.2 NVMe SSDs for storage, the TBS-464 supports HybridMount, which can mount storage from cloud and enable local caching, providing the ability to work with online files as quickly as local files. The multi-functional and near-silent TBS-464 provides 2xHDMI 2.0 4K 60Hz outputs, hardware-accelerated transcoding and streaming, and includes the company‘s KoiMeeter for video conferencing and wireless presentations. With 2×2.5GbE ports, the TBS-464 NASbook can achieve speeds of up to 5Gb/s with Port Trunking.

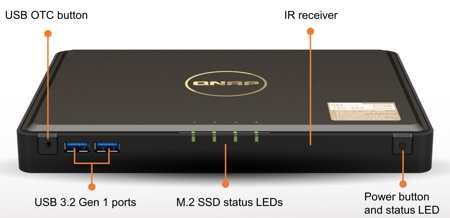

TBS-464 NASbook front

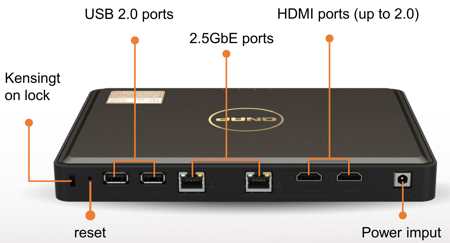

TBS-464 NASbook rear

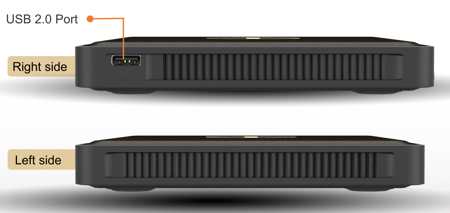

TBS-464 NASbook right and left side

“The TBS-464 NASbook packs serious performance and complete business applications into a tiny, portable frame. By seamlessly integrating cloud storage spaces, the TBS-464 provides the combined advantages of portability and storage flexibility to boost the abilities of modern offices and studios,” said Joseph Ching, product manage. “With the ability to locally cache cloud-based files on the TBS-464, users can enjoy access speeds as if they were working within a LAN environment.“

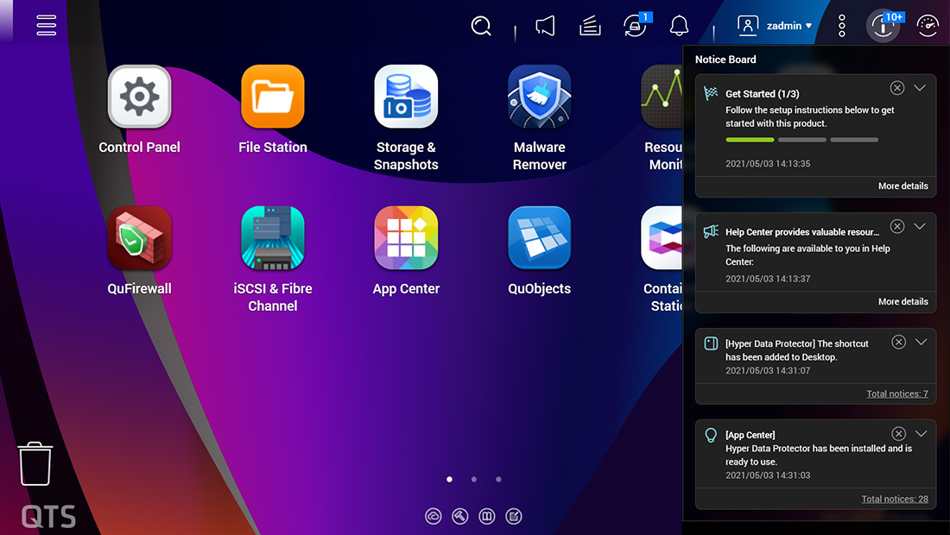

QTS 5 NAS OS screenshot
Click to enlarge

The TBS-464 is powered by a Celeron N5105/ N5095 quad-core 4-thread processor (burst up to 2.9GHz) with Intel AES-NI encryption engine, 8GB DDR4 memory and USB 3.2 Gen 1 ports. It comes with the QTS 5 OS, providing a next-gen usage experience and optimized user interface. HBS (Hybrid Backup Sync) realizes efficient local/remote/cloud backup jobs; Block-based snapshots make data protection and recovery easier and effectively mitigate the threats of ransomware; HybridMount provides cloud storage gateways that integrate private and public cloud storage and enable local caching.

Click to enlarge

The TBS-464 supports media playback on a TV/monitor via two HDMI 2.0 outputs (up to 4K @60Hz) and converts 4K videos to universal file formats that can be played on multiple devices. It is also for media streaming using Plex. The TBS-464 can also be used with KoiMeeter to build a high-quality video conferencing system and to enable wireless presentation.

Click to enlarge

The TBS-464 series is flexible and versatile. Its storage capacity can be expanded by connecting TL and TR storage expansion enclosures. Businesses and organizations can also benefit from the various applications of the TBS-464. QmailAgent centralizes multiple email accounts; Qmiix integrates an Integration Platform-as-a-Service (iPaaS) solution that enables to connect apps and devices with Qnap NAS; Qfiling automates file organization; Qsirch helps find all documents needed. The functionality of the TBS-464 can also be extended by installing apps from the built-in QTS App Center.

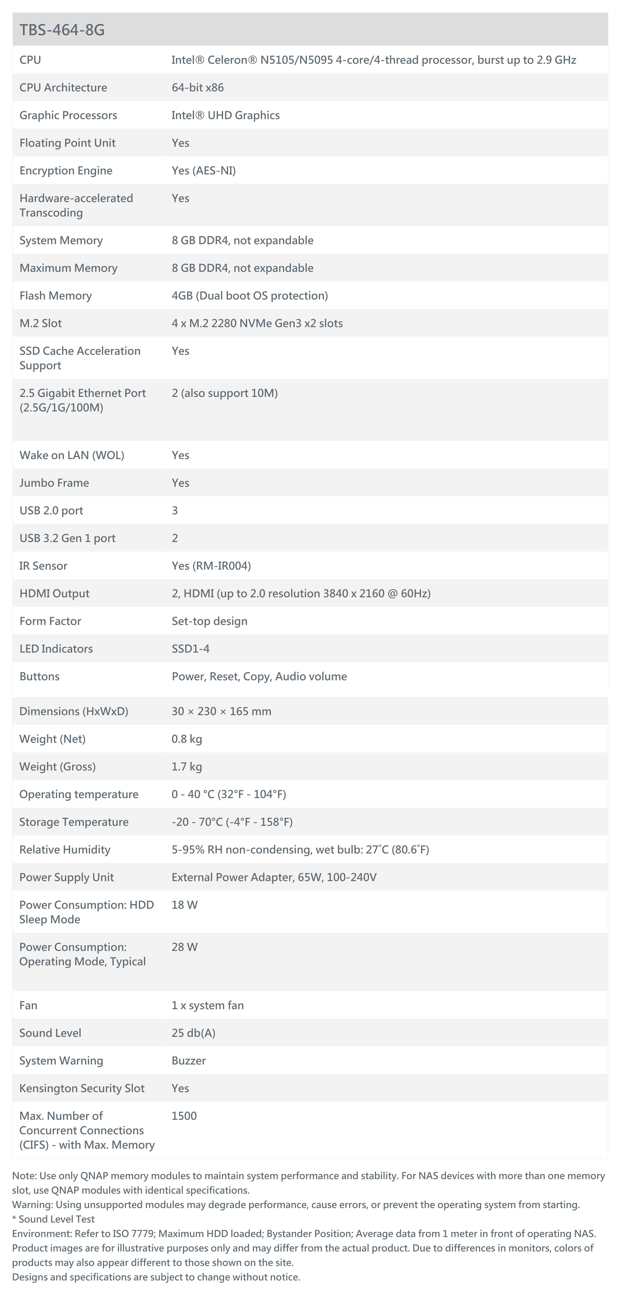

Key specs:

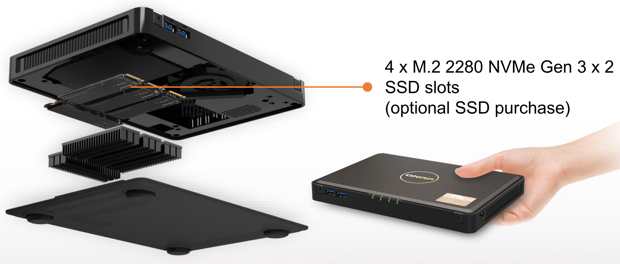

TBS-464-8G: Celeron N5105/N5095 quad-core processor (burst up to 2.9GHz); 8GB DDR4 dual-channel memory; 4xM.2 2280 NVMe Gen3x2 SSD slots; 2×2.5GbE RJ45 ports, 1x1GbE RJ45 port; 2xHDMI 2.0 (4K @60Hz) outputs; 2xUSB 3.2 Gen1 ports, 3xUSB 2.0 ports; IR sensor (IR remote control sold separately).

Resources:
Presentation slides
Video
