Enterprise Security Chooses AC&C JetStor

Enterprise Security, Inc. (ESI) has selected JetStor storage from Advanced Computer & Network Corporation (AC&NC).

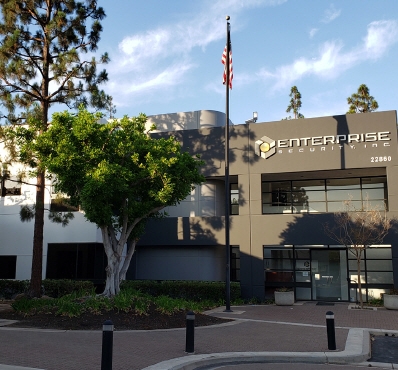

HQs of Enterprise Security in Yorba Linda, CA

Organization
ESI knows that safeguarding governments and enterprises starts with securing their physical facilities.

Since its founding in 2000, the firm, headquartered in Yorba Linda, CA with sites in Tempe and Tucson, AZ, specializes in physical security by locking down buildings and restricting access to authorized users. With over 80 employees, the security firm deploys solutions for federal, state, and local governments, from national agencies to counties and municipalities down to their police stations. It also serves private sector firms in all major verticals.

Challenge
Physical security has evolved over the years, going from traditional locks and keys to such sophisticated systems as biometrics and facial recognition. Video surveillance, for example, went from analog, coaxial systems that recorded to tape to network-based video recorders that digitally store surveillance footage for extended periods.

“Today, physical security demands integration with IT systems,” said Casimir Blonski, director of technology, ESI. “Whereas maintenance departments used to be responsible for physical security, there are more IT-centric solutions operated by IT staff.“

As a result, ESI’s success depends on developing, testing, and integrating software for its customers. Federal agencies, for example, want their users to deploy the same physical credentials to access both buildings and their computers. The company thus needs to consolidate the interfaces for disparate video systems, access control systems, and alarm systems. To this end, it maintains a VMware production environment with the storage performance to support over 100 VMs. Moreover, it needs to store video surveillance of its own facilities.

ESI long relied on a JetStor 716iSD storage array to meet its production needs, but the solution was nearing its end-of-life. Moreover, while it was fine for storing video footage, the growing need for VMs required additional performance. ESI met its requirements with a JetStor 816iXD storage system.

Solution from AC&NC

• JetStor 816iXD iSCSI SAN storage system
• JetStor 716iSD array

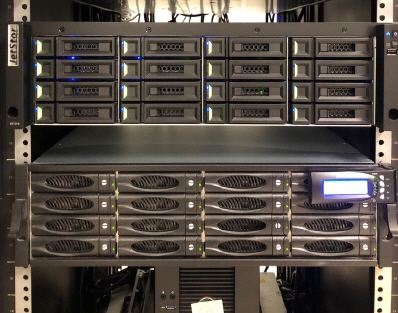

JetStor 816iXD iSCSI SAN storage system (top) and JetStor 716iSD storage array (bottom)

System Configuration:

• One JetStor 816iXD iSCSI-SAN storage system with 121.9TB SAS SSDs and four 4TB SAS HDDs
• One JetStor 716iSD array with 2TB of SSDs and 5TB of HDDs

Benefits Realized
Turning to another JetStor solution for its business-critical needs made sense for ESI. The firm has relied on JetStor platforms since 2009 after a RAID controller on an EMC/Dell solution failed at a critical site. It used JetStor devices initially for video surveillance and then for all of its production needs.

“JetStor devices were an order of magnitude less costly than EMC storage and are very reliable, which is essential for corporate headquarters, city halls, and police departments with their jail cells,” said Blonski. “Whether it’s for the high I/O capability needed to support VMware storage or long-term retention of video footage, we recommend to our customers the same JetStor solutions that we use. AC&NC hasn’t let us down for over a decade and it hasn’t let down any of our clients.“

For example, thanks to recommendations from ESI, one of its customers, the US Department of Energy, has deployed a raft of JetStor platforms. The agency has nearly a mirror environment of ESI’s deployment and recently ordered additional JetStor systems.

The flexible 3U, 16-bay JetStor 816iXD storage system enabled ESI to use a faster pool of flash drives to support its VMs as well as a slower pool of spinning disks for video surveillance footage. Thanks to fast SSDs, ESI improved throughput and eliminated bottlenecks, enabling more servers to be supported.

“Our developers appreciate the much greater performance of the JetStor 816iXD platform and we’re also leveraging the lowest cost per gigabyte on the market,” said Blonski. “The JetStor solution delivers the best ratio between price and performance.“

How we did it?
ESI replaced its JetStor 716iSD array with a JetStor 816iXD system, gaining 10GB ports over one gigabyte ports and support for flash drives. It installed 121.9TB SAS disks for 17TB of fast flash storage that are configured for RAID 5EE, allowing data protection and faster rebuilding of drives should one fail.

The JetStor 816iXD is designed to withstand multiple component failures and achieve 99.999% availability. It features dual-active controllers that double the available host bandwidth and cache hit ratio, ensuring maximum throughput and utilization of system resources.

On its flash drives, the JetStor 816iXD supports 116 VMs, business apps like Exchange email, file servers, SQL servers, and the exacqVision video management system. Video surveillance is centrally stored on 11TB of HDDs on the JetStor device. The footage is from over 30 cameras at ESI’s HQs as well as surveillance from the firm’s other sites that arrive via VPNs.

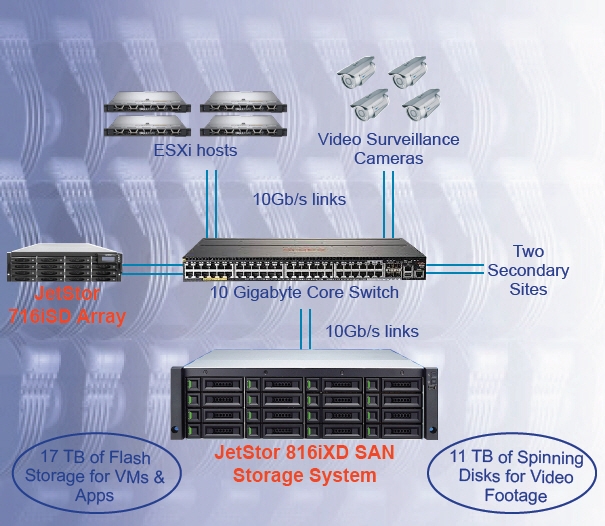

The JetStor 816iXD system connects to a 10GbE core switch via dual 10Gb/s copper links. The switch, in turn, links to VMware ESXI hosts via 10Gb/s connections.

“Our JetStor 816iXD has been easy to install, configure, and maintain,” added Blonski.

ESI still uses its legacy JetStor 716iSD solution for development testing, and thanks to its storage capacity and performance, it will be used to back up critical production servers and development and testing machines.

Conclusion
“Our relationship with AC&NC will continue well beyond the foreseeable future,” concluded Blonski. “It adopts the latest proven technologies to deliver high-performance, cost-effective storage solutions that work year in and year out. JetStor solutions not only continue to bolster our productivity, but they also meet the needs of our customers’ most demanding environments. JetStor products are a win-win for everybody.“
