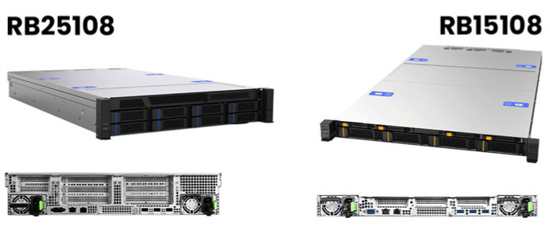

Chenbro 1U RB151 and 2U RB251 Rackmount Barebones Servers Based on Xeon Scalable Ice Lake Series Processor

Chenbro Micom Co., Ltd. announced the availability of its 1U and 2U rackmount barebones servers, based on the Xeon Scalable Ice Lake Series processor, to increase responsiveness and improve user experiences for customers and partners.

The RB151 and RB251 barebone series is designed to be the workhorse server for mainstreaming needs, including computing, collaboration, storage, database, web server, eCommerce, analytics.

Featuring 3rd Gen Ice Lake Xeon Scalable processors
Pre-integrated with T-Shaped 16.85″x18.79″ Spread Core motherboard form factor and Intel M50CYP2SBSTD (Coyote Pass) server board embedded with the 3rd Gen Ice Lake Xeon Scalable Processors, up to 205W, dual-socket P4 LGA4189, RB151 and RB251 rackmount barebones solutions offer a combination of performance, security, and flexibility for HPC applications in enterprises and data centers. The barebone systems extend capacity, up to 12TB memory, 32 DIMMs (16 DIMMs per processor), to increase memory bandwidth and speed. Compatibility with the fastest DDR4 standards adds to the improvements in both data transfer rates and maximized DRAM capacity support per CPU. The RB151 and RB251 barebones leverage the Whitley platform to deliver performance and support for enterprise and cloud requirements.

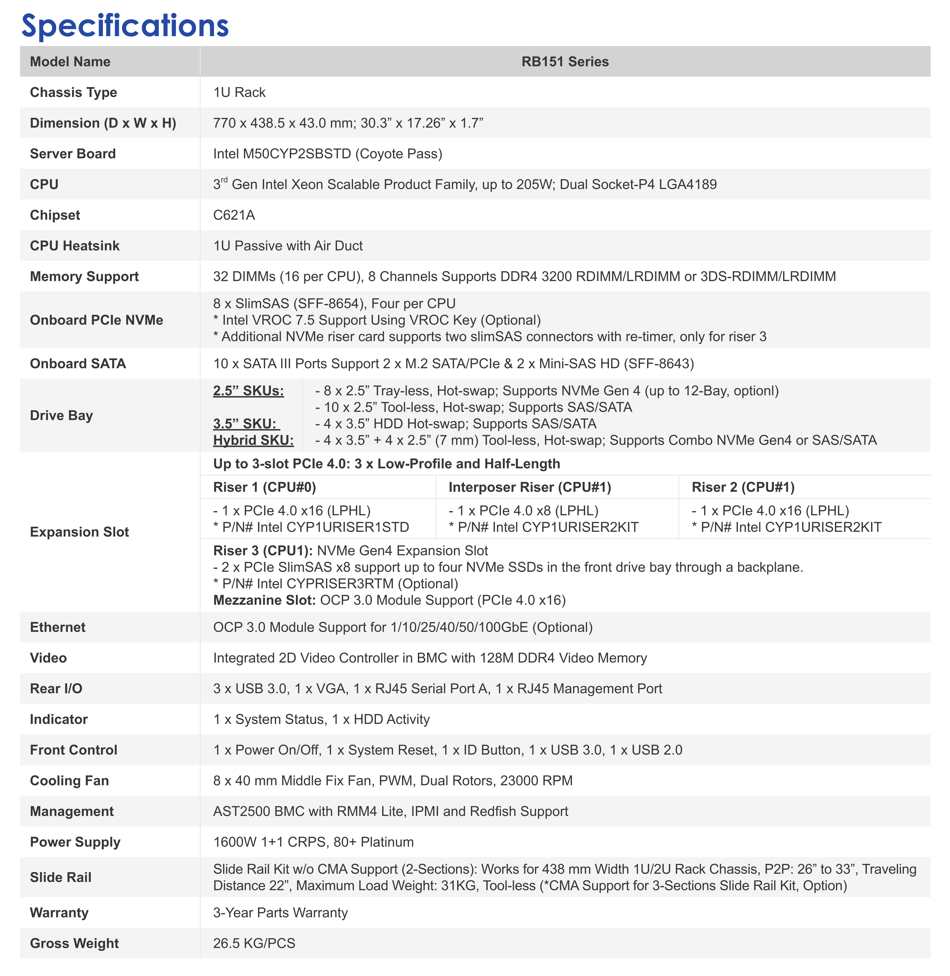

RB151 configurations

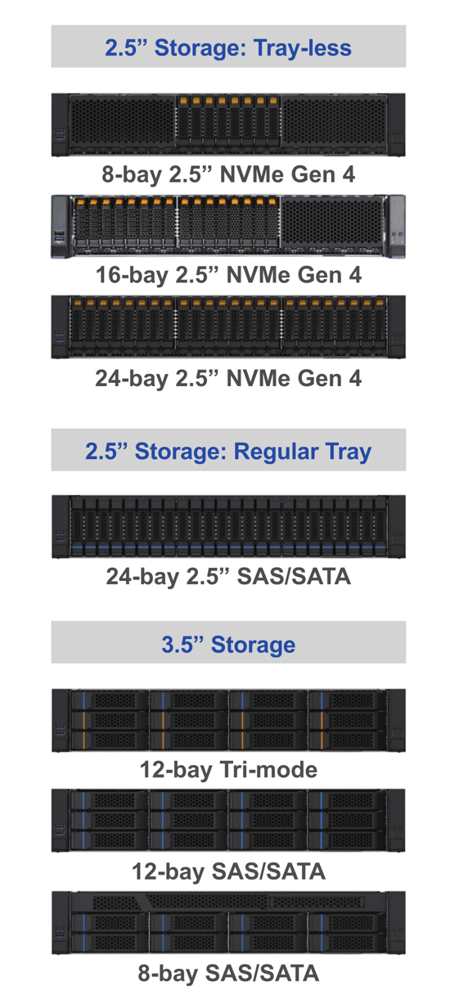

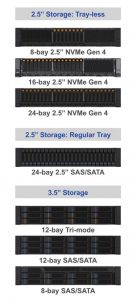

Multiple storage configurations
RB151 and RB251 solutions are designed to avail of Intel Corp.‘s latest server processors for computing performance. Combined with flexible Ethernet with support for OCP 3.0 module per server, and support for the PCIe Gen 4 standard, the synergy between increased data transfer rates and performance allows the barebone server systems to fully utilize the effectiveness of the Whitley platform and meet application, deployment, and performance goals as scalability needs grow and evolve.

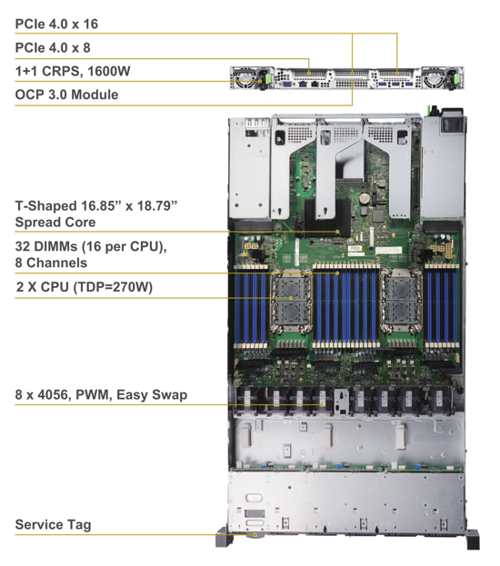

RB151 Series open

Equipped with 1+1 redundant CRPS, 1600W (80+ Platinum) power supplies, and 8x40mm high speed, low vibration, hot-swap cooling fans, the RB151 series is designed to guarantee high conversion regardless of load. RB151 hyperconverged 1U dual node systems, combining increased storage capacities and improved computing performance, support for up to 3-slot PCIe 4.0 (low profile and half length), and offer performance SAS/SATA/NVMe Gen 4 storage, up to 12×2.5″ or 4×3.5″ HDD in a 1U chassis.

Designed with 1+1 redundant CRPS, 2000W (80+ Platinum) power supplies, and 6×60 mm middle hot-swap system fans, RB251 hyperconverged 1U dual node systems support for up to 8-slot PCIe 4.0 (6xfull height and 2xhalf height) and offer performance SAS/SATA/NVMe Gen 4 storage, up to 24×2.5″ or 12×3.5″ HDD in a 2U chassis.

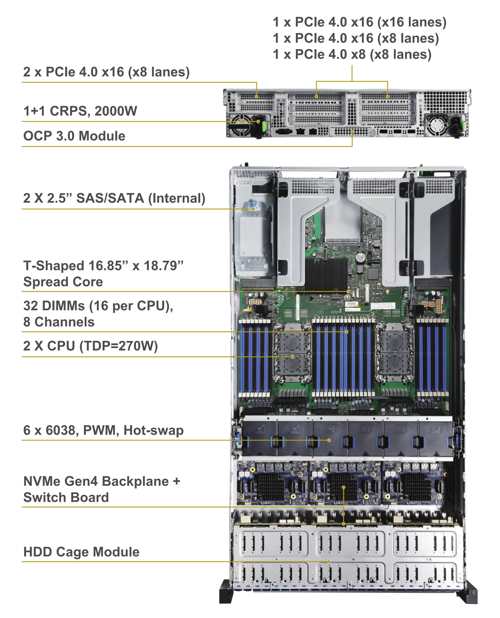

RB251 Series open

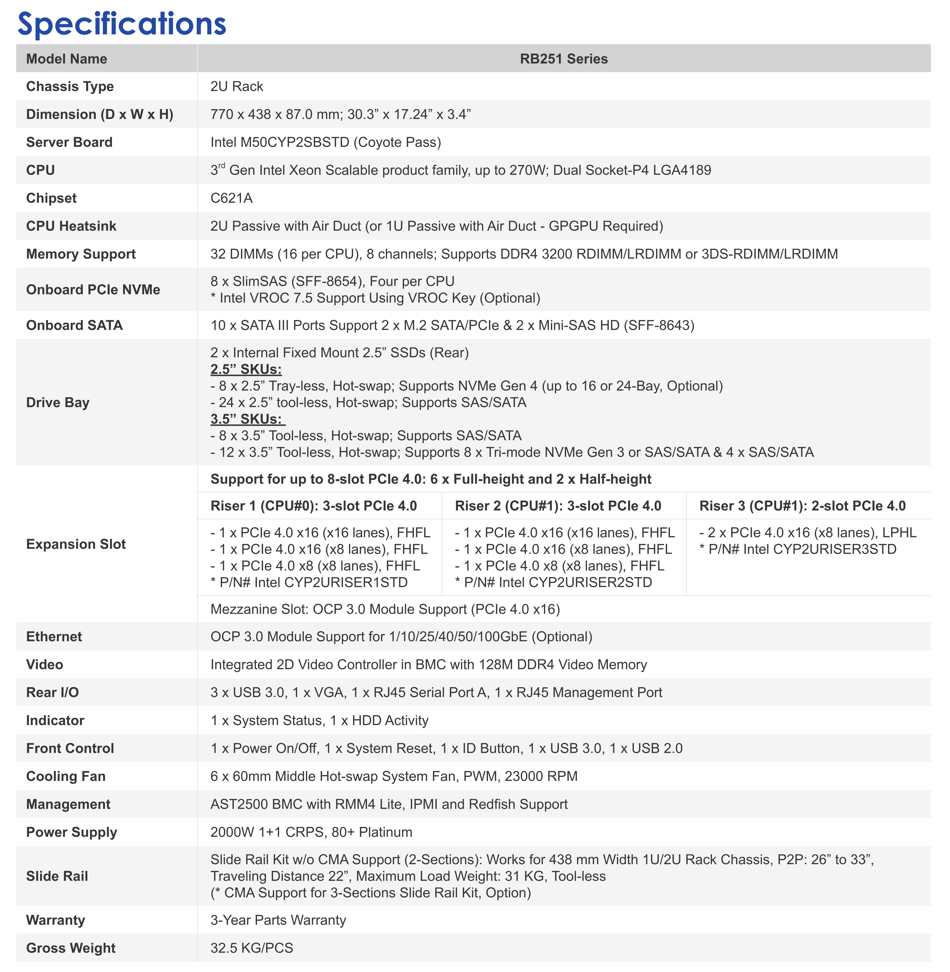

RB251 configurations

Built for enterprise and cloud requirements
As a long-time innovator of Intel-based solutions, the company delivers solutions for HPC enterprises and modern data centers. The RB151 and RB251 solutions are designed for complex business-critical workloads and engineered for compute-to-storage density requirements including enterprise workloads, cloud, and analytics as well as small business and edge computing. Designed for mission-critical, storage-focused applications for HCI requiring maximum compute-to-storage density, these barebone series are a choice for compute-intensive and data-intensive workloads for enterprise and cloud requirements.

The RB151 and RB251 barebones bring added storage capacity for faster and more advanced computing applications of storage, business intelligence, web server, database, eCommerce, AI, and data analytics, to improve data streaming performance for HPC enterprises and data centers. these series are OTS products ready for global sale.

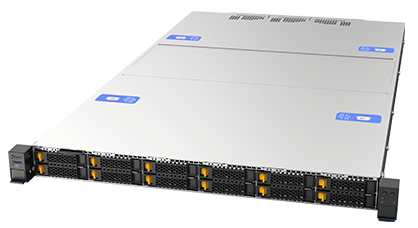

 RB 151 front

Click to enlarge

RB251 Series front

Click to enlarge
