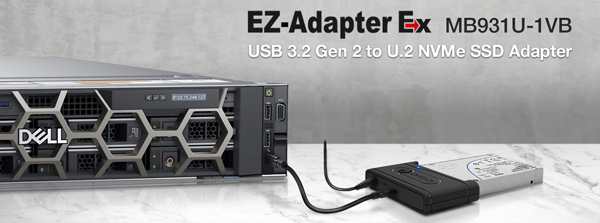

Icy Dock EZ-Adapter Ex MB931U-1VB External USB 3.2 Gen 2 Dock for U.2 PCIe NVMe SSDs

The EZ-Adapter Ex MB931U-1VB from Icy Dock provides SMB, power users, and media professionals a quick and easy way to access their enterprise U.2 PCIe NVMe SSDs.

The EZ-Adapter Ex utilizes a 10Gb/s USB 3.2 Gen 2 interface and backward compatible with the previous USB 2.0 interface for best system compatibility. The tool-less SSD installation design allows users to transfer large files from multiple U.2 drives to any computer through a USB connection without having NVMe support on the computer end.

Professional adapter for enterprise U.2 drives

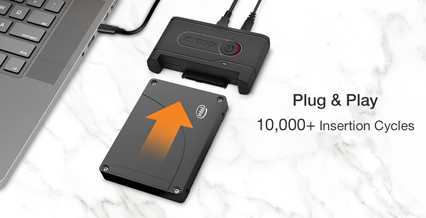

The benefits of using U.2 NVMe SSDs are fast IO/s, high storage capacity, long lifespan, end to end path protection (ETEP), and power loss protection (PLP). However, accessing U.2 drive required NVMe host and specific cables, making the data transfer between the systems almost impossible. With EZ-Adapter Ex MB931U-1VB, connect the U.2 SSD to the EZ-Adapter and then plug the USB type A or C connector into the system to start the data transfer. The tool-less drive installation allows the MB931U-1VB to swap multiple U.2 drives within seconds and making the process.

Performance

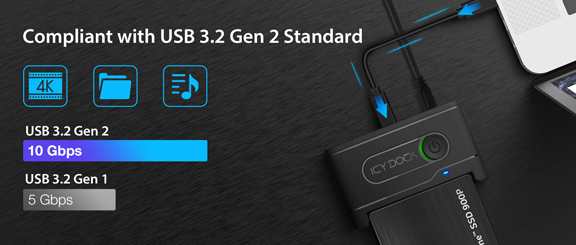

To utilize the power of the U.2 PCIe NVMe SSD, the EZ-Adapter Ex uses the USB 3.2 Gen 2 interface that can provide transfer speeds up to 10Gb/s, giving the ability to backup large data files or store 4K/5K/8K videos ins. A 12V power supply is included to ensure enough power is provided for the power-hungry U.2 SSD. The exposed U.2 SSD from the enclosure allows full passive heat dissipation to optimize cooling performance.

Compact for portable
The MB931U-1VB has been engineered for mobility but does not compromise functionality and durability. The EZ-Adapter Ex is made out of ABS plastic with a smooth finish that will not damage other equipment when placed in a carry-on bag. The compact design allows the EZ-Adapter Ex to be carried without taking too much space.

Compatibility

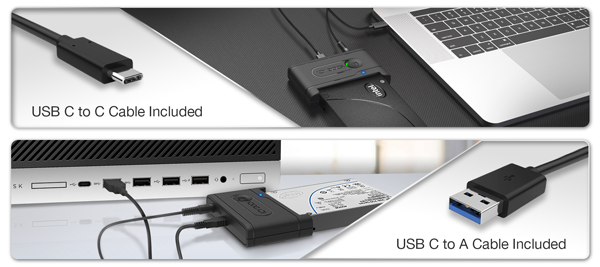

The MB931U-1VB comes with USB type C to C and type C to A cables and backward compatible with the previous USB 2.0 to support new and legacy PC/MAC systems that use different types of USB ports. The EZ-Adapter Ex is a plug and play external enclosure with no drivers required.

LED indications
The EZ-Adapter Ex is equipped with a LED indicator that shows the drive power and activity. The individual slide-switch power button allows users to power off the SSD when not used to extend the drive’s lifespan and conserves electricity.

Pair it with EZConvert MB705M2P-B

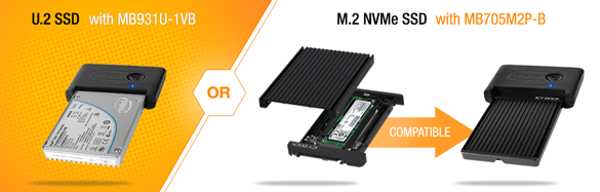

If you are looking to use a combination of M.2 and U.2 PCIe NVMe SSDs externally, the EZConvert MB705M2P-B converts M.2 NVMe SSD to the U.2 NVMe SSD, giving the utmost flexibility of accessing NVMe drives through MB931U-1VB.
