Chenbro Micom RB23712 12-Bay 2U Rackmount Server Barebone With Intel Server Board S2600WFTR

Chenbro Micom Co., Ltd. has launched the RB23712, a Level-6, 2U rackmount server barebone with 12 drive bays designed for storage-focused applications in the data center and HPC enterprise.

The RB23712 is a barebones server solution that pre-integrates an Intel Server Board S2600WFTR with support for up to 2, 2nd gen Xeon Scalable processors to ensure a flexible, scalable design that can meet a variety of deployment needs, while also assuring mission-critical reliability.

 Rb23712 rear

Storage-focused server barebone designed for data center and HPC enterprise
The RB23712 offers Apache Pass, IPMI 2.0 and Redfish compliance, and includes Intel RSTe/Intel VROC options, providing a solution for hosting video, IMS, SaaS and similar storage-focused applications for either public or private cloud services.

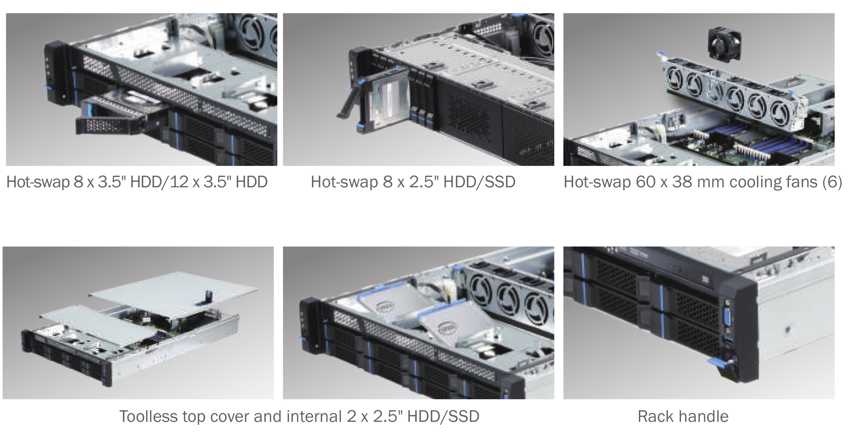

12X hot-swap drive bays and PCI-E expansion options
The RB23712 chassis features 12×3.5-inch storage bays; each allowing toolless hot-swap for ease of maintenance. 4X FHFL, 2X FHHL, 2X HHHL upgrade options are available for internal AIB expansion. The barebones design includes optimized cable routing throughout, plus 17,000rpm cooling fans that can be hot-swapped, plus airflow optimized ducts to ensure reliable cooling for up to 165W CPUs, the high-performance PCIe expansion cards, and all storage hardware.

RB237 series

Level-6 Xeon scalable server barebone with Intel server board pre-installed
The Level-6 server barebone system is pre-tested to ensure lreliability with the pre-installed hardware, including the Intel S2600WFTR Server Board. This board can support up to 2, 2nd gen Xeon Scalable processors, up to 24x ECC UDIMM 2933MT/s slots (12 per processor) enabling a maximum 7.5TB of memory, while networking is provided by two 10GbE via RJ45, plus one remote management port. A premium 800W CRPS 80Plus Platinum grade PSU is provided, with expansion space for another CRPS PSU that can be installed according to the deployment requirements.

Logo branding and customization services for rackmount server chassis
As with other company’s chassis, the RB23712 barebone is available for branding customization. The server case can be modified to meet a customer’s needs, including personalized silkscreens, logo plates, and tailor-made bezels to create a data center rackmount in the customer’s brand image. Thanks to an agile organization, the firm’s server customization services can support requests from system integrators and MSP’s for their clients requiring select quantities.

Product highlights:

• 12-drive bays 3.5″

• Using 2U chassis

• 4X FHFL, 2X FHHL, 2X HHHL

• Featuring Intel Server board S2600WFTR

• TDP supports up to 165W

• 800W CRPS 80Plus Platinum grade PSU

• With space for 2nd CRPS PSU

• 6X hot-swap 17,000rpm cooling fans

Quality server manufacturing for fast and safe server assembly by MSP
Building on its 37 years of Taiwan manufacturing, the company assures a quality product manufactured with a sturdy frame and no sharp edges to ensure the well-being of assembly teams in system integrators, rack and stack service providers. The RB23712 barebone server employs a tool-less design for upgrades and maintenance, including storage, HDD trays, system fans, and PCI-Express riser brackets.

The RB23712 is available through the firm’s offices and partners. The company is dedicated to supporting global system integrators through its network of distribution partners in North America, Europe, and Asia, or it can directly support larger orders.

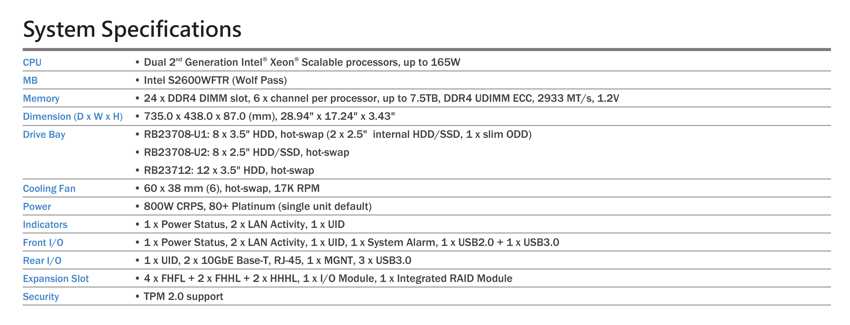

RB237 series specifications
Click to enlarge
