Availability of 10-Bay Lockerstor 10 Pro Desktop NAS With Xeon Processor From Asustor

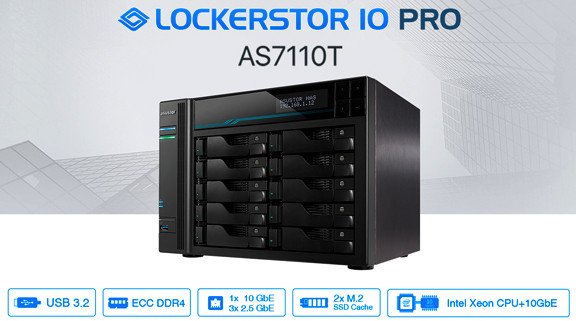

Asustor, Inc. released its 10-bay Lockerstor 10 Pro sporting a 9^th gen Xeon Quad-Core processor.

The Xeon E-2224 runs at 3.4Ghz and turbos to 4.6GHz, making everything faster, especially transfer speeds, VMs and Docker apps. The Lockerstor 10 Pro comes with 8GB of DDR4-2666 ECC memory and supports up to 32GB of RAM. The ECC RAM included with the NAS corrects memory errors in real-time and helps avoid data loss caused by memory corruption, keeping critical data safe.

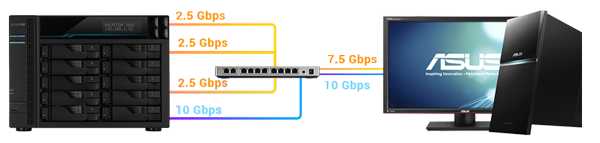

In terms of transmission speed, the Lockerstor 10 Pro provides a single 10-GbE connection as well as triple 2.5-GbE ports. With the Xeon processor, Link Aggregation on the 2.5Gb ports, up to 7.5Gb/s of bandwidth can be achieved while the 10Gb port brings the full 1.25GB/s speeds. This NAS also features dual M.2 SSD slots, which support a variety of M.2 form factors and thumbscrews for easy installation. With NVMe SSD caching, the performance of traditional HDDs is upgraded to SSD levels, bringing tstorage and speed. The Lockerstor 10 Pro also features USB 3.2 Gen2 which provides up to 10Gb of speed and supports up to 192TB of extra capacity using the AS6004U for a total of 160+192TB.

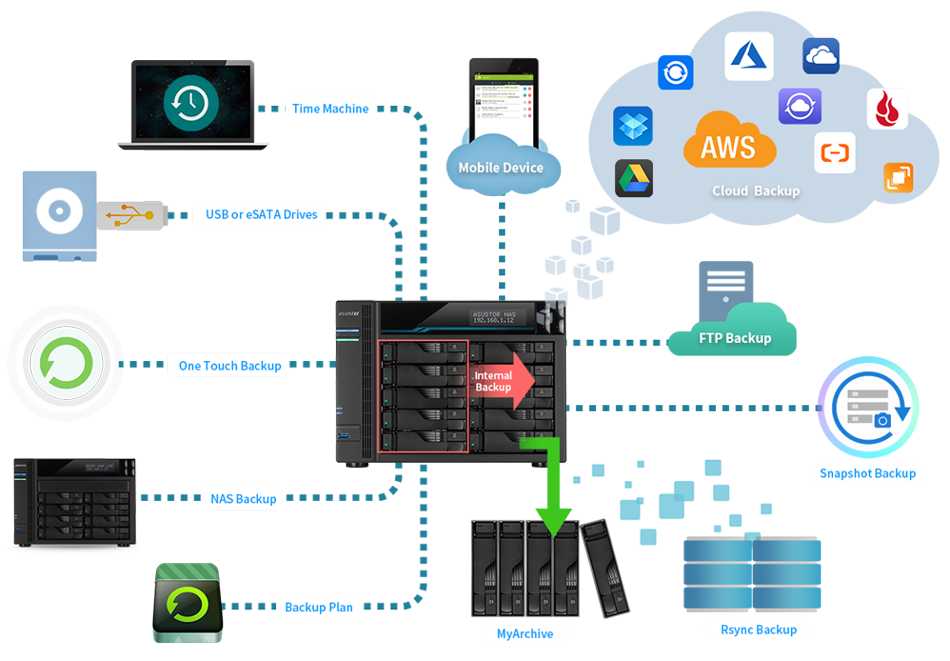

The Lockerstor 10 Pro provides multi-level protection and Btrfs snapshot security along with enterprise features and hardware. Some of these features include compatibility with VMware, Citrix, and Hyper-V storage environments. It also supports iSCSI, IP-SAN and NFS storage devices, enabling integration into existing IT environments.

It continues the company’s tradition maximizing compatibility by supporting most OSs, including Windows, macOS and Linux for desktops as well as Android and iOS smartphones and tablets. The CPU inside this NAS makes VMs run faster and is better able to run more VMs and Docker apps simultaneously. It multitasks is able to multiple server instructions at the same time.

Click to enlarge

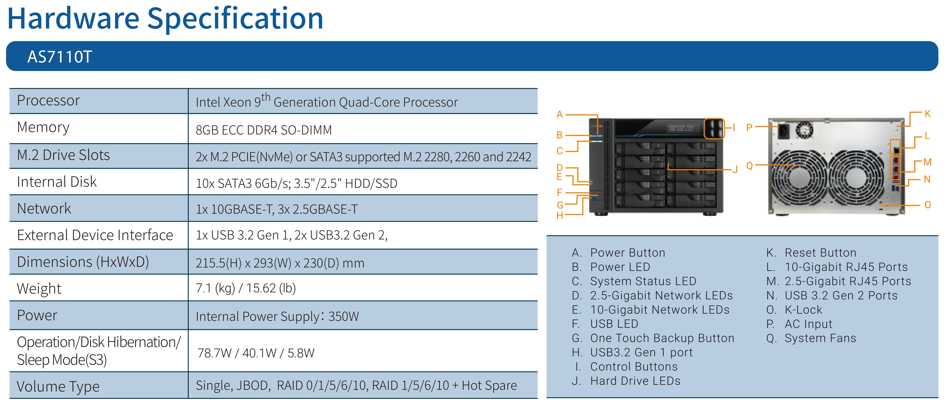

Main specs:

CPU: 9th gen Xeon E-2224 3.4GHz Quad-Core processor
8GB DDR4-2666 ECC SO-DIMM RAM
Dual M.2 PCIe NVMe or SATA SSD for SSD caching – Supports multiple form factors
Network: Single 10-GbE – Triple 2.5-GbE
10Gb port sequential read and write performance up to 1,181MB/s and 1,178MB/s in RAID-5
2.5Gb port sequential read and write performance up to 848MB/s and 847MB/s in RAID-5
One front USB 3.2 Gen1 rated for 5Gb supporting ‘One Touch Backup’
Dual rear USB 3.2 Gen2 rated for 10Gb
Supports HDD hot-swapping
Supports hardware encryption
Supports Btrfs snapshots
Supports EZ Sync and SSD cache
Supports RAID-0/1/5/6/10, single, JBOD
Supports 3.5″ and 2.5″ 6Gb SATA HDDs or SSDs
Supports system migration system transfer
Supports MyArchive cold backup technology
Supports Wake on LAN on the 2.5GbE ports

Click to enlarge
