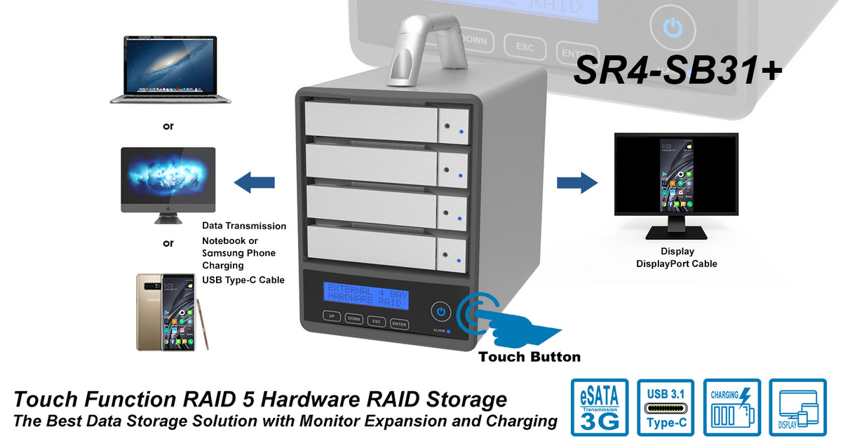

Stardom (Raidon) SR4-SB31+ 4-Bay USB 3.1 Gen 1 RAID Appliance

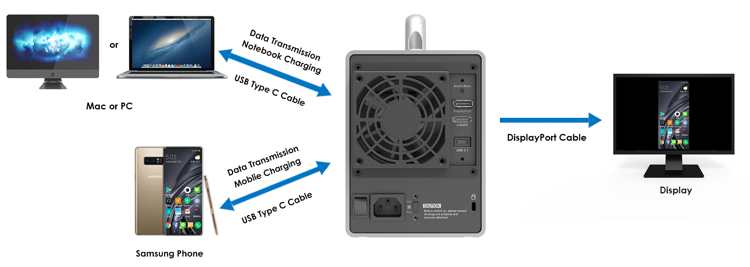

Stardom, a brand from Raidon Technology, Inc., announces SR4-SB31+ 4-bay USB 3.1 Gen 1 RAID storage comes with one e-SATA and USB Type C interfaces, can support data transmission and provide 24W USB power delivery for notebook charging and one Display Port for 2nd monitor expansion.

The SR4-B31+ storage supports four 3.5″ or 2.5″ HDD or SSD comes with standard hot-swappable drive tray. It provides USB PD (Power Delivery) of 15W (5V/3A), 18W (9V/2A) and 24W (12V/2A) charging for notebook and mobile phone. It also provides one Display Port that can supports DP1.1 up to 4K@30Hz output quality for users to expend the 2nd monitor.

Click to enlarge

The SR4-B31+ is embedded the hardware RAID chip inside which provides RAID-0/5 and JBOD function. User can set the RAID level depending on the application.

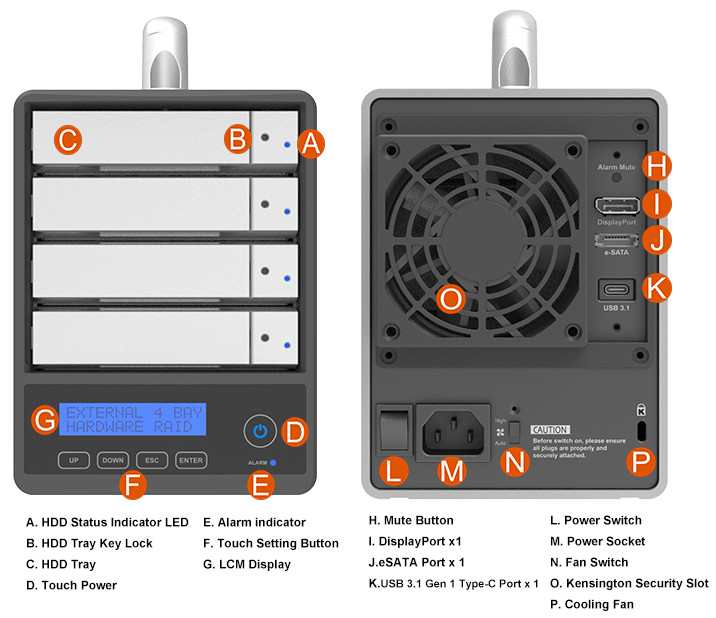

The exterior of SR4-SB31+ has the touch panel for touch power and touch setting function that is or user friendly and also for outlook. It is also equipped with LCD display and LED indicators for system monitoring, so that users can grasp the status of the system at all times during the operation. Besides, it also built in cooling and buzzer adjustment function that with visual and audio alarms whenever failure occurs.

The SR4-B31+ is designed with aluminum construction for heat dissipation and comes with the company’s standard aluminum handle for user to move the storage easier.

Click to enlarge

Feature:

• Supports USB 3.1 Gen1 with Type-C connector

• Designed with touch panel for touch power and touch setting function

• Supports one eSATA port up to 3Gb

• Support Display Port DP1.1a for 2nd monitor expansion

• Supports 24W (12V/2A) USB Power Delivery charging for notebook and mobile phone

• Support four 2.5″/3.5″ SATA tray

• Equipped with LCM for system monitoring

• Cooling and buzzer adjustment function

• Hot-swappable drive tray

• Plug and play

• For Windows and Mac

• Designed with aluminum construction

Product specs:

• SR4-SB31+

• Interfaces

  • • USB 3.1 Gen 1 port

    • DP 1.1a Mini Display Portx1

• Support 24W(12V/2A)/18W(9V/2A)/15W(5V/3A) power delivery.

• eSATA port(up to 3Gb)

• Compatible drive : Four 3.5″/2.5″ 6Gb SATA HDDs/SSDs

• Storage

  • • Independent (JBOD)

• Mode

  • • RAID-5 protected/RAID-0 high-speed

• System monitoring

  • • Drive and data rebuilding failures

    • System temperature,fan failure

    • Hard drive failure

• OS support

  • • Windows 7 or above, OSX10.10 or above, Linux

• Cooling system 8cm low noise fan

• Size and weight : height:166mm; width:124mm; depth:210mm; weight:3kg

• Carton

  • • Four pcs per carton

    • Package accessories

    • SR4-SB31+x1

    • with removable drive tray enclosedx4

    • USB 3.1 Gen 2 (Type-C to Type-C) Cablex1(with E-Mark)Cablex1

    • eSATA Cablex1

    • Power cord x1

    • Quick installation Guidex1

    • Accessory kit
