Data Center World: Kingston Data Center DC500R/DC500M Enterprise 2.5-Inch SATA SSD Up to 3.84TB

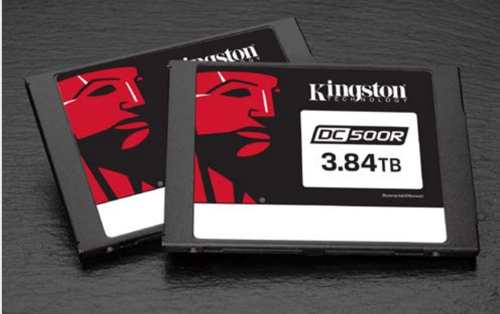

Kingston Digital, Inc., flash memory affiliate of Kingston Technology company, Inc., is shipping the Data Center DC500R Enterprise SSD optimized for read-intensive applications.

This is the first drive in the DC500 series that implements the company’s strict QoS requirements to ensure predictable random I/O performance as well as predictable low latencies over a range of read and write workloads. Next week, the firm will ship its DC500M SSD optimized for mixed-use workloads.

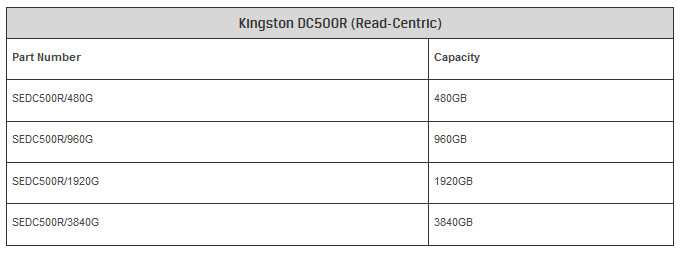

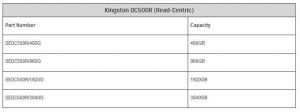

DC500R is for read-intensive applications such as boot up, web servers, VDI, operational databases and real-time analytics. Cloud service providers and software-defined storage architects can leverage the drive’s consistent I/O and latency performance to deliver the QoS needed in demanding read-centric environments. At .5 DWPD (drive writes per day), DC500R allows IT administrators to maximize their investment in storage hardware with a drive that delivers on performance, endurance and reliability. DC500R is available in 480, 960GB, 1.92 and 3.84TB capacities.

“80% of all enterprise SSDs deployed in data centers require less than one ⁽¹⁾ DWPD,” said Gregory Wong, president and principal analyst, Forward Insights. “As data centers seek the optimal balance between application-required endurance, capacity and cost, this trend is expected to continue.“

“QoS in an enterprise SSD is essential for Cloud computing applications that require predictable storage performance levels and meet customer SLAs. The new DC500 Series SSDs deliver excellent performance to intensive data center applications from the development stage of the application to the end-user customer experience downstream,” said Keith Schimmenti, manager, enterprise SSD business, Kingston. “To ensure the security of user data, DC500 incorporates end-to-end data path protection and power-loss protection to safeguard data in-flight in the event of sudden power loss. This is the optimal data center storage solution when you combine its enterprise reliability and strict QoS requirements along with Kingston’s legendary pre- and post-sales support.“

In one week, the company will add to the DC500 series with the DC500M SSD optimized for mixed-use workloads in applications that have a more even balance of read and write I/O demands on the SSD. It is for cloud service providers and software-defined storage architects who need a flexible infrastructure to effectively adapt and manage transactional workloads. At 1.3 DWPD (drive writes per day), DC500M is for the high-volume rack-mount server market for internal drive bay upgrades, hyperscale data center servers and cloud service providers requiring low-cost, high-performance storage subsystems.

The firm showcased its DC500 series at Data Center World in Phoenix, AZ. The industry trade shows on IT infrastructure and data center strategies, the company will exhibit its entire line of server SSDs as well as industry server premier memory. Server Premier memory features a locked BOM to ensure a consistent brand and revision of DRAM. All company’s server memory undergoes patented dynamic burn-in testing to simulate heavy server workloads designed to root out early-life failure at the factory before they’re installed in the data center.

Data Center DC500 Enterprise SSD features and specifications:

• Optimized for read-intensive applications (DC500R): Responsiveness from low latency and consistent I/O performance delivers businesses the QoS needed in demanding read-centric workloads.

• Optimized for mixed-use applications (DC500M): A balance of consistent I/O delivery and high read and write IO/s performance to manage a range of transactional workloads.

• Reduce application latencies: Data center’s hosting databases and various web-based applications can leverage the predictable I/O and latency performance.

• Data Integrity Protection: ECC protection with read/disturb management safeguards against data corruption for end-to-end data protection.

• On-board (PLP) Power Loss Protection: Reduce the possibility of data loss and/or corruption on ungraceful power fails via power capacitors and firmware.

• Form Factor: 2.5 inch

• Interface: SATA Rev. 3.0 (6Gb) – with backwards compatibility to SATA Rev. 2.0 (3G)

• Capacities⁽¹⁾: 480, 960GB, 1.92, 3.84TB (DC500M 3.84TB capacity available in later Q2)

• NAND: 3D TLC

• Self-Encrypting Drive (SED): AES 256-bit Encryption

• Sequential Read/Write: (DC500R)
  480GB – 555MB/s-500MB/s
  960GB – 555MB/s-525MB/s
  1.92TB – 555MB/s-525MB/s
  3.84TB – 555MB/s-520MB/s

• Steady-State 4k Read/Write: (DC500R)
  480GB – 98,000/12,000 IO/s
  960GB – 98,000/20,000 IO/s
  1.92TB – 98,000/24,000 IO/s
  3.84TB – 98,000/28,000 IO/s

• Sequential Read/Write: (DC500M)
  480GB – 555MB/s-520MB/s
  960GB – 555MB/s-520MB/s
  1.92TB – 555MB/s-520MB/s
  3.84TB – 555MB/s-520MB/s

• Steady-State 4k Read/Write: (DC500M)
  480GB – 98,000/58,000 IO/s
  960GB – 98,000/70,000 IO/s
  1.92TB – 98,000/75,000 IO/s
  3.84TB – 98,000/75,000 IO/s

• Quality of Service (Latency) ^{(2), (3, (4),} : TYP Read/Write: <500 µs / <2 ms

• Hot-Plug Capable

• Static and Dynamic Wear Leveling

• Enterprise SMART tools: Reliability tracking, usage statistics, life remaining, wear leveling, temperature

• Endurance:
  DC500R:
  480GB — 438TBW⁵ (0.5 DWPD)⁶
  960GB — 876TBW⁵ (0.5 DWPD)⁶
  1.92TB — 1,752TBW⁵ (0.5 DWPD)⁶
  3.84TB — 3,504TBW⁵ (0.5 DWPD)⁶
  DC500M:
  480GB – 1,139TBW⁵ (1.3 DWPD)⁶
  960GB – 2,278TBW⁵ (1.3 DWPD)⁶
  1.92TB – 4,555TBW⁵ (1.3 DWPD)⁶
  3.84TB – 9,110TBW⁵ (1.3 DWPD)⁶

• Power Consumption:
  Idle: 1.56W average: 1.6W max read: 1.8W max write: 7.5W

• Storage temperature: -40°C ~ 85°C

• Operating temperature: 0°C ~ 70°C

• Dimensions: 69.9x100x7mm

• Weight: 92.34g

• Vibration operating: 2.17G peak (7–800Hz)

• Vibration non-operating: 20G peak (10–2000Hz)

• MTBF: Two million hours

• Warranty/support ⁽⁷⁾: Limited 5-year warranty with free technical support

(1) Some of the listed capacity on a flash storage device is used for formatting and other functions and thus is not available for data storage. As such, the actual available capacity for data storage is less than what is listed on the products. For information, go to Kingston’s Flash Guide.
(2) Workload based on FIO, Random 4KB QD=1 workload, measured as the time taken for 99.9 percentile of commands to finish the round-trip from host to drive and to host.
(3) Measurement taken once the workload has reached steady state but including all background activities required for normal operation and data reliability.
(4) Based on 960GB capacity.
(5)Total Bytes Written (TBW) is derived from the JEDEC Enterprise Workload (JESD219A).
(6) Drives Writes Per Day (DWPD).
(7) Limited warranty based on 5 years or SSD ‘Life Remaining’ which can be found using the Kingston SSD Manager . A new, unused product will show a wear indicator value of 100, whereas a product that has reached its endurance limit of program erase cycles will show a wear indicator value of one (1). See kingston.com/wa for details.
