NERSC Tape Archives Make Move to Berkeley Lab’s Shyh Wang Hall

The National Energy Research Scientific Computing Center (NERSC) tape archives make the move to Berkeley Lab’s Shyh Wang Hall.

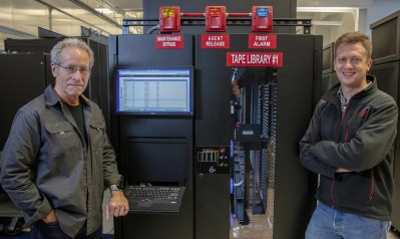

NERSC’s Wayne Hurlbert (left) and Damian Hazen (right) are overseeing
the transfer of 43 years’ worth of NERSC data to new tape libraries at Shyh Wang Hall.
(Image: Peter DaSilva)

When the NERSC relocated from its former home in downtown Oakland, CA to Lawrence Berkeley National Laboratory‘s Shyh Wang Hall in 2015, not everything came with. The last remaining task in the effort of moving the supercomputing facility and all of its resources is 43 years of archival data that’s stored on thousands of high performance tapes in Oakland, CA. Those 120PB of experimental and simulation data have to be electronically transferred to new tape libraries at Berkeley Lab, a process that will take up to two years-even with an ESnet 400 Gb ‘superchannel’ now in place between the two sites.

Tape for archival storage makes sense for NERSC and is a key component of its storage hierarchy. Tape provides long-term, high capacity stable storage and only consumes power when reading or writing, making it a cost-effective and environmentally friendly storage solution. And the storage capacity of a tape cartridge exceeds that of more commonly known HDD drives.

“Increasing HDD drive capacity has become more and more difficult as manufacturers need to pack more data into a smaller and smaller area, whereas today’s tape drives are leveraging technology developed for disks a decade ago,” said Damian Hazen, lead, storage systems group, NERSC.

He points out that tape storage technology has receded from the public eye in part because of capacity online storage services provided by the likes of Google, Microsoft, and Amazon, and that disk does work well for those with moderate storage needs. But, unbeknownst to most users, these large storage providers also include tape in their storage strategy.

‘Moderate’ does not describe NERSC’s storage requirements. With data from simulations run on NERSC’s Cori supercomputer, and experimental and observational data coming from facilities all over the U.S. and abroad, the NERSC users send approximately 1.5PB of data each month to the archive.

“Demands on the NERSC archive grow every year,” Hazen said. “With the delivery of NERSC’s next supercomputer Perlmutter in 2020, and tighter integration of computational facilities like NERSC with local and remote experimental facilities like ALS and LCLS-II, this trend will continue.“

Environmental Challenges
To keep up with the data challenges, the NERSC storage group continuously refreshes the technology used in the archive. But in relocating the archive to the environmentally efficient Shyh Wang Hall, there was an additional challenge. The environmental characteristics of the new energy-efficient building meant that NERSC needed to deal with more substantial changes in temperature and humidity in the computer room. This wasn’t good news for tape, which requires a tightly controlled operating environment, and meant that the libraries in Oakland could not just be picked up and moved to Berkeley Lab. New technology emerged at just the right time in the form of an environmentally isolated tape library, which uses built-in environmental controls to maintain an ideal internal environment for the tapes. NERSC deployed two full-sized, environmentally self-contained libraries last fall. Manufactured by IBM corp., the NERSC libraries are currently the largest of this technology.

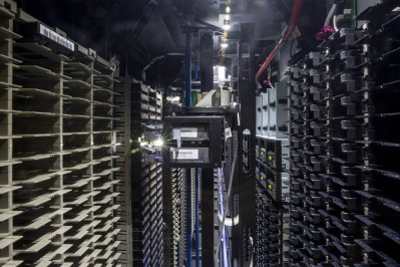

NERSC’s new environmentally self-contained tape libraries
use  specialized robot to retrieve archival data tapes.
(Image: Peter DaSilva)

“The new libraries solved two problems: the environmental problem, which allowed us to put the tape library right on the computer room floor, and increasing capacity to keep up with growth as we move forward,” said Wayne Hurlbert, staff engineer, storage systems group, NERSC.

Tape cartridge capacity doubles roughly every two to three years, with 20TB cartridges available as of December 2018.

The newer tape cartridges have three times the capacity of the old, and the archive libraries can store a petabyte per square foot. With the new system in place, data from the tape drives in Oakland is now streaming over to the tape archive libraries in the Shyh Wang Hall computer room via the 400Gb link that ESnet built three years ago to connect the two data centers together. It was used to transfer file systems between the two sites without any disruption to users. As with the file system move, the archive data transfer will be largely transparent to users.

Even with all of this in place, it will still take about two years to move 43 years’ worth of NERSC data. Several factors contribute to this lengthy copy operation, including the extreme amount of data to be moved and the need to balance user access to the archive.

“We’re very cautious about this,” Hurlbert said. “We need to preserve this data; it’s not infrequent for researchers to need to go back to their data sets, often to use modern techniques to reanalyze. The archive allows us to safeguard irreplaceable data generated over decades; the data represents millions of dollars of investment in computational hardware and immense time, effort, and scientific results from researchers around the world.“

NERSC and ESnet are DOE Office of Science user facilities.

About NERSC and Berkeley Lab
The NERSC is a U.S. Department of Energy Office of Science User Facility that serves as the primary HPC center for scientific research sponsored by the Office of Science. Located at Lawrence Berkeley National Laboratory, the NERSC Center serves more than 7,000 scientists at national laboratories and universities researching a range of problems in combustion, climate modeling, fusion energy, materials science, physics, chemistry, computational biology, and other disciplines. Berkeley Lab is a DOE national laboratory located in Berkeley, CA. It conducts unclassified scientific research and is managed by the University of California for the U.S. DOE Office of Science.
