Qnap TR-004 4-Bay Hardware RAID Storage Expansion Device for PC and NAS

Qnap Systems, Inc. launched the TR-004, a 4-bay hardware RAID storage expansion device that can be attached to PC or NAS via USB 3.0 Type-C.

The multipurpose TR-004 can be used to add storage space to a company’s NAS, and can also serve as hardware-based RAID storage for PCs and NAS. It offers cross-platform file sharing and flexibility for users, acting as a storage expansion option.

Click to enlarge

The TR-004 supports individual, JBOD and RAID-0/1/5/10 storage configurations. The firm’s NAS users can use the TR-004 with their NAS, including setting RAID parameters and creating a storage pool by using the ‘Storage and Snapshots app’ within QTS.

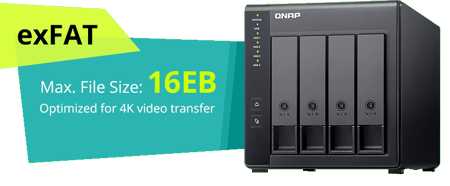

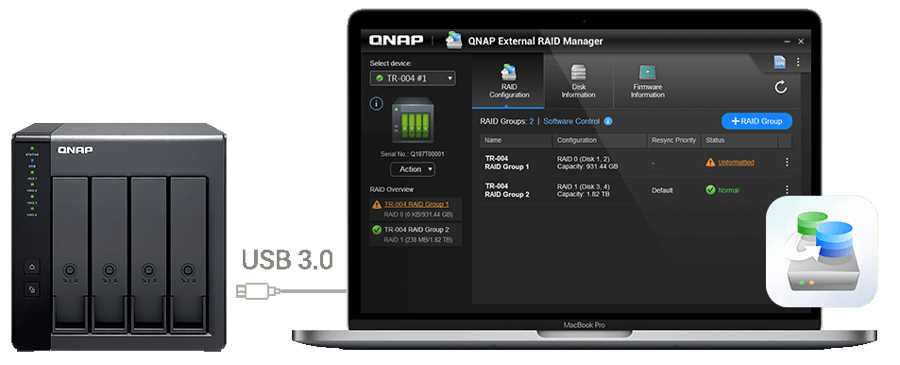

Alternatively, it can be used as an external storage device of the NAS. It can also be used with computers to facilitate file sharing and exchange, and supports the exFAT file system. Computer users with limited storage upgrade options can also use it as an expansion unit, and a specialized the company’s External RAID Manager utility (Windows/macOS) can help them view disk health, change RAID configurations, check logs, and update the firmware of the TR-004.

Jason Hsu, product manager, Qnap, said: “The TR-004 is a new option for NAS and DAS expansion, with a single device being available in two realms. While existing QNAP NAS users can add storage space to their NAS with the TR-004, PC users can purchase the device, acquire a NAS at a later time, and keep using their TR-004 for maximum cost efficiency.“

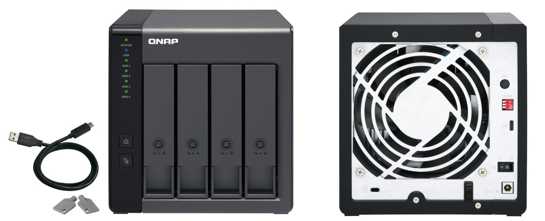

A DIP switch on the rear of the TR-004 can switch the disk configuration of the device. There are also status indicators, a one touch copy button and an eject button to make operations more intuitive. When the host PC/NAS goes to sleep, shuts down, or is disconnected, the TR-004 will go into the sleep mode and save energy.

Compatible Qnap NAS models and usage scenarios.

The TR-004 is available.

Click to enlarge

Resources: Video
