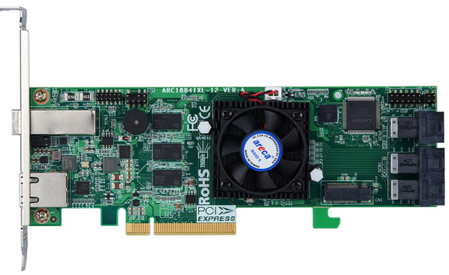

Areca ARC-1884ixl 12Gb/s PCIe 3.0 SAS RAID Adapters

Featured with 8/12 internal + 4 external 12Gb SAS ports in low-profile form factor

Areca Technology Corporation announced that its family ARC-1884ixl 12Gb/s PCIe 3.0 SAS RAID adapters have featured with 8~12 internal and four external 12Gb/s SAS ports in a low-profile form factor.

The ARC-1884ixl adapter default supports 2GB on-board memory. Those adapters are for 1U/2U servers.

Features:

  • 8/12 internal ports (2/3xSFF8643) + four external ports (SFF8644)

  • Low-profile card with both low-profile and full height mounting brackets

  • RJ45 LAN port for out-of-band configuration and monitoring

  • Low cost enough to cover internal 8~12 ports

Benefits:

  • System integrators and users can put the ARC-1884ixL-8/12 in a 2U rackmount chassis without the use of a riser card. By eliminating the use of riser card, the system will run faster, cooler, and more reliable.

ARC-1884ixl RAID adapters are based on testing and validation process; leverage ARC-1882/1883 series controller compatibility with OSs, motherboards, applications and device drivers. They provide all of the necessary capabilities for applications to achieve the maximum possible availability, reliability, scalability and performance.

Leveraging the company existed RAID adapter’s technology, the adapters support the same customers familiar API, CLI, McBIOS manager or browser-based McRAID manager management tool to simplify the creation, monitoring and maintenance of storage configurations.
