Supermicro Debuts Simply Double Storage Architecture Optimized for Cloud, HPC, Data Center, Enterprise

Super Micro Computer, Inc. highlights its 2U Simply Double storage architecture at CeBIT 2016 in Hannover Germany.

Click to enlarge

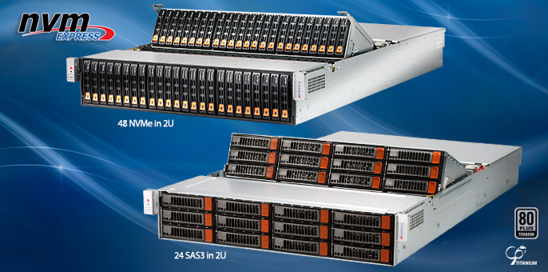

The Simply Double SuperStorage solutions double the density and capacity in a 2U form factor. The Simply Double architecture achieves this by incorporating a second set of easy access, external hot-swap drive bays, arrayed in a patented Riser Bay and offer maximum server performance with support for dual Xeon E5-2600 v3 and future processors, up to 1.5TB of DDR4-2133MHz ECC memory and flexible SIOM networking options supporting 1G/10G/25G/40G up to 2x100G ports for IB/ Intel Omni-Path Architecture, and Ethernet connectivity. The Simply Double SuperStorage systems join company’s server, storage and networking products to offer hyper-scale deployments the broadest range of infrastructure platforms for accelerating growth in new digital economies.

Additional CeBIT exhibits include 1U/2U/4U SuperServers supporting 4-12x NVIDIA Tesla GPUs/Intel Xeon Phi Coprocessors, 1U/2U Ultra SuperServers, 2U TwinPro, 4U FatTwin, 4U 36/60/90 hot-swap SuperStorage systems, 3U MicroCloud, 3U/6U MicroBlade, 7U SuperBlade, and edge-to-cloud IoT gateway, embedded servers. Solutions also include Supermicro 1U 10x NVMe with SQL Server for OLTP workloads and 4U 90-bay JBOD Lustre on ZFS high-performance parallel file system for HPC and big data.

“Supermicro highlights our latest Simply Double storage architecture at CeBIT this year, bringing new innovations in performance, density, capacity and efficiency to Cloud, HPC, Data Center and Enterprise business,” said Charles Liang, president and CEO, Supermicro. “These new systems expand the advantages of our server, storage, networking and management solutions delivering maximized performance and scalability for any scale application. Combined with our global service and support alongside evolving software-defined solution initiatives we offer exactly the best infrastructure building blocks that greatly accelerate growth and ROI.“

Exhibit highlights:

New 2U Simply Double 48×2.5” NVMe SuperStorage Server (SSG-2028R-NR48N) – supports dual Xeon processor E5-2600 v3, up to 1.5TB ECC DDR4, up to 2133MHz in 24x DIMMs, 2x PCIe 3.0×16, 1xPCIe 3.0 x8, SIOM AoC flexible networking options 2 or 4 port 1GbE, 2 or 4 port 10G SFP+, 48x 2.5″ Hot-swap NVMe bays, 2x rear 2.5” hot-swap drive bays, IPMI 2.0 server remote management, 1,600W Redundant Titanium Level (96%) Power Supplies
New 2U Simply Double 48×2.5” HDD/SSD SuperStorage Server (SSG-2028R-E1CR48N) – supports dual Xeon processor E5-2600 v3, up to 1.5TB ECC DDR4, up to 2,133MHz in 24x DIMMs, 2xPCIe 3.0×16, 1xPCIe 3.0×8, SIOM AoC flexible networking options 2 or 4 port 1GbE, 2 or 4 port 10G SFP+, 48x 2.5″ Hot-swap SAS3/SATA3 drive bays, 2x rear 2.5″ hot-swap drive bays, IPMI 2.0 server remote management, 1,600W Redundant Titanium Level (96%) Power Supplies
New 2U Simply Double 24×3.5” HDD SuperStorage Server (SSG-6028R-E1CR24N) – supports dual Xeon processor E5-2600 v3, up to 1.5TB ECC DDR4, up to 2,133MHz in 24xDIMMs, 2xPCIe 3.0 x16, 1xPCIe 3.0 x8, SIOM AoC flexible networking options 2 or 4 port 1GbE, 2 or 4 port 10G SFP+, 24x 3.5″ hot-swap SAS3/SATA3 drive bays, IPMI 2.0 server remote management, 1,600W Redundant Titanium Level (96%) Power Supplies

1U 10x 2.5” NVMe SuperServer (SYS-1028U-TN10RT+) – supports dual Xeon processor E5-2600 v3, up to 1.5TB ECC DDR4, up to 2133MHz in 24xDIMMs, 3xPCIe 3.0 x8 slots (2x FH 10.5″ L, 1x LP), 2x10GBase-T ports, 10x 2.5″ hot-swap drive bays: 6xNVMe ports (NVMe from CPU 1); 4xNVMe/SAS3 hybrid ports for optional SAS3/SATA3 (NVMe from CPU 2), 1,000W Redundant Titanium Level (96%) Power Supplies – Solution Demo: OLTP Workload Demo: Microsoft SQL Server, improves OLTP workloads while cutting licensing costs in half
New 2U Ultra 24x 2.5” NVMe SuperServer (SYS-2028U-TN24R4T+) – supports dual Xeon processor E5-2600 v3, up to 1.5TB ECC DDR4, up to 2,133MHz in 24xDIMMs, 2xPCIe 3.0 x16 (2x FH, 10.5″ L), 1xPCIe 3.0 x8 (LP) slots, 4x10GBase-T ports, 24xNVMe hot-swap 2.5″ hot-swap NVMe bays (4 hybrid ports – optional SAS3 supported via AOC); 2x rear SATA3 hot-swap 2.5″ drive bays, IPMI 2.0 server remote management, 1,600W Redundant Titanium Level (96%) Power Supplies

New 1U Ultra SuperServer (SYS-1028U-E1CRTP+) – supports dual Xeon processor E5-2600 v3, up to 1.5TB ECC DDR4, up to 2,133MHz in 24xDIMMs, 2xPCI-E 3.0 x16 slots (FH, 10.5″ L), 2xPCIe 3.0 x8 slots (LP, 1 internal), 2x10G SFP+ and 2xGbE LAN ports, 10x hot-swap 2.5″ drive bays: 10xSAS3/SATA3 ports via Expander and AOC: AOC-S3108L-H8iR, AOC-S3008L-L8e, AOC-S3008L-L8i, IPMI 2.0 server remote management, 1,600W Redundant Titanium Level (96%) Power Supplies
2U WIO SuperServer (SYS-6028R-WTRT) – supports dual Xeon processor E5-2600 v3 family, 8×3.5″ Hot-swap SAS/SATA HDD bays, up to 1TB ECC DDR4, up to 2,133MHz ; 16xDIMMs, 4xPCIe 3.0 x8 (2 FHFL, 2 FHHL), 2xPCIe 3.0 (Low-profile) slots, dual port 10GBase-T, Integrated IPMI 2.0 and KVM with Dedicated LAN, 2xSuperDOM, 1xVGA, 2xCOM, TPM 1.2, 6xUSB 3.0 (4 rear, 2 via header), 740W Redundant Power Supplies
New 2U TwinPro² SuperServer (SYS-2028TP-HC0FR) – four hot-pluggable systems (nodes) each node supporting dual Xeon processor E5-2600 v3, up to 1TB ECC LRDIMM, 512GB ECC RDIMM, up to 2,133MHz in 16x DIMMs, 1xPCI-E 3.0 x 16 LP and 1 PCIe X8 LP, supports flexible SIOM networking module, 6x 2.5″ hot-swap SAS/SATA HDD bays, mini-mSATA (half size) support, 2,000W Redundant Titanium Level (96%) Power Supplies
New 1U TwinPro SuperServer (SYS-1028TP-DC0R) – two hot-pluggable systems (nodes) each support dual Xeon processor E5-2600 v3 family, up to 1TB ECC LRDIMM, 512GB ECC RDIMM, up to 2,133MHz in 16xDIMMs; 1xPCIe 3.0 x16 Low-profile slot and 1x “0 slot”, dual port GbE LAN, 4×2.5″ hot-swap SAS3 drive bays, 1,000W Redundant Titanium Level (96%) Power Supplies
4U FatTwin SuperServer (SYS-F618R2-RTPTN+) – 8 hot-plug system nodes each supporting dual socket Xeon processor E5-2600 v3, up to 1TB ECC DDR4, up to 2,133MHz in 16x DIMMs, 1xPCIe 3.0 x16 (LP), 1xPCIe 3.0 x8 (Micro Low Profile), 2x10GBase-T, 6×2.5″ hot-swap SATA or 4×2.5″ hot-swap SATA + 2xSATA/NVMe hybrid, 2xInternal NVMe ports (PCIe 3.0 x4), 2,000W Redundant Titanium Level (96%) power supplies
4U FatTwin GPU SuperServer (SYS-F628G3-FT+) – 4 hot-plug system nodes with front I/O each supporting dual Xeon processor E5-2600 v3 family, up to 1TB ECC DDR4, up to 2,133MHz in 16xDIMMs, 3xPCIe 3.0 x16 slots (support 3x double-width NVIDIA Tesla GPU/Xeon Phi cards), 2xPCIe3.0 x8 slots, front I/O ports 2xGbE LAN, 2 USB 3.0 and 1 VGA connector, 2×3.5″ hot-swap SATA3 HDDs, 2,000W Redundant Titanium Level (96%) power supplies
4U 4-Way (SYS-4048B-TRFT/-TR4FT) – supports quad Xeon processor E7-8800 v3/E7-4800 v3 family (18-Core) with QPI up to 9.6GT/s, 96xDIMM slots support up to 6TB of DDR3 or DDR4 ECC RDIMMs/LRDIMMs, 11xPCIe 3.0 slots (4 x16, 7 x8), up to 24×2.5″ hot-swap SAS3/SATA3 HDD/SSD (selected RAID/HBA cards) 48×2.5″ hot-swap HDD/SSD optional, dual-port 10GBase-T LAN controller (via AOM), onboard BMC supports IPMI 2.0 + Virtual Media over LAN (via AOM), default HDD connection: 2 SATA3 + 4 SATA2 ports via C602J onboard, up to 4x 1620W hot-swap (N+1) Redundant Platinum Level power supplies
1U 4x GPU SuperServer (SYS-1028GQ-TR/-TRT) – Dual Xeon processor E5-2600 v3, up to 1TB ECC, up to DDR4 2,133MHz; in 16x DIMMs, 4x PCIe 3.0 x16 slots (4x NVIDIA Tesla NVIDIA GRID, Xeon Phi coprocessor cards optional), 2xPCIe 3.0 x8 (in x16) LP slot, dual port GbE LAN (-TR SKU), dual 10GBase-T (-TRT SKU), 2×2.5″ hot-swap drive bays, 2×2.5″ internal drive bays, efficient airflow heavy duty counter-rotating fans with air shroud & optimal fan speed control, 2,000W Redundant Platinum Level (94%+) Power Supplies.
2U 4x GPU SuperServer (SYS-2028GR-TR) – Dual Xeon processor E5-2600 v3, up to 1TB ECC, up to DDR4 2133MHz; in 16x DIMMs, 4x PCIe 3.0 x16 slots (4x NVIDIA Tesla, NVIDIA GRID, Xeon Phi coprocessor cards optional), 1x PCIe 3.0×8 (inx16) LP slot, dual port GbE LAN, 10×2.5″ hot-swap drive bays, 2,000W Redundant Platinum Level (94%+) Power Supplies.
4U 8x GPU (SYS-4028GR-TR/-TRT) – supports 8x NVIDIA Tesla M40 GPUs, dual Xeon processor E5-2600 v3 (up to 160W), up to 1.5TB ECC DDR4, 2,133MHz in 24DIMM slots, 24×2.5″ hot-swap SAS2/SATA3 drive bays, 8xPCIe 3.0 x16 slots (double-width), 2xPCIe 3.0 x8 (in x16) slots, 1 PCIe 2.0 x4 (in x16) slot, dual 1GbE/10GBase-T (-TRT), and four redundant 1,600W Platinum Level (94%+) power supplies
4U/Tower 4x GPU (SYS-7048GR-TR) – supports 4x NVIDIA Tesla M40 GPUs, dual Xeon processor E5-2600 v3 family, 8x 3.5″ hot-swap SATA HDD Bays, 3×5.25″ peripheral drive bays, 1×3.5″ fixed drive bay, 16xDIMM slots; up to 1TB DDR4 2133MHz reg. ECC memory, 4xPCIe 3.0 x16 (4 GPU cards opt.), 2xPCI-E 3.0 x8 (1 in x16), and 1x PCIe 2.0 x4 (in x8) slot, 2xGbE, 1xVideo, 2xCOM/Serial, 5xUSB 3.0, 4xUSB 2.0, built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port, redundant 2,000W Titanium Level (96%+) power supplies
New 4U 60-Bay SuperStorage Server (SSG-6048R-E1CR60N) – supports dual Xeon processor E5-2600 v3, up to 1.5TBECC LRDIMM in 24xDIMMs, 2xPCIe 3.0 (x16 + 1x PCIe 3.0 (x8) expansion options, H/W RAID (0, 1, 5, 6, 10, 50, 60) with optional SuperCap, SIOM flexible networking options, IPMI 2.0, front 3.5” LCD status display and redundant 2,000W Titanium Level high-efficiency (96%+) power supplies
New 4U 90-Bay SuperChassis JBOD (CSE-946ED-R2KJBOD) – 90×3.5” top-load, hot-swap SAS 3.0 12Gb/s HDD JBOD – Tool-less design features dual hot-swappable expander modules for high-availability, 4xmini SAS HD ports per module, and redundant 1,000W (2+2) Titanium Level high-efficiency (96%) digital power supplies – Solution demo: Lustre on ZFS high-performance parallel file system for HPC and Big Data

4U 36x 3.5” HDD/SSD SuperStorage Server (SSG-6048R-E1CR36N) – supports dual Xeon processor E5-2600 v3, up to 1.5TBECC LRDIMM in 24xDIMMs, 2xPCIe 3.0 x16, 3xPCI-E 3.0 x8, 1xPCIe 2.0 x4 (in x8) Slot 3 and 4 occupied by controller and JBOD expansion port, quad 10GBase-T ports, 36×3.5″ hot-swap SAS3/SATA3 drive bays (24 front + 12 rear); 4×2.5″ internal fixed SAS3 drive bays, 1280W Redundant Platinum Level (94%) Power Supplies

3U MicroCloud – High-density, energy efficient modular MicroCloud is available in various configurations to support a range of applications in cloud computing, web hosting, VDI, data analytics, HPC, video streaming and CDN applications.
- 8-Node (SYS-5039MS-H8TRF) – 8xhot-pluggable sleds, 1x node per sled each supporting a single Xeon processor E3-1200 v5, 6th Gen Core i3, Pentium or Celeron processor, 2x 3.5″ or 2 x 2.5” with optional kit hot-swap SATA3/SAS drive bays; SAS requires RAID/HBA AOC, 1xPCIe 3.0 x8 LP slot, up to 64GB DDR4 2133MHz ECC UDIMM in 4x DIMMs slots, 2xGbE LAN ports via Intel i350, 1x dedicated LAN for IPMI Remote Management. Chassis supports 4x8cm heavy duty fans with optimal cooling zone, 1,600W Redundant Titanium Level high-efficiency (96%) digital power supplies.
- 12-Node (SYS-5039MS-H12TRF) – 12x hot-pluggable sleds, 1x node per sled each supporting a single Xeon processor E3-1200 v5, 6th Gen Core i3, Pentium or Celeron processor, 2×3.5 or 4×2.5″ SATA3 HDDs, 2xNVMe support out of 4×2.5” SATA3 HDD; Up to 64GB DDR4 2133MHz VLP ECC UDIMM in 4 DIMM slots, 2xGbE LAN ports via Intel i350, 1xcentralized IPMI remote management, chassis supports 4x 9cm heavy duty hot-swap fans with optimal cooling zone, 2,000W redundant titanium level high-efficiency (96%) digital power supplies.
- 24-Node (SYS-5038ML-H24TRF) – 12x hot-pluggable sleds, 2x nodes per sled each supporting a single Xeon processor E3-1200 v3/v4 or I4^th/5^th Gen Core family processor (up to 80W TDP), 2×2.5″ SATA3 (6Gb/s) HDDs or 4×2.5″ Slim SSD with optional kit, up to 32GB DDR3 VLP ECC UDIMM 1600MHz support in 4 sockets, 4xGbE LAN (Intel i350), 1xshared LAN for IPMI remote management per sled, shared 1xVGA, 1xCOM ports, 2x USB 2.0 (with KVM dongle), chassis supports 4x9cm heavy duty hot-swap fans with optimal cooling zone, 2,000W redundant Platinum Level high-efficiency (95%) digital power supplies.
3U/6U MicroBlade – designed for best advantages over many industry standard architectures with all-in-one total solution, ultra high density, ultra low power consumption, best performance per watt per dollar, high scalability, high scalability and best ease of service. The MicroBlade enclosure can incorporate one Chassis Management Module, and up to 2×10/2.5/1GbE SDN switches in 3U or up to two chassis management modules, and up to 4 SDN switches in 6U for efficient, high-bandwidth communications. It can incorporate up to 4 or 8 redundant (N+1 or N+N) 2,000W/1,600W Titanium/Platinum Level high-efficiency (96%/95%) power supplies with cooling fans.
- MBI-6219G-T – 56 Xeon processor E3-1200 v5 nodes per 6U (up to 392 computing nodes per 42U rack) or 28 nodes per 3U.
- MBI-6218G-T41X – 56 Xeon processor D-1541 (Broadwell-DE) nodes per 6U (up to 392 computing nodes per 42U rack) or 28 nodes per 3U.
- MBI-6118G-T41X – 28 Xeon processor D-1541 (Broadwell-DE) nodes per 6U (up to 196 computing nodes per 42U rack) or 14 nodes per 3U.
- MBI-6128R-T2/-T2X – 28 Xeon processor E5-2600v3 DP nodes per 6U (up to 196 computing nodes per 42U rack) or 14 nodes per 3U with 1GbE and 10GbE options.
- MBI-6118D-T2H/-T4H – 28 Xeon processor E3-1200 v4 and 4th Gen. Core i3 nodes per 6U (up to 196 computing nodes per 42U rack) or 14 nodes per 3U.
- MBI-6118D-T2/-T4 – 28 Xeon E3-1200 v3 and 4th Gen. Core i3 nodes per 6U (up to 196 computing nodes per 42U rack) or 14 nodes per 3U.
- MBI-6418A-T7H/-T5H – 112 nodes Atom processor C2000 per 6U (up to 784 computing nodes per 42U rack).
7U SuperBlade – advantages include maximum density, affordability, reduced management costs, lower power consumption, optimal ROI, and high scalability. Modules support latest Xeon processor E5-2600 v3 and are available in 20 GPUs/Xeon Phi Blade; 2x NVIDIA Tesla, NVIDIA M40, M60, K1, K2 or Xeon Phi coprocessor cards per blade server (SBI-7128RG-X/-F/-F2), 3xNVIDIA Tesla GPU per blade server (SBI-7127RG3), Data Center Blade (SBI-7428R-C3N, SBI-7428R-T3N), TwinBlade (SBI-7228R-T2F/-T2F2/-T2X), Storage Blade with NVMe support (SBI-7128R-C6N), Chassis feature industry’s only hot-swap NVMe solutions, hot-plug switch modules supporting InfiniBand FDR/QDR, FC/FCoE, 1/10 GbE, redundant chassis management module (CMM), Platinum Level 3,000W/2,500W (N+N or N+1 redundant) hot-plug power supplies.
1U BOX PC (CSE-101i) – Slim, space saving for Mini-ITX form factor (7.68″ x 7.68″ x 2.68”), 1x 2.5″ internal HDD support, VESA/Wall-mount ready
New 1U Short-Depth Embedded SuperServer (SYS-5018D-FN8T) – Space-efficient, compact embedded server for cloud/virtualization/NAS applications in SOHO, corporate environments. Supports Xeon processor D-1518 (4-Core, 35W), 1×3.5″ or 4×2.5″ SATA 3 drive bays;1xPCIe 3.0 x8 slot, M.2 PCIe 3.0 x4, M Key 2242/2280/22110, mini-PCIe with mSATA support, up to 128GB ECC RDIMM DDR4 2133MHz or 64GB ECC/non-ECC UDIMM in 4 sockets, dual 10G SFP+, six 1GbE LAN, DOM power connector, 200W low-noise power supply w/ PFC
1U Embedded SuperServer (SYS-1019S-M2) – 1U Rear I/O server optimized for Military, Industrial Automation, Medical application servers. Supports 6th Gen Core i7, i5, i3, Pentium, Celeron processors, Q170 Chipset
Compact Mini-Tower (SYS-5029S-TN2) – Embedded, Compact Mini Tower, supports Intel 6th Gen. Core i7/i5/i3 series, Celeron and Pentium processors. 4×3.5″ Hot-swap drive bays, 2×2.5″ fixed drive bays, support total of five hard drives, 1xPCIe 3.0 x16 slot, 1xmini-PCIe with mSATA support, 1xM.2 (M key 2242/2280 PCI-E 3.0 x4), up to 32GB Unbuffered Non-ECC UDIMM DDR4 2133MHz; 2xDIMMs, 2xGbE LAN, 3xindependent displays HDMI, DP (Display Port), DVI-I, 250W Flex ATX Multi-output power supply
Compact Embedded Mini-ITX Box (SYS-E200-9B) – compact embedded mini-ITX Box, supports Pentium processor N3700, Quad-Core (6W, 4C); Socket FCBGA 1170, 1×2.5″ internal drive bay, up to 8GB 1,600MHz DDR3 Non-ECC SO-DIMM in 2 socket, 1xSuperDOM, 1xmSATA slot, 1xTPM 1.2 header, 4xGbE, 1xHDMI, 1xdisplay port, 1xVGA, 1xserial port, 1xIPMI 2.0 w/dedicated port and KVM, 2xUSB 3.0 and 2xUSB 2.0 (rear) ports, 1x4cm high performance PWM fan, 60W DC power adapter
IoT Gateway (SYS-E100-8Q) – Compact, low-power, fanless edge to cloud mesh network device. Supports 2.2W Quark X1021 SoC, 512MB DDR3 ECC memory, 1x Micro SDHC up to 32GB, 2xmini-PCIe slots, 1xZigBee module socket, TPM 1.2, 2x 10/100Mbps RJ45, operating temperature 0°C to 50°C
1U Top-of-Rack 48x Port 10/40Gb/s Network Switch (SSE-X3648S/SR) – Layer 2/3 Ethernet Switch, 48xten-GbE ports – SFP+, 6xforty-GbE ports – QSFP+, bare metal, Cumulus Linux ready
1U Top-of-Rack 48x Port 100Gb/s (SSH-C48Q) – supports the 100Gbp/s Omni-Path Architecture (OPA), 48x 100 Gb/s ports – QSFP28, optional RJ45 1G management port and USB serial console port
