Phison: PCIe Gen3x4 SSD Controller With NVMe Spec

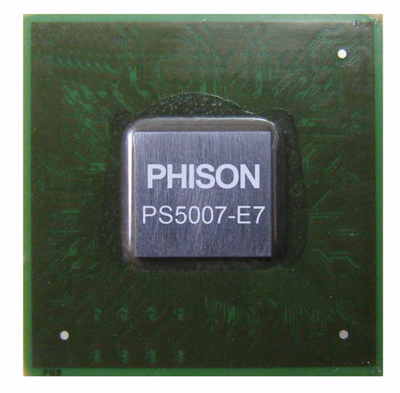

Phison Electronics Corporation announced the availability of high speed Gen3x4 NVMe SSD controller, the PS5007-E7.

With 8-channel transfer speeds and 64CE support capable of up to 4TB capacity, PS5007-E7 is a solution for the gaming and high-end PC markets, and also a choice for enterprise servers and data center applications. The PS5007-E7 will be begin shipping on October of 2015.

PS5007-E7 supports 1Znm SLC/MLC/TLC as well as the latest 3D NAND. Working with 1Z MLC, it delivers speeds over 2,600MB/s sequential read and over 1,300MB/s sequential write, with random 4K up to 350,000 IO/s read and 250,000 IO/s write performance. The controller supports up to 2TB today and will expand to 4TB in the coming future. It supports NVMe L1 sub-state with less than 5mW in L1.2 low power mode, a key requirement for next generation notebook.

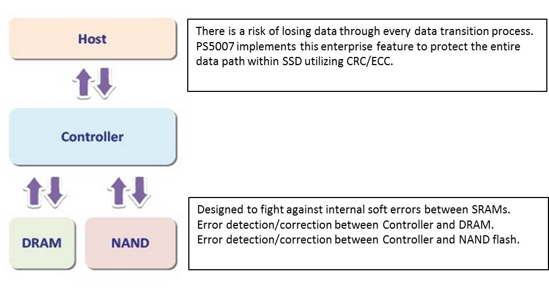

The company is a Taiwanese design-house to release a PCIe Gen3x4 NVMe controller to production. It develops hardware and firmware technology to elevate SSD performance and endurance. PS5007-E7 is built with end-to-end data path protection circuits and a SmartECC engine to ensure data integrity in high speed transfer. Utilizing firmware algorithms such as SmartFlush and an optional P-fail circuitry to prevent in-flight data loss from sudden power interruptions, as well as advanced security features compliant with TCG Opal 2.0 and TCG Enterprise standards driven with a 256b AES engine.

Features of PS5007-E7:

• PCIe Gen3x4 4GB/s bandwidth

• Compliant with PCIe Gen1(2.5Gb/s), Gen2(5Gb/s), Gen3(8Gb/s)

• Compliant with NVMe 1.2 Standard

• 28nm process

• 1Z SLC/MLC/TLC and 3D NAND support

• Up to 2TB capacity (up to 4TB in the future)

• Supports ECC with 120b/2KB BCH

• High performance

  • Sequential read: up to 2,600MB/s

  • Sequential write: up to 1,300MB/s

  • 4K Random read: up to 350,000 IO/s

  • 4K Random write: up to 250,000 IO/s

• S.M.A.R.T support, with additional Phison PCIe SSD ToolBox features

• Advanced technology

  • End-to-end data path protection

  • SmartECC RAID data protection

  • AES-256, TCG OPAL 2.0, TCG enterprise compliant (PS5007-A7 derivative)

  • P-fail protection with additional SmartFlush technology

  • Advanced read disturb management with SmartRefresh technology

  • Advanced global wear-leveling
