Supermicro Debuts SuperStorage System With 90 12Gb SAS 3.5-Inch HDDs

Super Micro Computer, Inc. announced 4U 90 x hot-swap bay SuperStorage platform alongside a range of performance server, storage and networking solutions for the broadcast media industry.

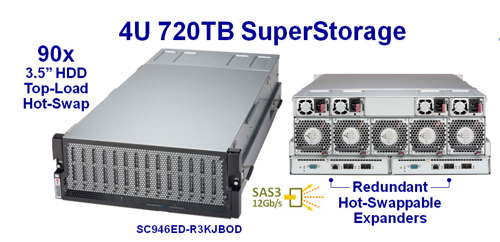

The 4U JBOD storage chassis supports up to 90x 3.5″ 8TB HDDs for 720TB of SAS3, 12Gb/s performance in a serviceable top-load hot-swap architecture. Dual hot-swap expander modules featuring 4x mini-SAS HD ports maximize throughput and failover redundancy for media streaming, nearline and archive storage applications. With 4K 60p Ultra High-Definition (UHD) hitting mainstream and 8K 120p UHD on the horizon, all aspects of broadcast media production, from capture, editing, and CG/VFX, to encoding/transcoding, streaming and archiving will drive demand for the most extreme levels of compute, storage and network performance.

“Supermicro Green Computing solutions address the most extreme digital workload challenges facing the Broadcast industry with maximum performance, density, and energy efficiency,” said Charles Liang, president and CEO, Supermicro. “Solutions such as our new 4U 90 top-load hot-swap 3.5″ HDD SuperStorage or 1U 12 x 3.5″ direct attached 10GbE storage are unrivaled in density, performance and scalability for uncompressed media. And our 1U 4x GPU systems deliver the raw compute power for visual effects, rendering and transcoding. As the entertainment industry shifts to UHD media, Supermicro has exactly the best compute, storage, and network solutions available for studios to achieve lowest TCO through optimum performance per watt, per square foot, per dollar.“

Click to enlarge

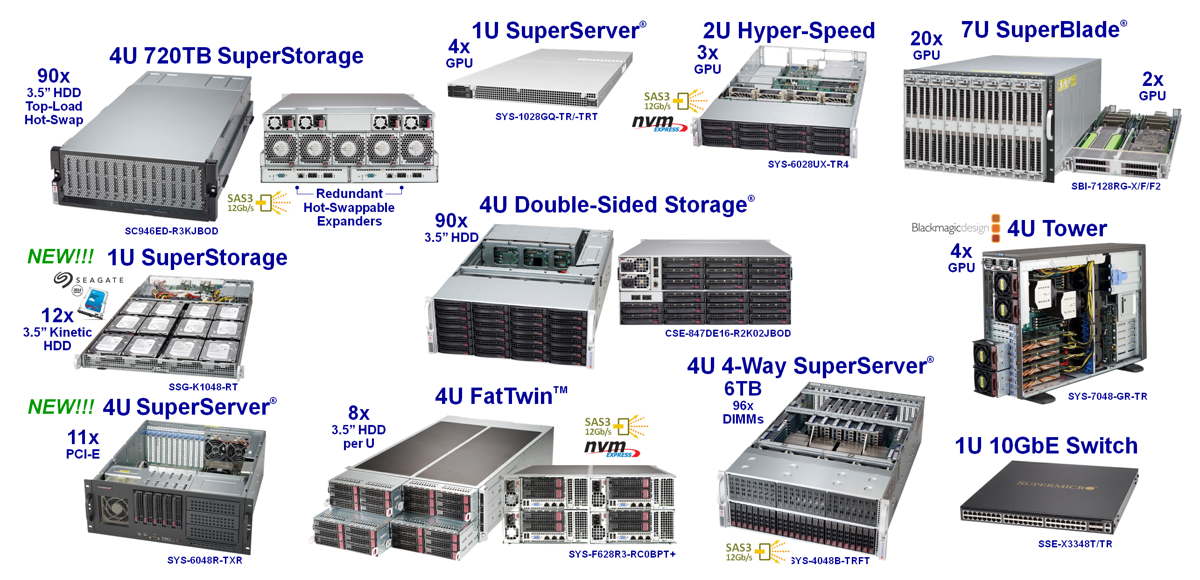

Highlights include Blackmagic Design, DaVinci Resolve running on the Blackmagic Design certified, GPU accelerated SYS-7048GR-TR, and range of server, blade, storage and networking solutions optimized for digital content creation, production, management, and distribution:

4U 90x 3.5″ Top-Load, Hot-Swap HDD/SSD SAS3 12Gb/s JBOD (SC946ED-R3KJBOD) – The tool-less design features dual hot-swappable expander modules, 4 x miniSAS HD ports per module, redundant 1,000W (3+1) Titanium Level high-efficiency (96%) digital power supplies
1U Kinetic SuperStorage (SSG-K1048-RT), (datasheet) Optimized for key/value pair object storage – 48TB capacity featuring 12 x 3.5″ top load drive bays populated with dual port Seagate Kinetic drives (5,900rpm), redundant dual 10GBase-T (4 ports), layer-2 switching to integrated 4TB Ethernet attached drives, dedicated IPMI/I2C maagement port, 400W redundant SuperCompact short-depth Gold Level power supplies
3U 11x-PCI-E SuperServer (SYS-6048R-TXR) – Dual Xeon processor E5-2600 v3, up to 1TB Reg. ECC DDR4 up to 2,133MHz in 16x DIMMs, 10 x PCI-E 3.0 (x8), 1 x PCI-E 2.0 (x4 in x8), 2 x GbE ports, 5 x hot-swap 3.5″ drives bays (default 5 x SATA3 ports), 3 x 5.25” peripheral drive bays, 1 x slim DVD bay (optional), redundant 600W Platinum Level high-efficiency (95%) digital power supplies
4U 4-Way 96 x DIMM SuperServer (SYS-4048B-TRFT) – Quad Xeon processor E7-8800 v2 / E7-4800 v2 family (15-Core), up to 6TB DDR3 1600MHz ECC RDIMMs and LRDIMMs in 96 x DIMM slots, up to 11 x PCI-E 3.0 slots (4 x 16, 7 x 8). 2 x 10GbE LAN, 1 x Dedicated LAN for IPMI Remote Management, 24 x 2.5″ hot-swap SAS3/SATA3 HDD or SSD (selected RAID/HBA cards); 48 x 2.5″ hot-swap HDD/SSD optional, 1,620W redundant (N+1) high-efficiency (94%+) Platinum Level digital power supplies
4U 90 x 3.5″ Hot-Swap HDD/SSDs in 45x bay Double-Sided Storage (CSE-847DE16-R2K02JBOD) – Single Expander Board and Front/Rear Backplane Boards support SAS2 or SATA3 HDDs with 6Gb/s throughput, 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, HA or high redundancy requirements, 1 x IPMI port for Remote System Power on/off, wake-on-LAN and system monitoring, Support NTP for time synchronization and RTC battery backup, 2,000W redundant (1+1) Platinum Level high-efficiency (95%) digital power supplies
1U 4x GPU SuperServer (SYS-1028GQ-TR/-TRT) – supports 4 x GPU accelerators with innovative non GPU-preheat architecture, dual Intel Xeon processor E5-2600 v3, up to 1TB DDR4 2133MHz ECC LRDIMM, 512GB ECC RDIMM in 16 x DIMM slots, 2 hot-swap and 2 static 2.5″ drive bays, and intelligent, cold redundant 2000W Titanium Level high-efficiency (96%) digital power supplies
4U/Tower 4+1 GPU (SYS-7048-GR-TR) – supports 4+1 x GPU accelerators, NVIDIA GeForce SLI, dual Xeon processor E5-2600 v3, up to 1TB ECC DDR4 2,133MHz in 16x DIMM slots, 8 x 3.5″ hot-swap, 3 x fixed 5.25″ and 1 x fixed 3.5″ drive bays, 4x heavy duty fans, 2 x external exhaust fans, and 2 x active heat sink with optimal fan speed control, redundant 2,000W Titanium Level high efficiency (96%) digital power supply, passive GPU kit (MCP-320-74701-0N-KIT) and optional Thunderbolt 2.0 AOC
2U Hyper-Speed SuperServer (SYS-6028UX-TR4) – Supports 3 x GPU accelerators, dual Xeon processor E5-2600 v3, up to 1TB ECC, up to DDR4 2,133MHz in 16 DIMM slots, 12 hot-swap 3.5″ drive bays (SATA3 default, 12 x SAS3 option; 4 NVMe option via AOC), 3 PCI-E 3.0 x 16 slots (FH, 10.5″ L), 3 PCI-E 3.0 x 8 slots (1 in x 16 FH 10.5″ L, 1 LP, 1 Internal LP), four 1GbE ports, and redundant 1,000W Titanium Level (96%) digital power supplies
4U 4-Node, 8x 3.5″ Hot-Swap HDD per U FatTwin (SYS-F628R3-RC0BPT+) – 4 x Nodes each supporting dual Xeon processor E5-2600 v3, up to 1TB ECC DDR4 2133MHz in 16xDIMM slots, 1 x PCI-E 3.0 x16 (LP), 1 x PCI-E 3.0 x8 (Micro Low Profile), 2 x 10GBase-T ports, built-in server management tool (IPMI 2.0, KVM/media over dedicated LAN port), 8 x 3.5″ hot-swap SAS3 or 6 x SAS3 + 2 x NVMe HDD bays (per U), 1,280W redundant Platinum Level high-efficiency (95%) digital power supplies
7U SuperBlade (SBI-7128RG-X/-F/-F2) – Up to 120x GPU + 60x CPU per 42U Rack! Supports up to 2 x K40M, K80, NVIDIA GRID K1/K2 GPU accelerators, dual Xeon processor E5-2600 v3, up to 512GB ECC DDR4 2,133MHz in 8 DIMM slots, 2 x SATA DOM or 1 x SSD; or up to 8 x 2.5″ SATA3 HDDs + 1 x 2.5″ SSD, onboard 10GbE (-X), single FDR IB port (-F), dual FDR IB port (-F2)
1U Top-of-Rack, Layer 3, 10GbE Switch (SSE-X3348T/-TR) – 48 x 10GBase-T ports (RJ45) w/Energy Efficient Ethernet (IEEE 802.3az), 4 x 40GbE ports (QSFP), 2 x 1GbE ports (RJ45), Out-of-band RS-232 Management port.
